Technical Specifications
| Parameter | Description |
|---|---|

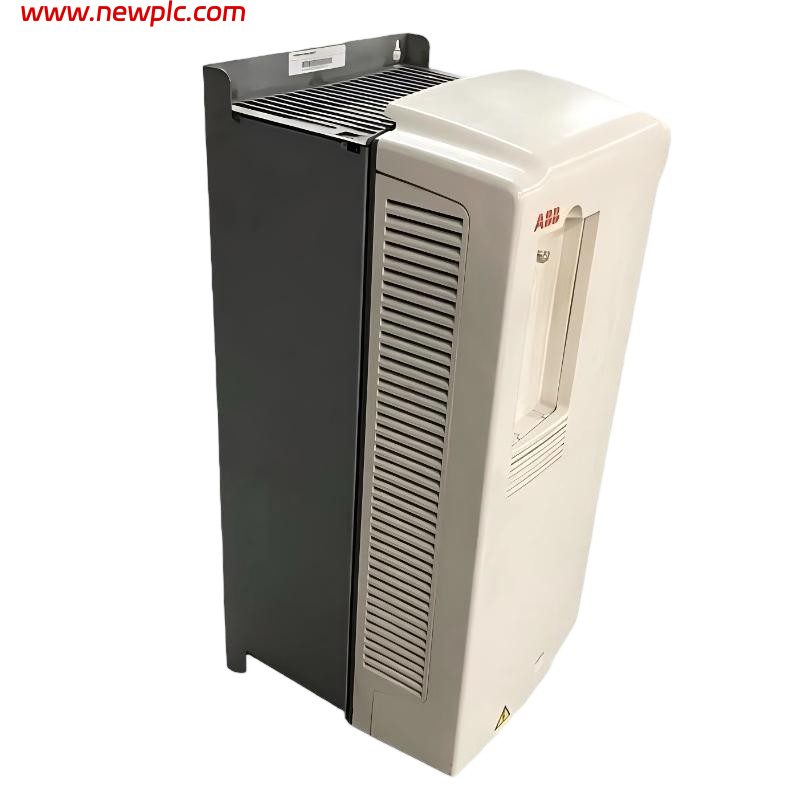

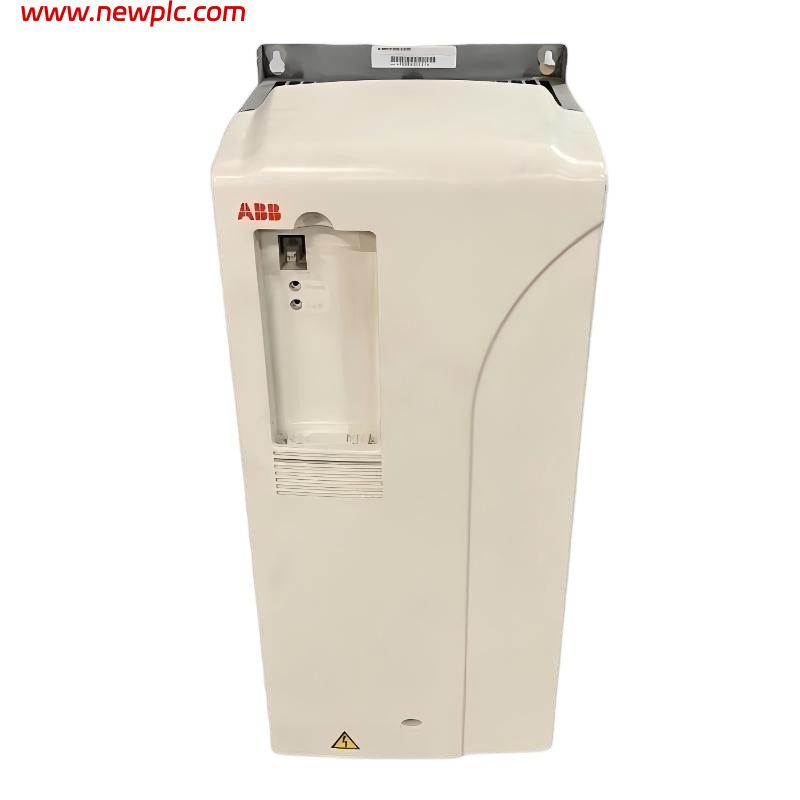

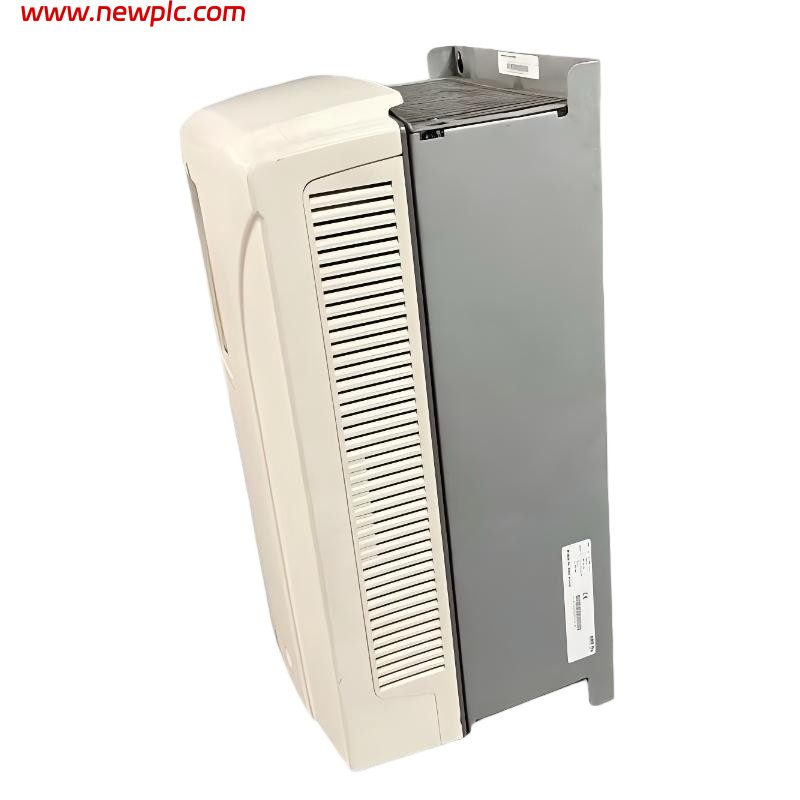

| Product Name | ABB ACS800 Industrial Drive |
| Part Number | ACS800-01-0060-3 |
| Product ID | 64576496 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS800 |
| Function | High-performance AC drive for precise speed and torque control of industrial motors |
| Application | Pumps, Fans, Conveyors, Extruders, Compressors, Mixers, Hoists, Cranes, Material Handling, Paper, Metal, Chemical, and Process Industries |
| Rated Motor Power | 55 kW (75 HP) |
| Rated Output Current | 103 A |
| Maximum Output Current | 129 A |
| Light-Overload Motor Power | 45 kW (60 HP) |
| Light-Overload Output Current | 94 A |
| Heavy-Duty Motor Power | 37 kW (50 HP) |
| Heavy-Duty Output Current | 69 A |

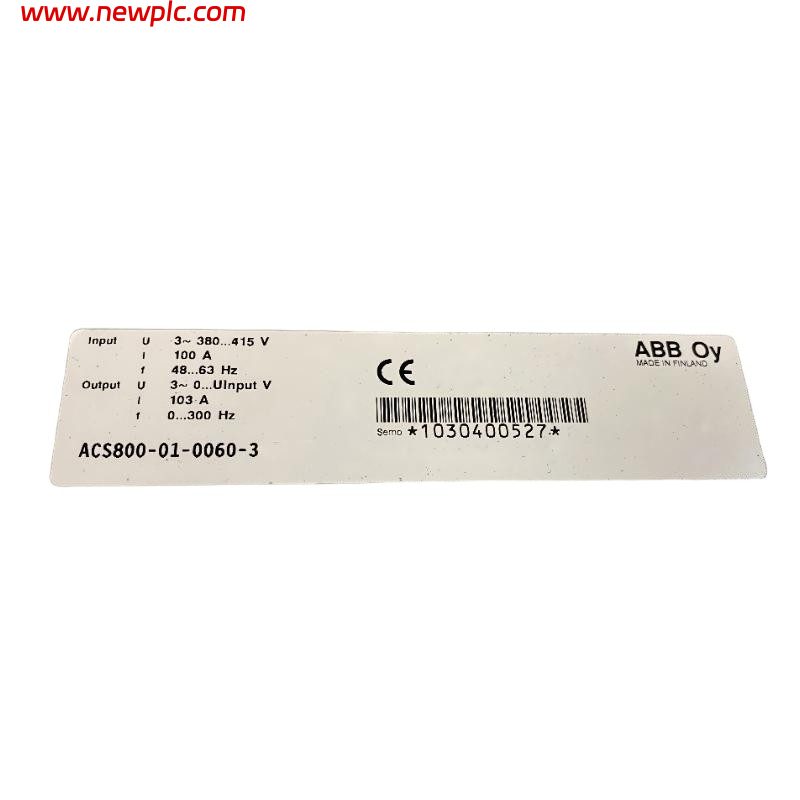

| Input Voltage | 3 × 380–415 VAC |
| Input Frequency | 48–63 Hz |
| Output Frequency | 0–300 Hz |
| Motor Control Method | Direct Torque Control (DTC) |
| Communication | Optional fieldbus modules including PROFIBUS DP, DeviceNet, CANopen, Modbus RTU, and Ethernet adapters |
| Built-in Features | DTC motor control, programmable I/O, PID control, adaptive programming, EMC filter, brake chopper option |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Air-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R5 |
| Operating Temperature | -15°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, IEC 61800 |
| Dimensions | 739 × 265 × 286 mm (H × W × D) |
| Weight | 34 kg |
FAQ
FAQ
Q1: What is the ABB ACS800-01-0060-3?
A1: The ABB ACS800-01-0060-3 is a wall-mounted industrial AC variable frequency drive designed for demanding motor control applications. It uses ABB’s Direct Torque Control (DTC) technology to provide high-performance speed and torque regulation for three-phase AC motors.
Q2: What does Product ID 64576496 represent?
A2: 64576496 is the official ABB Product ID for the ACS800-01-0060-3 drive. It identifies the 380–415 VAC, 55 kW model in the ACS800 industrial drive series.
Q3: What motor size can this drive control?
A3: Under normal-duty operation, the drive is rated for 55 kW (75 HP) motors with a continuous output current of 103 A. It supports 45 kW (60 HP) motors at 94 A in light-overload mode and 37 kW (50 HP) motors at 69 A in heavy-duty applications.
Q4: What input power supply is required?
A4: The drive operates from a three-phase 380–415 VAC power supply with an input frequency range of 48–63 Hz.
Q5: Which motor control technology does it use?
A5: The ACS800 series features ABB’s Direct Torque Control (DTC) technology, delivering fast torque response, excellent speed accuracy, and high dynamic performance without requiring an encoder in many applications.
Q6: What communication options are available?
A6: The drive supports optional communication modules for PROFIBUS DP, DeviceNet, CANopen, Modbus RTU, and Ethernet-based industrial networks, enabling seamless integration with PLC and DCS systems.
Q7: What are the physical dimensions of the drive?
A7: The ACS800-01-0060-3 uses the R5 frame and measures 739 × 265 × 286 mm (H × W × D).
Q8: What is the weight of the drive?
A8: The drive has a net weight of 34 kg, making it suitable for wall-mounted industrial installations.
