Technical Specifications
| Parameter | Description |
|---|---|

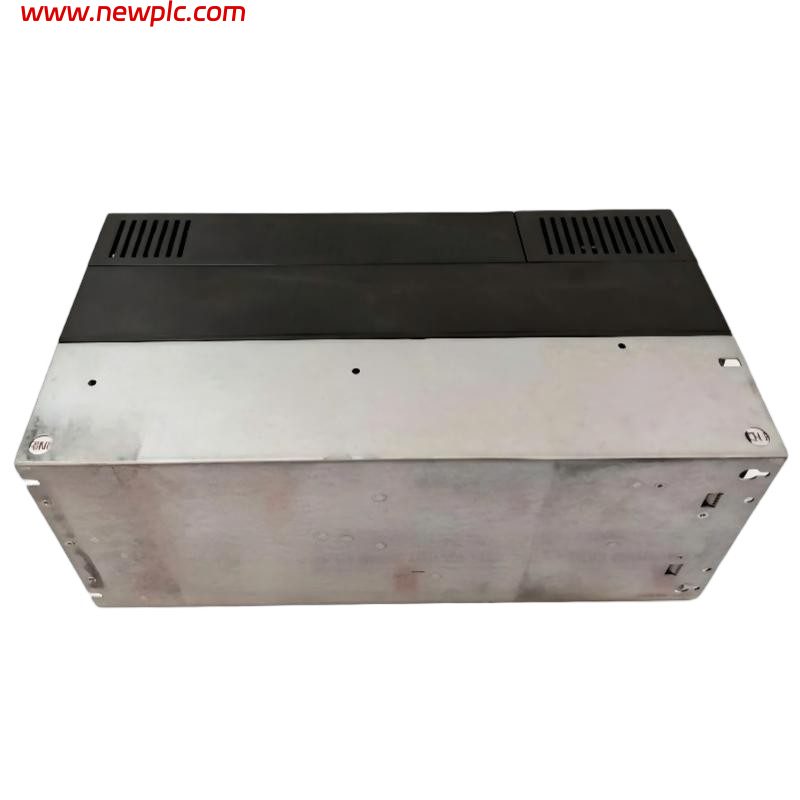

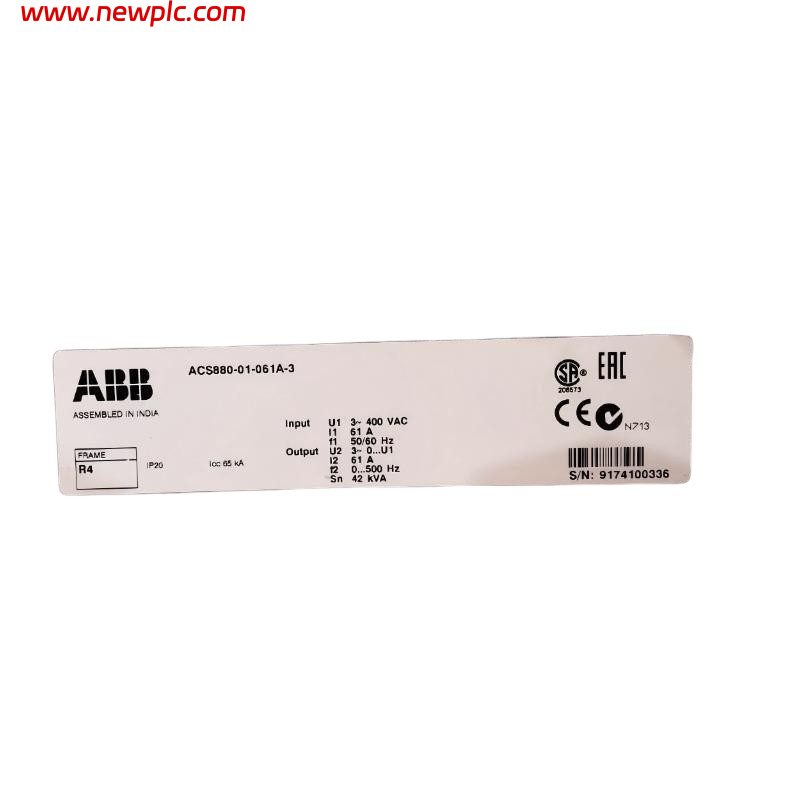

| Product Name | ABB ACS880 Industrial Drive |
| Part Number | ACS880-01-061A-3 |
| Product ID | 3ABD00032627-D |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS880 |
| Function | High-performance industrial AC drive for precise speed and torque control of induction, permanent magnet, and synchronous reluctance motors |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Cranes, Hoists, Material Handling, Marine, Mining, Metals, Chemical, Oil & Gas, Food & Beverage, Water Treatment, and General Industrial Automation |
| Rated Motor Power (Normal Duty) | 30 kW (40 HP) |
| Rated Output Current (Normal Duty) | 61 A |
| Light-Overload Output Current | 58 A |
| Heavy-Duty Output Current | 45 A |
| Heavy-Duty Motor Power | 22 kW (30 HP) |
| Input Voltage | 3 × 380–415 VAC |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Direct Torque Control (DTC) and Scalar (V/Hz) Control |
| Built-in Communication | USB, RS-485 (Modbus RTU) |
| Optional Communication | PROFINET IO, EtherNet/IP, PROFIBUS DP, CANopen, DeviceNet, Modbus TCP |
| Built-in Features | Safe Torque Off (STO), Integrated Choke, PID Controller, Energy Optimizer, Adaptive Programming, Optional Brake Chopper and EMC Filter |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Air-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R4 |
| Operating Temperature | -15°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 576 × 203 × 274 mm (H × W × D) |
| Weight | 18.5 kg |
FAQ
FAQ
Q1: What is the ABB ACS880-01-061A-3?
A1: The ABB ACS880-01-061A-3 is a wall-mounted low-voltage AC industrial drive designed for demanding motor control applications. It provides precise speed and torque control for induction, permanent magnet, and synchronous reluctance motors using ABB Direct Torque Control (DTC) technology.
Q2: What does Product ID 3ABD00032627-D represent?
A2: 3ABD00032627-D is the ABB Product ID for the ACS880-01-061A-3. It identifies the 380–415 VAC, 30 kW, 61 A industrial drive model in the ACS880 series.
Q3: What motor size can this drive control?
A3: The drive is rated for 30 kW (40 HP) motors in normal-duty operation with a continuous output current of 61 A. For heavy-duty applications, it supports 22 kW (30 HP) motors with an output current of 45 A.
Q4: What input power supply is required?
A4: The ACS880-01-061A-3 requires a three-phase 380–415 VAC power supply with an input frequency range of 47.5–63 Hz.
Q5: Which motor control technology does it use?
A5: The drive uses ABB’s Direct Torque Control (DTC) technology and supports Scalar (V/Hz) control, providing fast torque response, accurate speed regulation, and stable motor operation.
Q6: What communication options are available?
A6: The ACS880-01-061A-3 includes standard USB and RS-485 interfaces and supports optional industrial communication modules such as PROFINET IO, EtherNet/IP, PROFIBUS DP, CANopen, DeviceNet, and Modbus TCP.
Q7: What are the physical dimensions of the drive?
A7: The ACS880-01-061A-3 uses the R4 frame and measures approximately 576 × 203 × 274 mm (H × W × D).
Q8: What is the weight of the drive?
A8: The ACS880-01-061A-3 has a net weight of approximately 18.5 kg.
