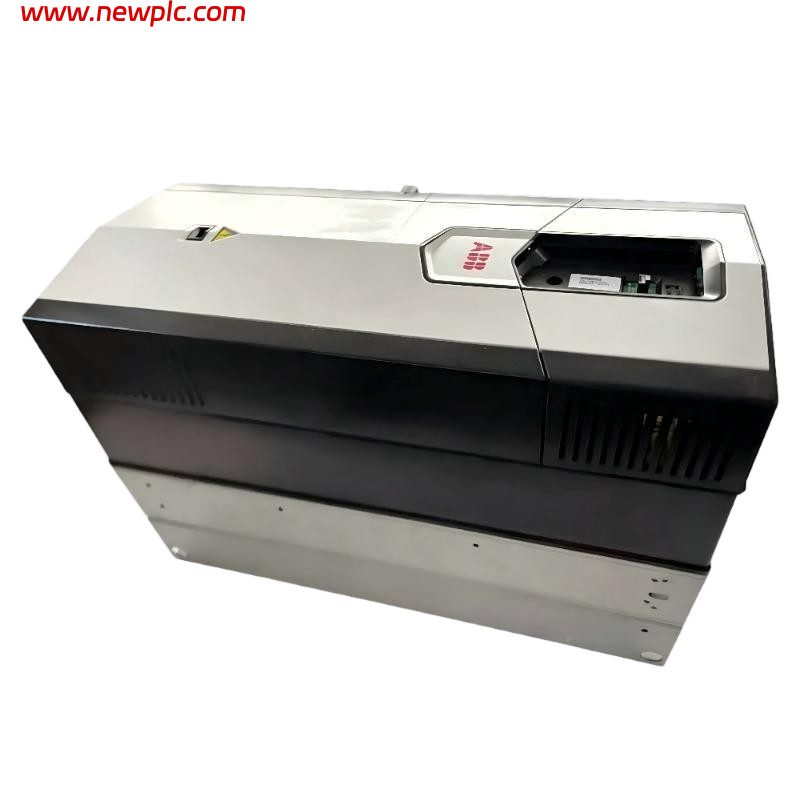

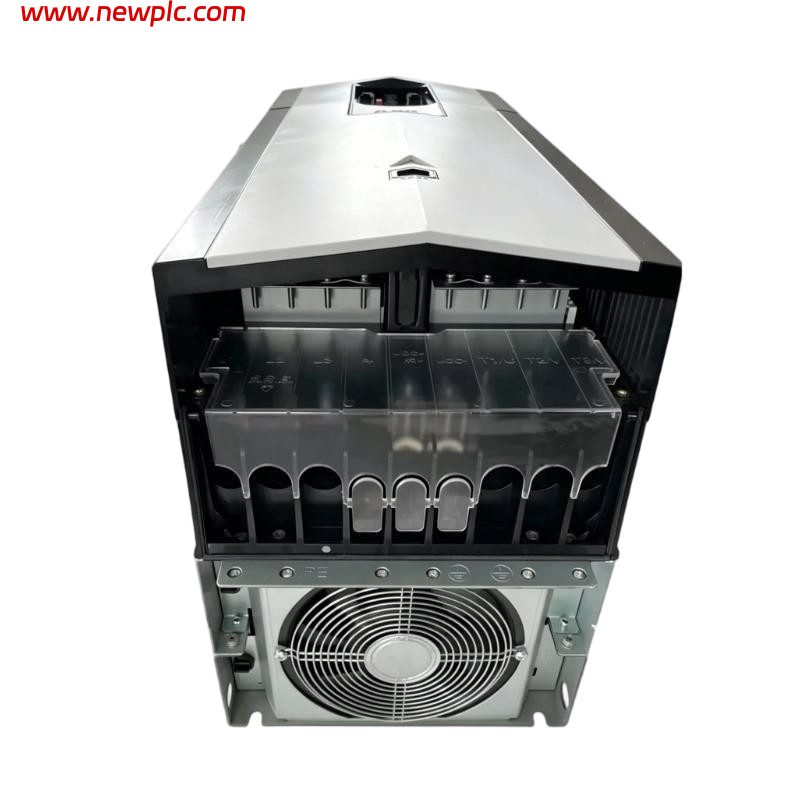

ABB ACS880-01-145A-3 3ABD00035951-D Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS880-01-145A-3?
A1: The ABB ACS880-01-145A-3 is a low-voltage industrial wall-mounted AC drive designed for demanding motor control applications. It provides precise speed and torque control for induction, permanent magnet, and synchronous reluctance motors using ABB Direct Torque Control (DTC) technology.

Q2: What does Product ID 3ABD00035951-D represent?
A2: 3ABD00035951-D is the ABB Product ID for the ACS880-01-145A-3, identifying the 380–415 VAC, 75 kW, 145 A ACS880 industrial drive model.

Q3: What motor size can this drive control?
A3: The drive is rated for 75 kW (100 HP) motors in normal-duty operation with a continuous output current of 145 A. For heavy-duty applications, it supports 55 kW (75 HP) motors with an output current of 105 A.

Q4: What input power supply is required?
A4: The ACS880-01-145A-3 requires a three-phase 380–415 VAC power supply with an input frequency range of 47.5–63 Hz.

Q5: Which motor control technology does it use?
A5: The drive uses ABB’s Direct Torque Control (DTC) technology and supports Scalar (V/Hz) control, providing fast torque response, accurate speed regulation, and stable motor performance for industrial applications.

Q6: What communication options are available?
A6: The ACS880-01-145A-3 supports industrial communication through built-in USB and RS-485 interfaces, with optional fieldbus adapters including PROFINET IO, EtherNet/IP, PROFIBUS DP, CANopen, DeviceNet, and Modbus TCP.

Q7: What are the physical dimensions of the drive?
A7: The ACS880-01-145A-3 uses the R6 frame and measures approximately 727 × 252 × 357 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The ACS880-01-145A-3 has a net weight of approximately 42.2 kg.

3ABD00035951-D ABB ACS880-01-145A-3
