Technical Specifications
| Parameter | Description |
|---|---|

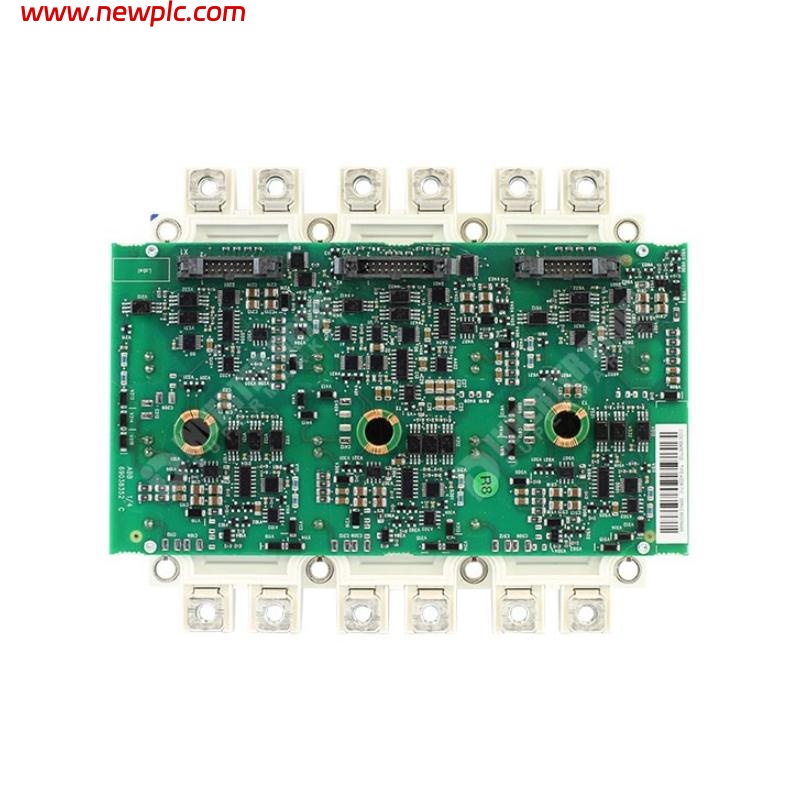

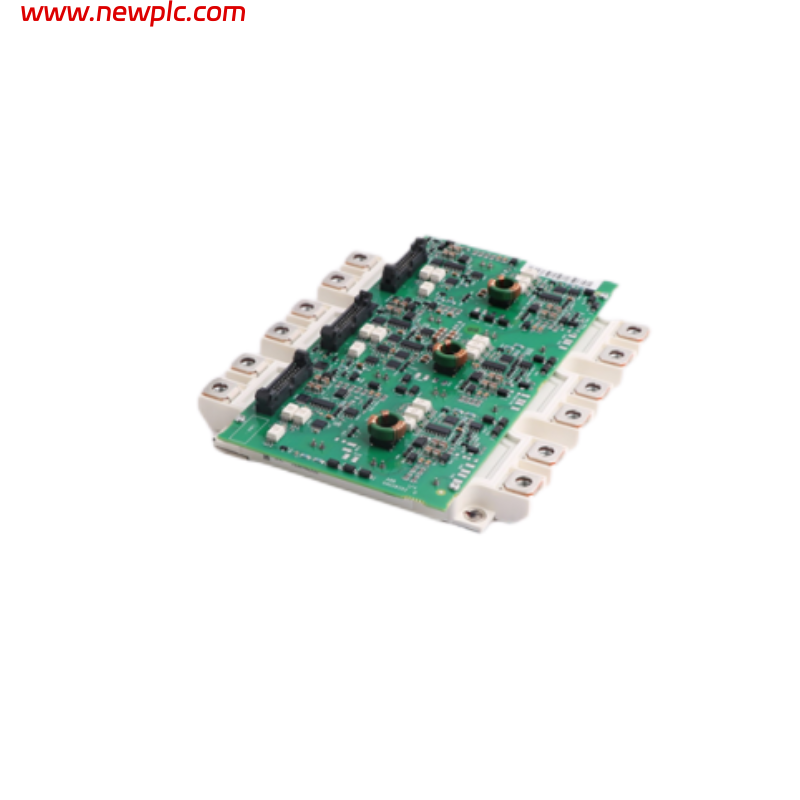

| Product Model | AGDR-71C |
| Part Number | 68439990A |
| Manufacturer | ABB |
| Product Type | Inverter Driver Board / IGBT Driver Module |
| Compatible Series | ACS800 Industrial Drive Systems |
| Function | Provides gate drive control for IGBT modules and manages motor drive switching operations |
| Input Voltage | 48 V DC |
| Output Current | Up to 50 A |
| Communication Interface | RS-485, Modbus-RTU |
| Protection Class | IP20 |
| Operating Temperature | -20 °C to +50 °C |
| Frequency Range | 40 – 60 Hz |
| Dimensions | 225 × 127 × 85 mm |
| Weight | 1.06 kg |
| Application | Industrial motor control, pump systems, conveyors, and automation equipment |
FAQ
FAQ
Q1. What is the main function of the AGDR-71C module?
It acts as an IGBT driver board that controls switching signals in industrial drive systems.
Q2. Which systems commonly use the AGDR-71C board?
It is mainly used in ACS800 series drives manufactured by ABB.
Q3. What type of voltage does the module require?
The board typically operates with a 48 V DC control power supply.
Q4. What industrial applications use this driver board?
It is widely used in pumps, conveyors, HVAC systems, machine tools, and automated production equipment.
Q5. What communication interfaces are supported?
The module supports RS-485 communication and Modbus-RTU protocols.
Q6. What is the operating temperature range of the AGDR-71C?
The typical working range is from −20 °C to +50 °C.
Q7. What are the dimensions of the AGDR-71C module?
The approximate size of the board is 225 × 127 × 85 mm.
Q8. What is the weight of the AGDR-71C board?
The module weighs approximately 1.06 kg.
