Technical Specifications
| Parameter | Description |
|---|---|

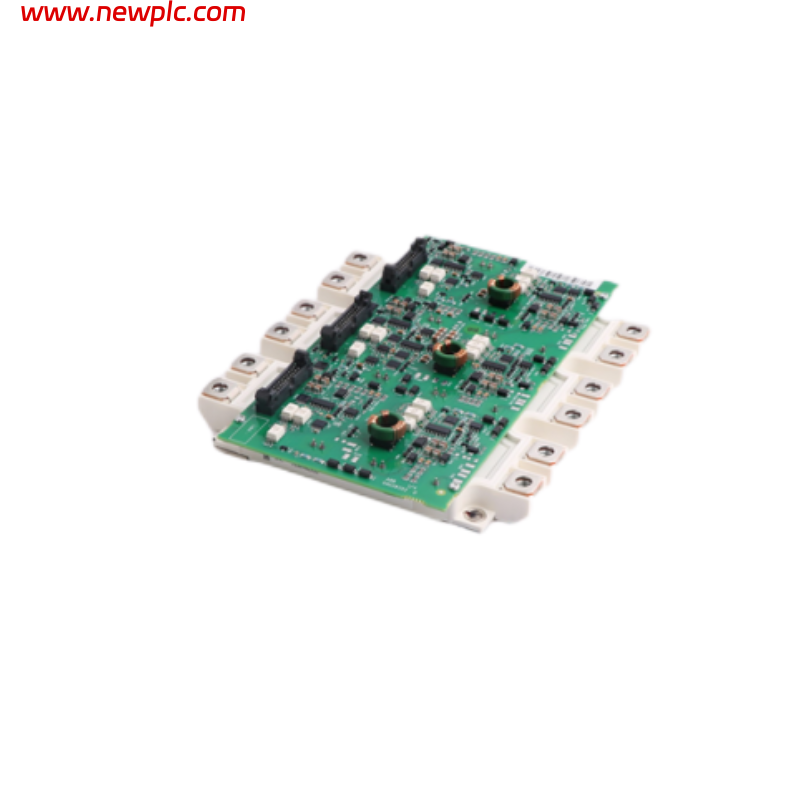

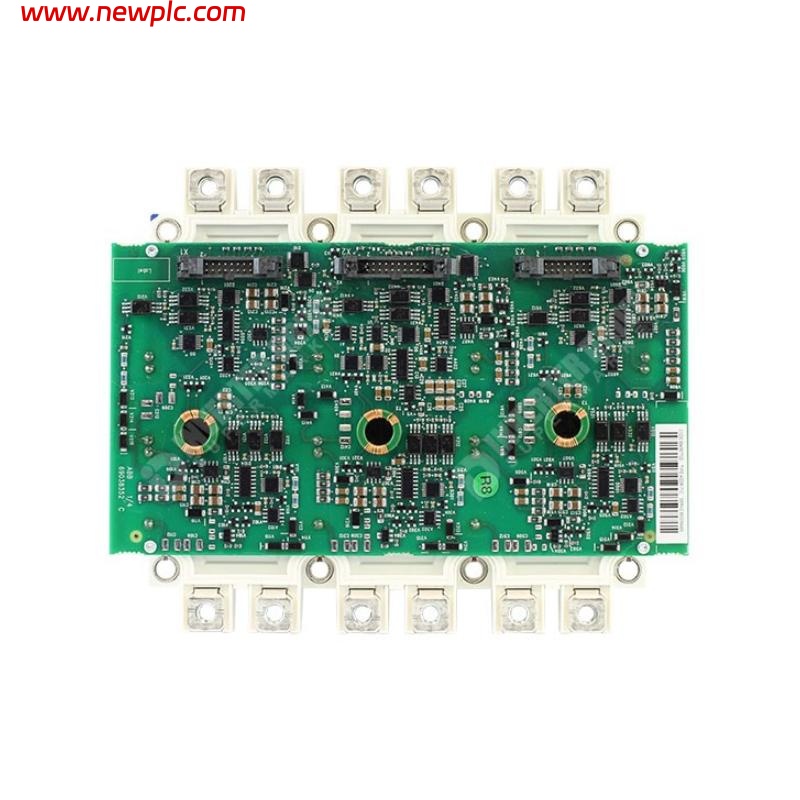

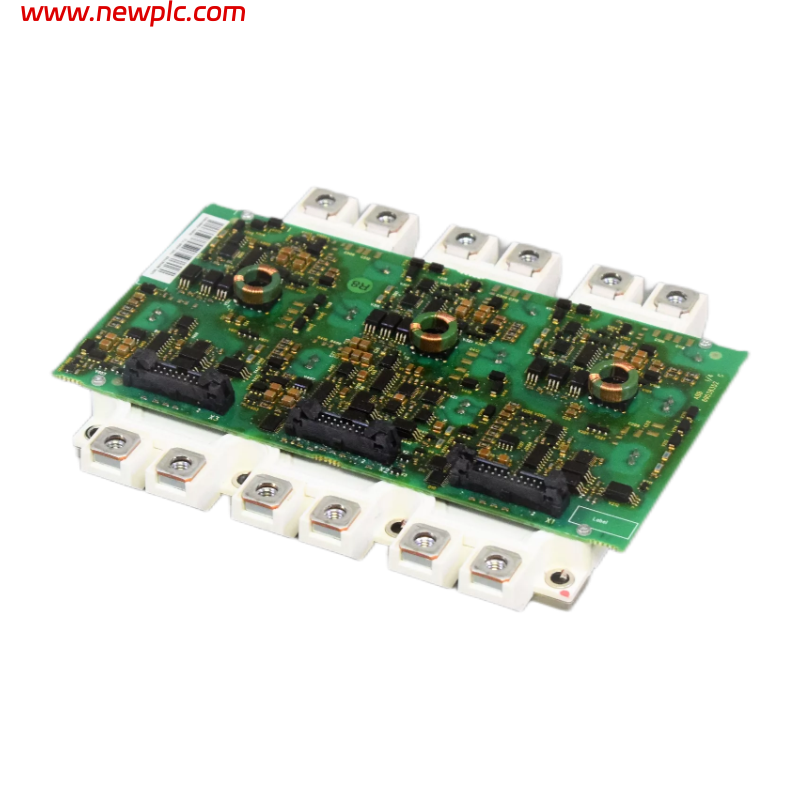

| Product Model | AGDR-71C |
| Part Number | 68444217 |
| Manufacturer | ABB |
| Type Designation | FS450R17KE3 / AGDR-71C |
| Product Type | IGBT Driver Board with Power Module |
| Application | Industrial variable-frequency drives and high-power motor control systems |
| Rated Voltage | Up to 1700 V |
| Rated Current | 450 A |
| Power Module Type | ECONO+ IGBT module |
| Compatible Systems | ACS800 industrial drive systems |
| Operating Temperature | −20 °C to +50 °C |
| Protection Class | IP20 |
| Dimensions | 220 × 160 × 80 mm |
| Weight | 1 kg |
| Function | Provides gate drive control and power switching management for high-power inverter systems |
FAQ
FAQ
Q1. What is the main function of the AGDR-71C module?
The module controls IGBT switching and power conversion inside industrial drive systems.
Q2. Which systems commonly use the AGDR-71C module?
It is mainly used in ACS800 industrial drives manufactured by ABB.
Q3. What are the voltage and current ratings of this module?
The module supports approximately 1700 V and 450 A power ratings.
Q4. What type of component is integrated in this module?
It includes an ECONO+ IGBT power module combined with a driver board.
Q5. What industrial applications typically use this module?
It is used in heavy industrial equipment such as pumps, compressors, conveyors, and large motor drives.
Q6. What is the operating temperature range?
The typical operating range is from −20 °C to +50 °C.
Q7. What are the dimensions of the AGDR-71C module?
The approximate size is 220 × 160 × 80 mm.
Q8. What is the weight of the AGDR-71C module?
The module weighs approximately 1 kg.
