Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1SAP250300R0001 |

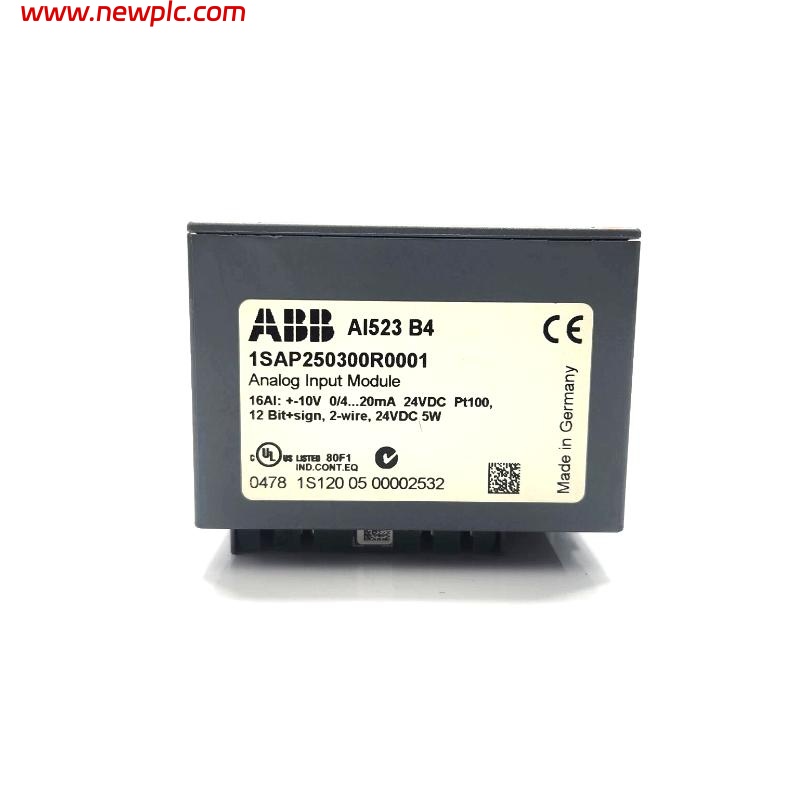

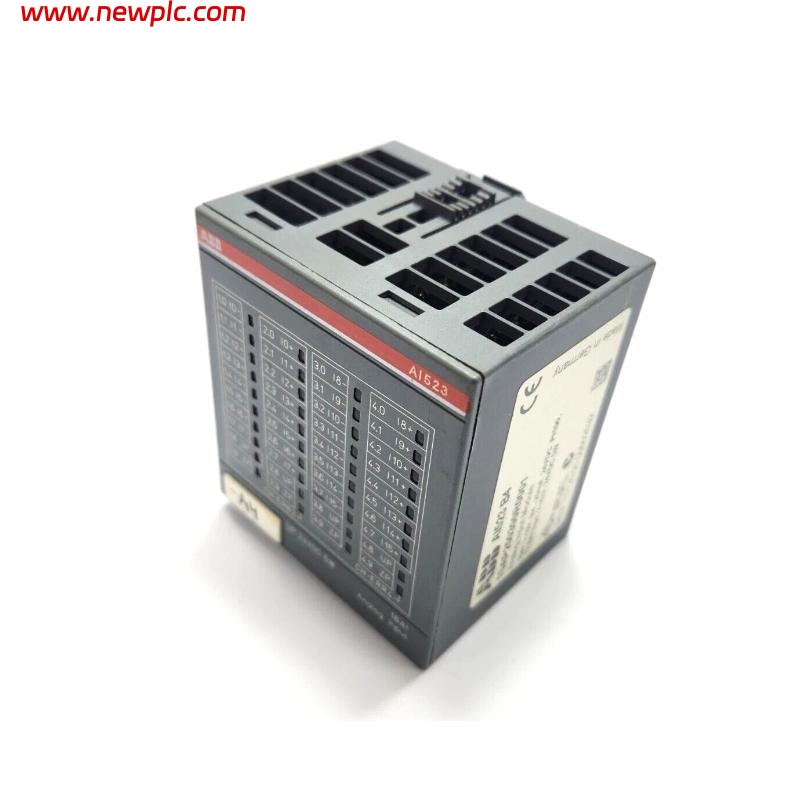

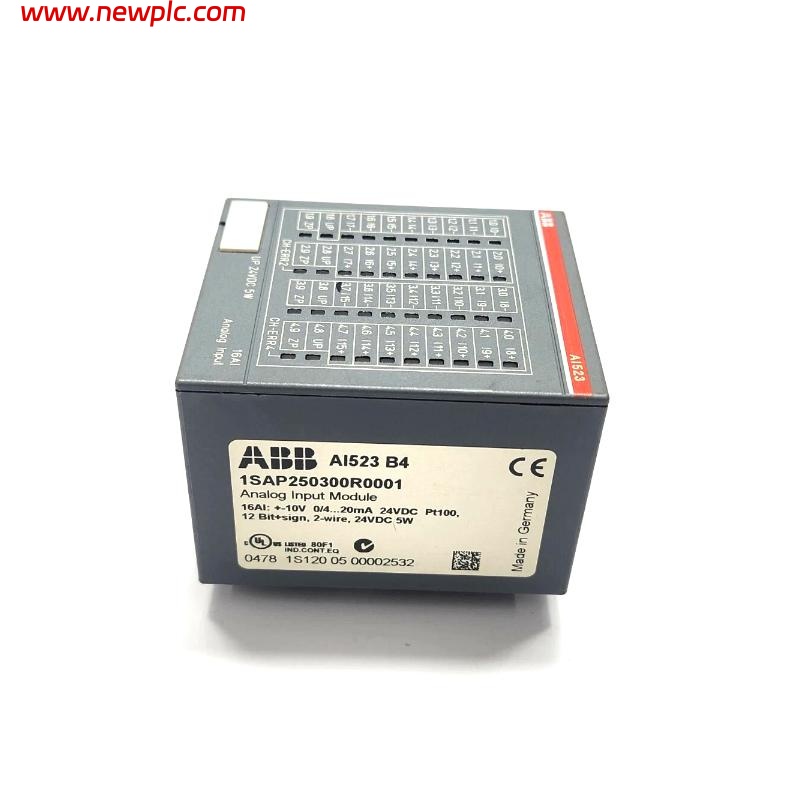

| Product Name | ABB AI523 Analog Input Module |
| Input Channels | 16 |
| Input Types | Voltage (0…10V, -10…+10V), Current (0/4…20mA), Pt100/1000, Ni1000 |
| Resolution | 12 bits (including sign where applicable) |
| Conversion Time | 2 ms (for 16 inputs), 1 s with Pt/Ni |
| Typical Conversion Error | ±0.5% of full scale at 25°C |
| Maximum Conversion Error | ±1% of full scale (0–60°C) |
| Input Impedance (Voltage) | > 100 kΩ |
| Input Impedance (Current) | ≈ 330 Ω |
| Input Filter Time Constant | 100 μs |
| Galvanic Isolation | Yes (per module) |
| Power Supply Rated Voltage | 24 V DC |
| Power Consumption | ~0.15 A + output loads |
| Inrush Current | 0.050 A²s |
| Max Cable Length | 100 m |
| Mounting Position | Horizontal or vertical (with derating) |
| Cooling | Natural convection |
| Degree of Protection | IP20 |
| Operating Temperature | 0°C to +60°C (horizontal) / 0°C to +40°C (vertical) |
| Storage/Transport Temperature | -40°C to +70°C |
| Humidity | ≤95%, non-condensing |
| Dimensions (W x H x D) | 62 x 76 x 67.5 mm |
| Weight | 0.125 kg |
FAQ
FAQ
Q1: What input signal types does the AI523 support?
A1: It supports voltage, current, Pt100/1000, and Ni1000 inputs, configurable per channel.
Q2: Does the module feature galvanic isolation?
A2: Yes, the AI523 module provides galvanic isolation from internal supply and other modules.
Q3: What is the power supply requirement for the module?
A3: The module requires a 24 V DC power supply, with maximum ripple of 5%, and reverse polarity protection.
Q4: What is the resolution per input channel?
A4: The module offers 12-bit resolution, including sign where applicable.
Q5: Can the module be mounted vertically?
A5: Yes, vertical mounting is possible, but load per group must be reduced to 50% above +40°C.
Q6: What is the conversion time of the AI523?
A6: Conversion time is 2 ms for 16 inputs, and 1 second when using Pt/Ni sensors.
Q7: How long can the analog cables be?
A7: Analog cables can be up to 100 meters long, with conductor cross-section > 0.14 mm².
Q8: What protection features does the module offer?
A8: All I/O channels are protected against reverse polarity, short-circuit, and overvoltage up to 30 V DC.
