Technical Specifications
| Parameter | Value |
|---|---|

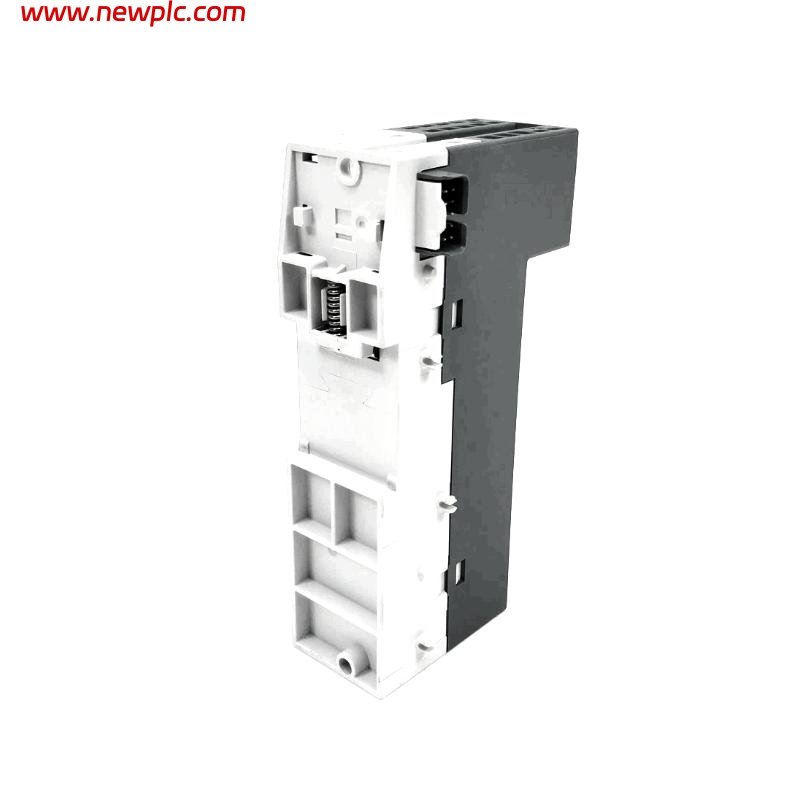

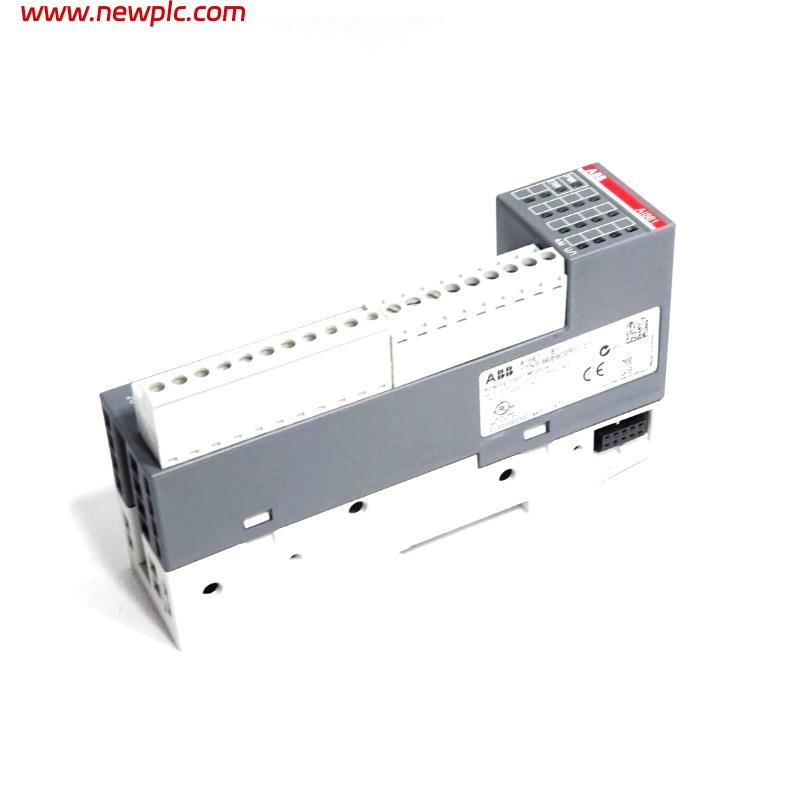

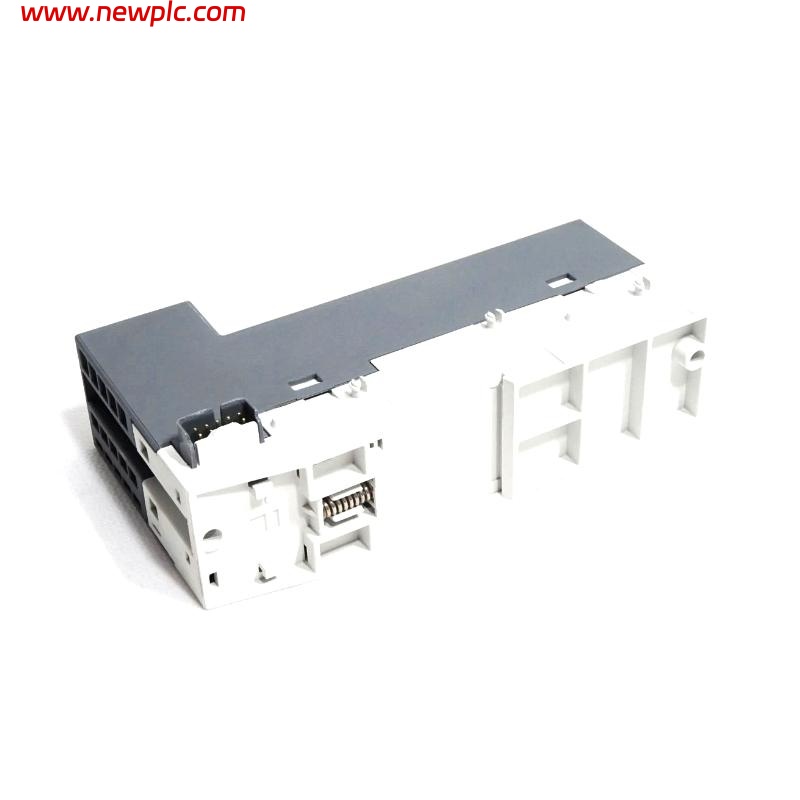

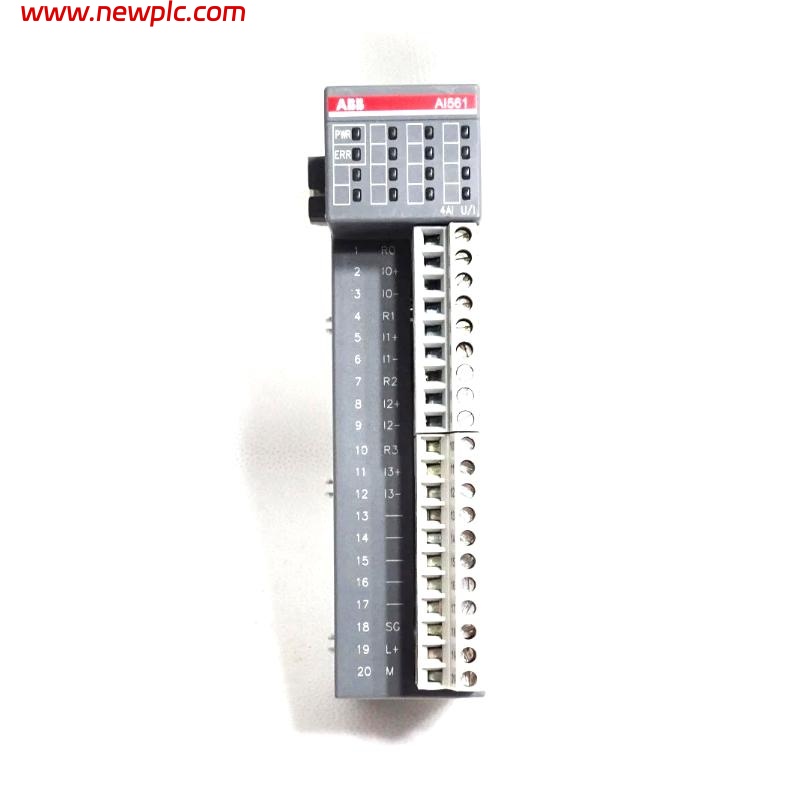

| Model | ABB AI561 Analog Input Module |
| Part Number | 1TNE968902R1101 |
| Number of Channels | 4 individually configurable |
| Input Types | Voltage (unipolar/bipolar) or Current |
| Resolution | 12 bits (13 bits bipolar E0 or later) |
| Voltage Input Ranges | 0…+5 V, 0…+10 V, -2.5…+2.5 V, -5…+5 V |
| Current Input Ranges | 0…20 mA, 4…20 mA |
| Input Resistance (Voltage) | >1 MΩ |
| Input Resistance (Current) | ~250 Ω |
| Galvanic Isolation | None |
| Power Supply | 24 V DC (L+/M) |
| Power Consumption | 0.1 A (typical), 0.02 A (E0 or later) |
| Max. Ripple | 5% |
| Inrush Current | Typ. 0.1 A²s, Max. 0.16 A²s |
| Power Dissipation | Max. 2.7 W (1 W E0 or later) |
| Conversion Time | ~500 µs per channel |
| Input Filter Time Constant | 300 µs |
| Overvoltage Protection | Up to 30 V DC |
| Operating Temperature | 0…+60°C (horizontal) / 0…+40°C (vertical) |
| Storage Temperature | -40…+70°C |
| Humidity | Max. 95%, non-condensing |
| Mounting Position | Horizontal/Vertical |
| Cooling | Natural convection |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 135 x 74 x 34 mm |
| Weight | 0.12 kg |
FAQ
FAQ
Q1: How many analog input channels does the ABB AI561 module support?
A1: The module supports 4 individually configurable analog input channels.
Q2: Does the AI561 module provide input isolation?
A2: No, the AI561 module does not provide galvanic isolation between inputs and the I/O bus.
Q3: What input signal types are supported by the module?
A3: The module supports voltage and current inputs, including unipolar and bipolar voltage, and 0–20 mA and 4–20 mA current.
Q4: What is the resolution of the AI561 module?
A4: The analog input resolution is 12 bits (13 bits for bipolar inputs on E0 or later versions).
Q5: What is the operating temperature range of the module?
A5: 0°C to +60°C for horizontal mounting, and 0°C to +40°C for vertical mounting with reduced load.
Q6: What are the installation requirements for the module?
A6: It can be mounted horizontally or vertically, ensuring natural convection cooling is not obstructed.
Q7: Does the module feature overvoltage protection?
A7: Yes, the voltage input channels are protected up to 30 V DC.
Q8: What are the power supply and consumption specifications of the module?
A8: The module operates on 24 V DC, with typical current consumption of 0.1 A (0.02 A on E0 or later versions), and maximum power dissipation of approximately 2.7 W.
