Technical Specifications
| Parameter Category | Technical Description |
|---|---|

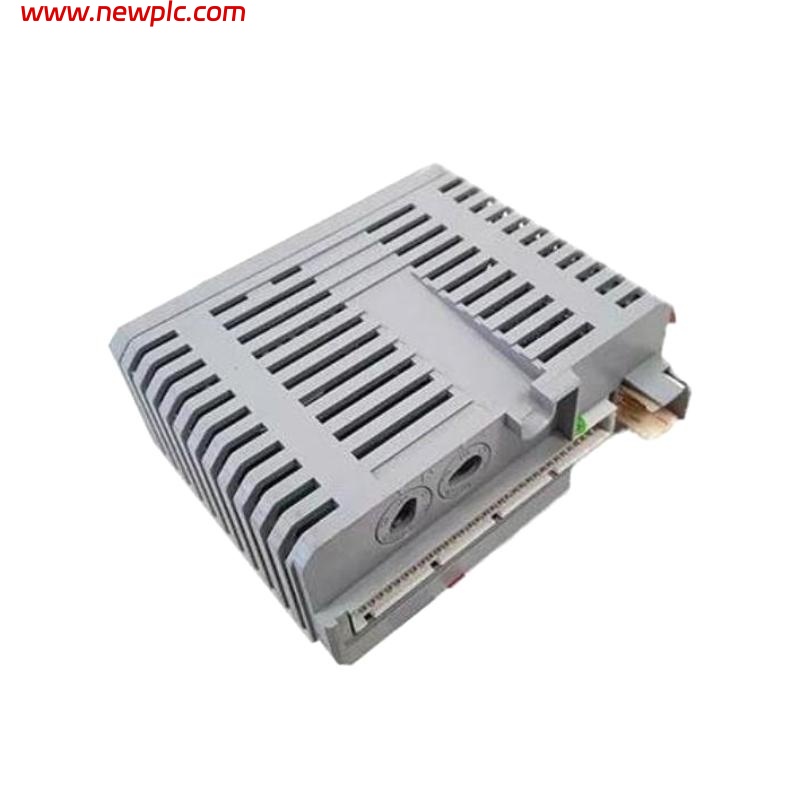

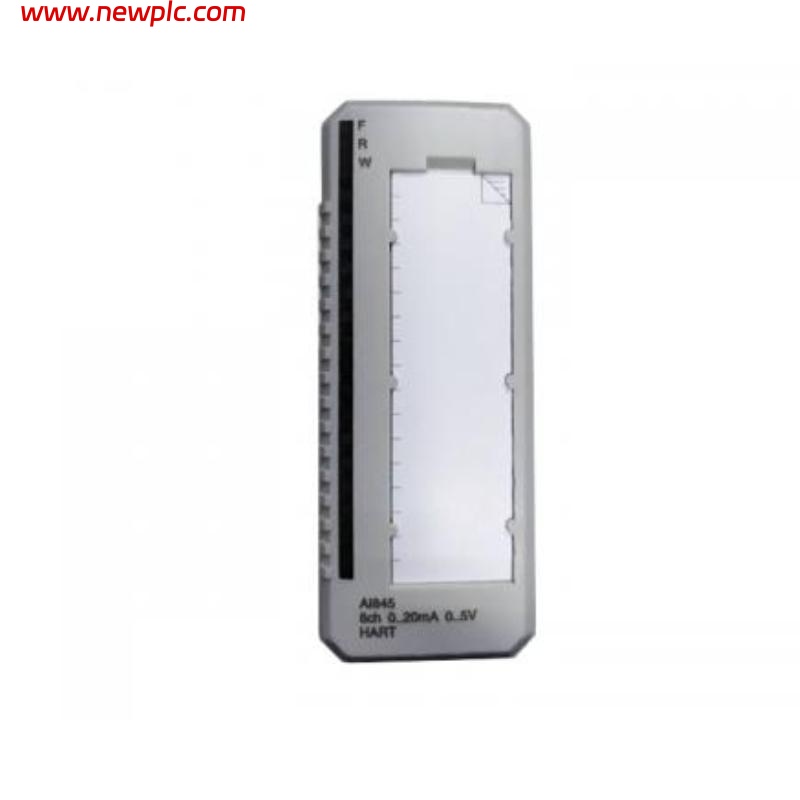

| Product Model | ABB AI845-eA 3BSE023675R2 Analog Input Module |
| Function | Provides high-precision analog signal acquisition for process control systems |
| Channel Count | 8 single-ended input channels |
| Input Signal Types | Current input (4-20 mA), Voltage input (0-10 V) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit A/D converter |
| Scan Rate | ≤ 10 ms per channel |
| Isolation Level | ≥ 1.5 kV between channels and system bus |
| Power Requirement | 24 V DC supply, power consumption ≤ 5 W |
| Noise Suppression | Supports 50/60 Hz line frequency rejection |
| Diagnostic Features | Open circuit detection, short circuit detection, out-of-range detection |
| Operating Mode | Single-ended input, redundancy supported |
| Operating Environment | Operating: -10 ~ +55°C; Storage: -40 ~ +85°C; Humidity: 95% non-condensing |
| EMC Compliance | Compliant with IEC/EN 61000 industrial EMC standards |
| Mounting Method | DIN rail mounting |
| Dimensions | 45 × 102 × 119 mm |
| Weight | 0.23 kg |
FAQ
FAQ
Q1: What types of input signals are supported by the module?
A1: The module supports current input (4-20 mA) and voltage input (0-10 V).
Q2: How many input channels does the module provide?
A2: It provides 8 single-ended analog input channels.
Q3: What is the resolution of the module?
A3: It uses a 16-bit A/D converter for precise signal acquisition.
Q4: What is the typical sampling rate of the module?
A4: The scan rate is ≤ 10 ms per channel.
Q5: Does the module provide signal isolation?
A5: Yes, it provides isolation ≥ 1.5 kV between input channels and the system bus.
Q6: Does the module support diagnostic functions?
A6: Yes, it supports open circuit, short circuit, and out-of-range detection.
Q7: What are the power supply requirements?
A7: It requires a 24 V DC power supply with consumption ≤ 5 W.
Q8: Under what environmental conditions can the module operate?
A8: Operating temperature: -10 ~ +55°C; Storage: -40 ~ +85°C; Humidity ≤ 95% non-condensing.
