Technical Specifications
| Item | Specification |
|---|---|

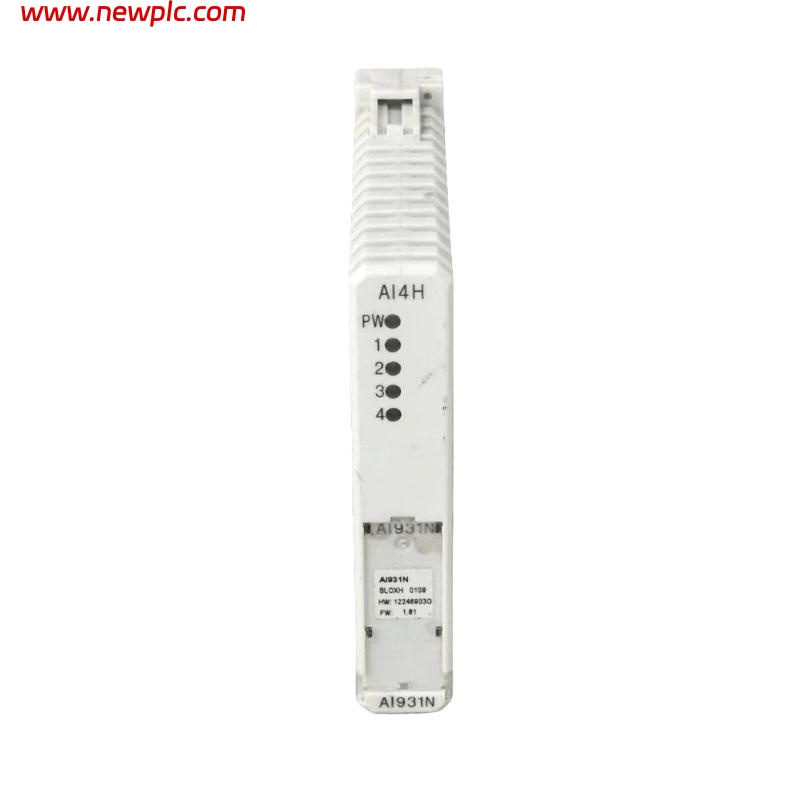

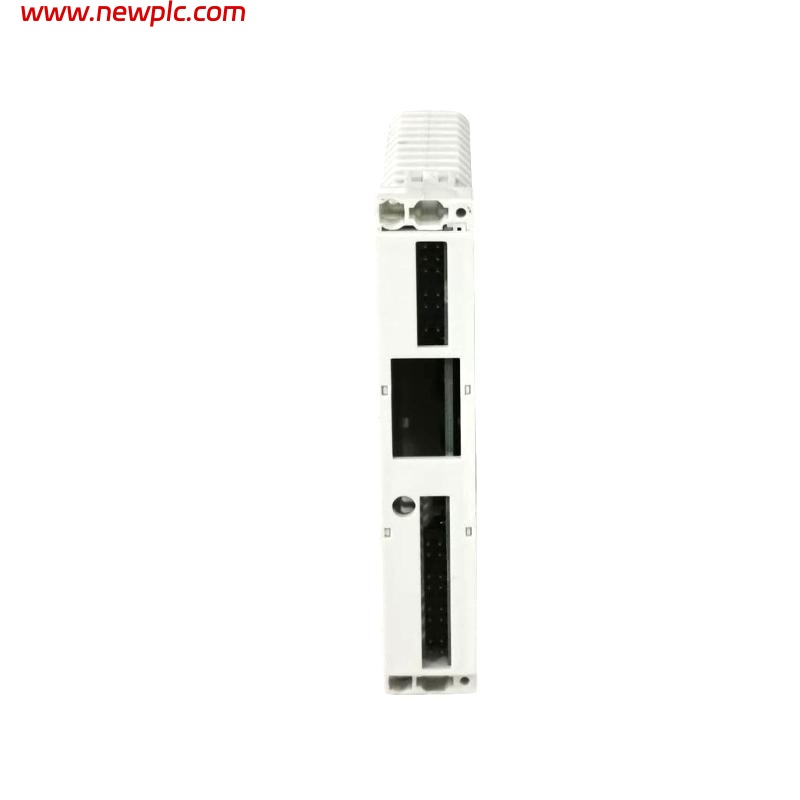

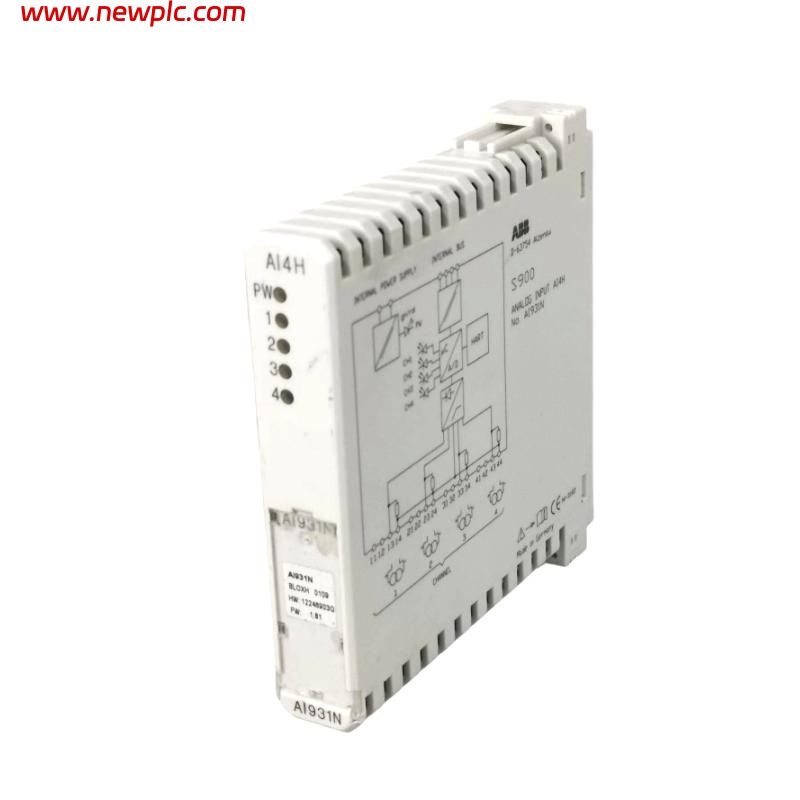

| Model | ABB AI931 |
| Type | Analog Input Module |
| Product Category | PLC / DCS I/O Module |
| Product Family | ABB S900 / Advant Controller I/O System |
| Function | Acquisition of analog process signals for measurement and control |
| Number of Input Channels | 4 channels |
| Supported Signal Types | 0–10 V, 0–5 V, 4–20 mA, ±10 V (configurable) |
| Input Resolution | High-resolution analog conversion |
| Accuracy | Industrial-grade precision analog measurement |
| Input Impedance | High impedance for voltage; appropriate resistance for current inputs |
| Isolation | Galvanic isolation between channels and system backplane |
| Status Indication | LED indicators for power and channel status |
| Mounting Method | DIN rail or rack interface via terminal base |
| Field Wiring Connection | Screw terminal or plug-in terminal base |
| Operating Temperature Range | –20 °C to +55 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade plastic |
| Application Environment | Industrial automation and process control cabinets |
| Compatibility | ABB S900 I/O system and compatible controllers |
| Dimensions | Approx. 20 mm × 104 mm × 104 mm (W × H × D) |
| Weight | Approximately 0.15 kg |
FAQ
FAQ
Q1: What is the primary purpose of the ABB AI931 module?
It is used to acquire and convert analog process signals for use in measurement, monitoring, and control applications.
Q2: How many analog input channels does the AI931 provide?
The module provides four independent analog input channels.
Q3: What types of signals can this module measure?
It supports a range of analog signals including 0–10 V, 0–5 V, ±10 V, and 4–20 mA.
Q4: Does the AI931 offer electrical isolation?
Yes, it provides galvanic isolation between channels and the system backplane for improved signal integrity and safety.
Q5: How are field signals connected to the AI931?
Signals are connected via screw terminal blocks or a plug-in terminal base for secure field wiring.
Q6: Does the module provide status indication?
Yes, it has LED indicators to show power status and channel activity or fault conditions.
Q7: Can the AI931 operate in harsh industrial environments?
Yes, it is designed for industrial automation use within the specified operating temperature range.
Q8: What are the physical dimensions and weight of the AI931?
The module measures approximately 20 mm × 104 mm × 104 mm and weighs around 0.15 kg.
