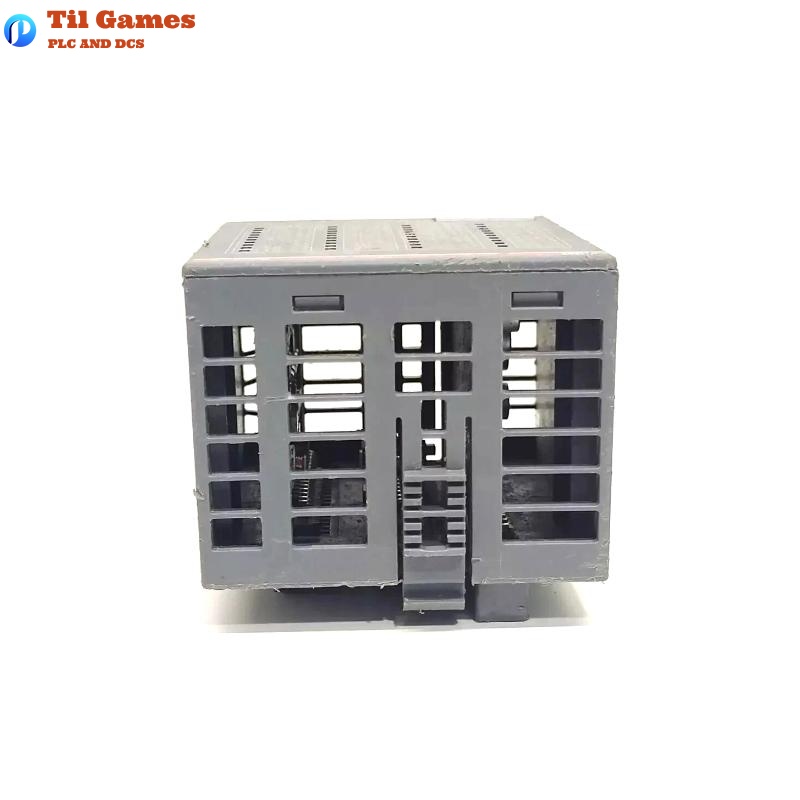

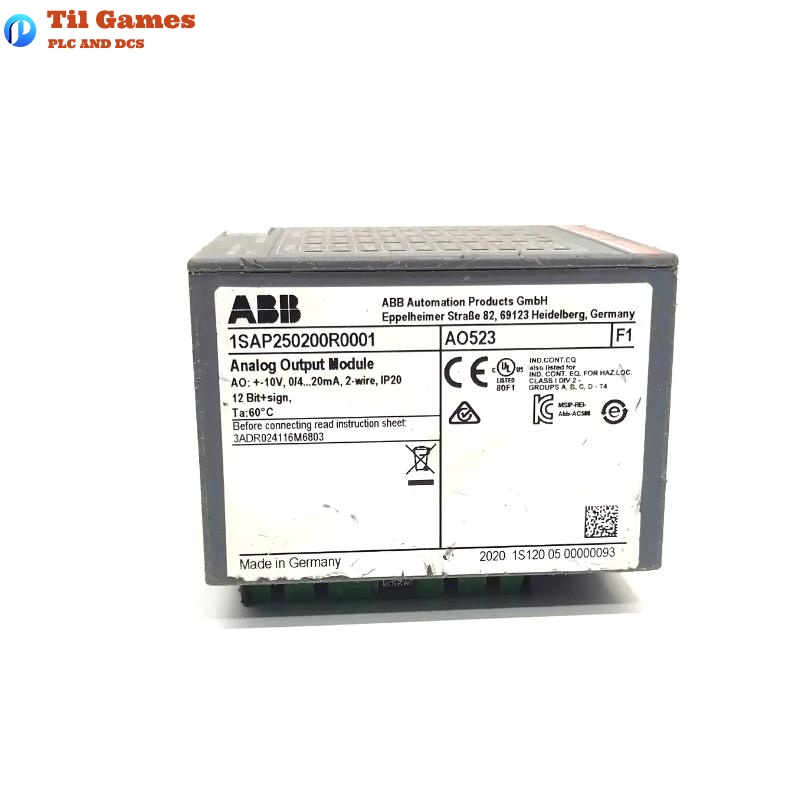

ABB AO523 1SAP250200R0001 S500 Analog Output Module

FAQ

Q1: How many outputs support current output mode?
A1: Only channels 0–3 and 8–11 support current output (0–20 mA or 4–20 mA).

Q2: Can the module be mounted vertically?
A2: Yes, but with derating — output load must be reduced to 50% per group above 40°C.

Q3: What is the resolution of the output signals?
A3: The module provides a resolution of 12 bits with sign.

Q4: What kind of protection does AO523 offer?
A4: It includes protection against reverse polarity, short circuit, and overvoltage up to 30 V DC.

Q5: Can unused output channels be left disconnected?
A5: Yes, unused analog output channels can remain open without causing errors.

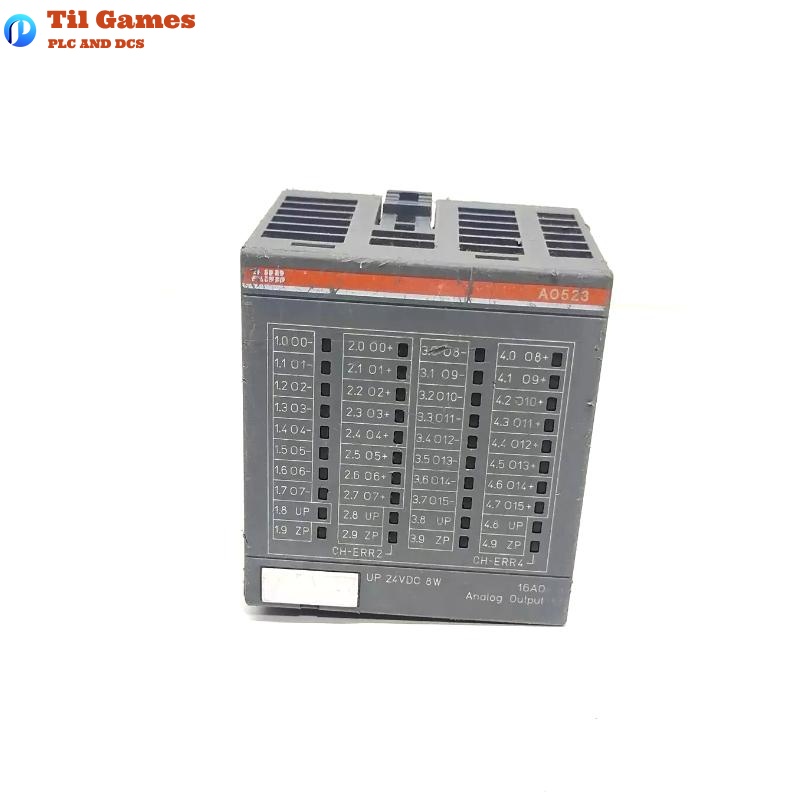

Q6: What LED indicators are present on AO523?
A6: There are 19 LEDs: 16 yellow for output channels, 1 green for UP (24 VDC), and 2 red for error groups (CH-ERR2, CH-ERR4).

Q7: Is there electrical isolation between channels?
A7: No isolation between channels, but the module is isolated from internal electronics and other modules.

Q8: What terminal units are compatible with AO523?
A8: Terminal units TU515 (screw type) and TU516 (spring type) are compatible.

1SAP250200R0001 ABB AO523 S500 Analog Output Module
