Technical Specifications
| Item | Specification |
|---|---|

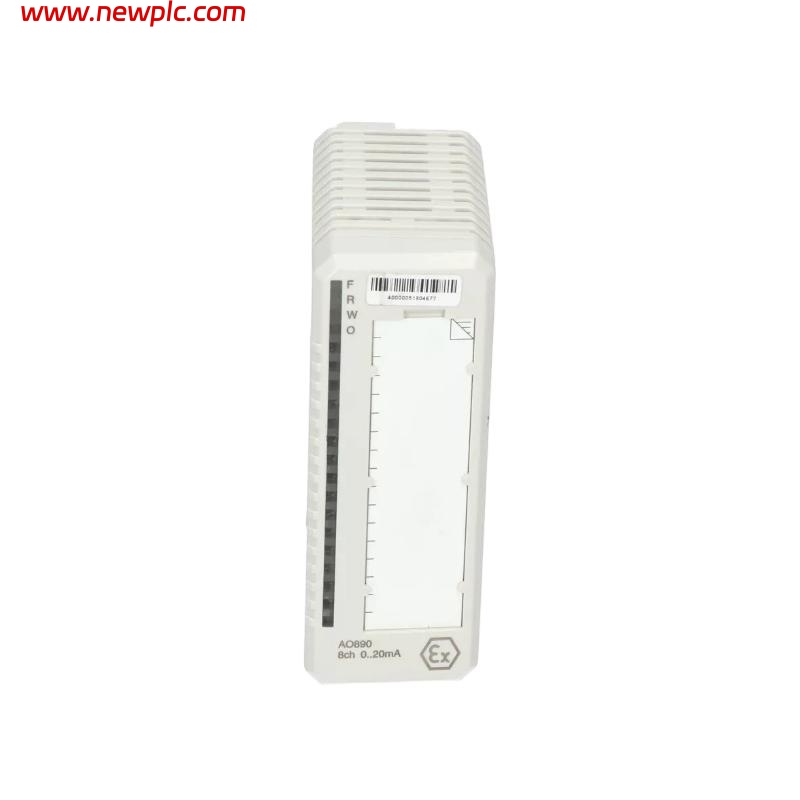

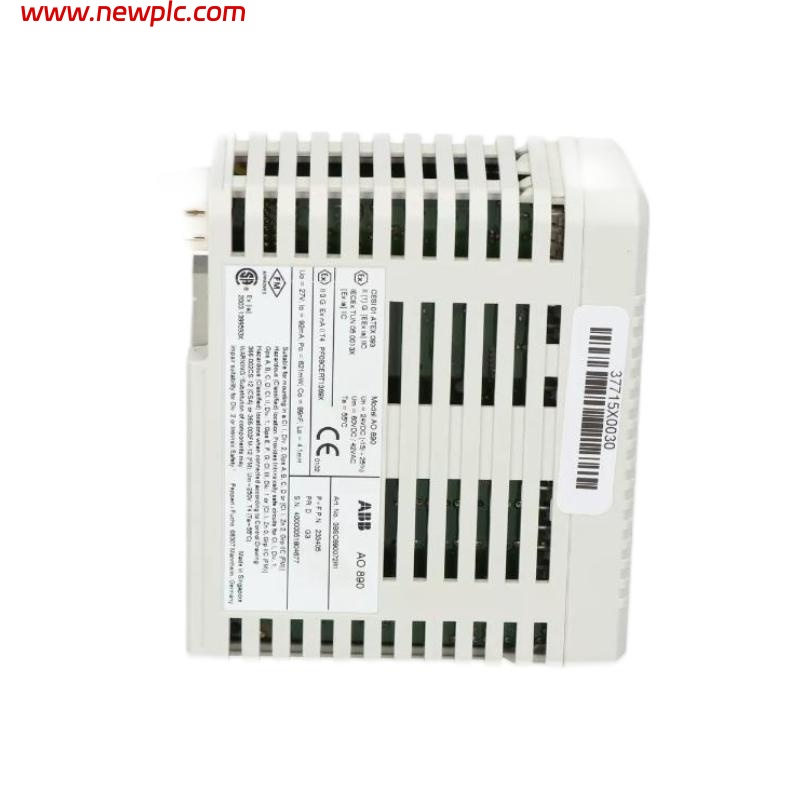

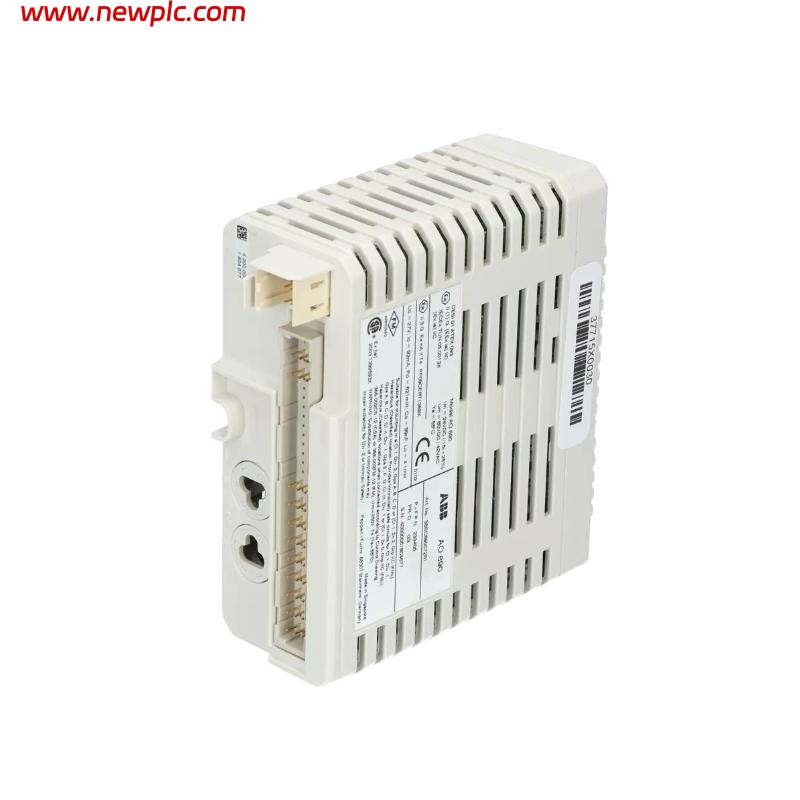

| Model | ABB AO890 (Ordering No. 3BSC690072R1) |
| Type | Analog Output Module |
| Product Category | PLC / DCS I/O Module |
| Product Family | ABB S800 I/O System |
| Function | Provides isolated analog output channels for control and monitoring |
| Number of Output Channels | 8 channels |
| Output Signal Types | Configurable 0–10 V or 4–20 mA per channel |
| Output Resolution | High-resolution industrial analog output |
| Output Accuracy | Precision analog performance for process control |
| Output Load Capability | Supports standard industrial analog loads |
| Isolation | Galvanic isolation between channels and system backplane |
| Status Indication | LED indicators for module power and channel activity |
| Mounting Method | DIN rail or rack mount via S800 terminal base |
| Field Wiring Connection | Screw terminal or plug-in terminal base |
| Operating Temperature Range | –20 °C to +60 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade plastic |
| Application Environment | Industrial automation and process control cabinets |
| Compatibility | ABB S800 I/O system and compatible controllers |
| Dimensions | Approx. 22 mm × 115 mm × 100 mm (W × H × D) |
| Weight | Approximately 0.34 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB AO890 module?
It provides isolated analog output channels to generate control signals for devices such as valves, actuators, and drives in industrial automation systems.
Q2: How many analog output channels does the AO890 offer?
The module offers 8 independent analog output channels.
Q3: What types of signal outputs are supported?
Each channel can be configured for standard industrial analog output types, such as 0–10 V or 4–20 mA.
Q4: Does the AO890 provide electrical isolation?
Yes, it offers galvanic isolation between the analog output channels and the system backplane to improve signal integrity and safety.
Q5: How are external field devices connected to this module?
Outputs are wired through screw terminal blocks or a plug-in terminal base for secure connections.
Q6: Does the module include status indication features?
Yes, the module includes LED indicators that show module power status and individual channel activity.
Q7: Is the AO890 suitable for industrial environments?
Yes, it is designed for use in industrial automation and control cabinets within its specified temperature range.
Q8: What are the physical dimensions and weight of the AO890?
The module measures approximately 22 mm × 115 mm × 100 mm and weighs about 0.34 kg.
