Technical Specifications
| Item | Specification |
|---|---|

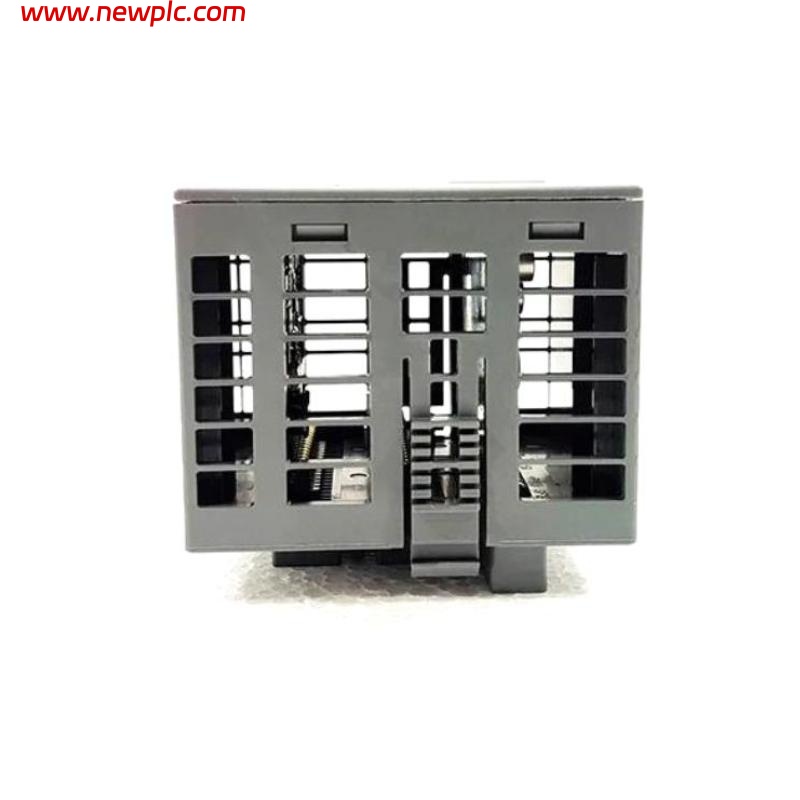

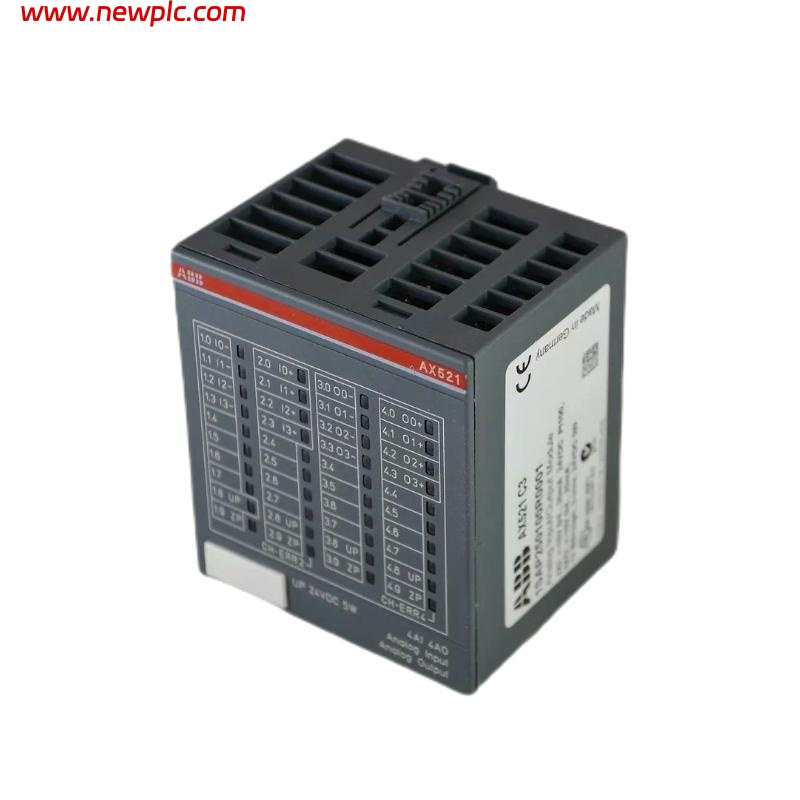

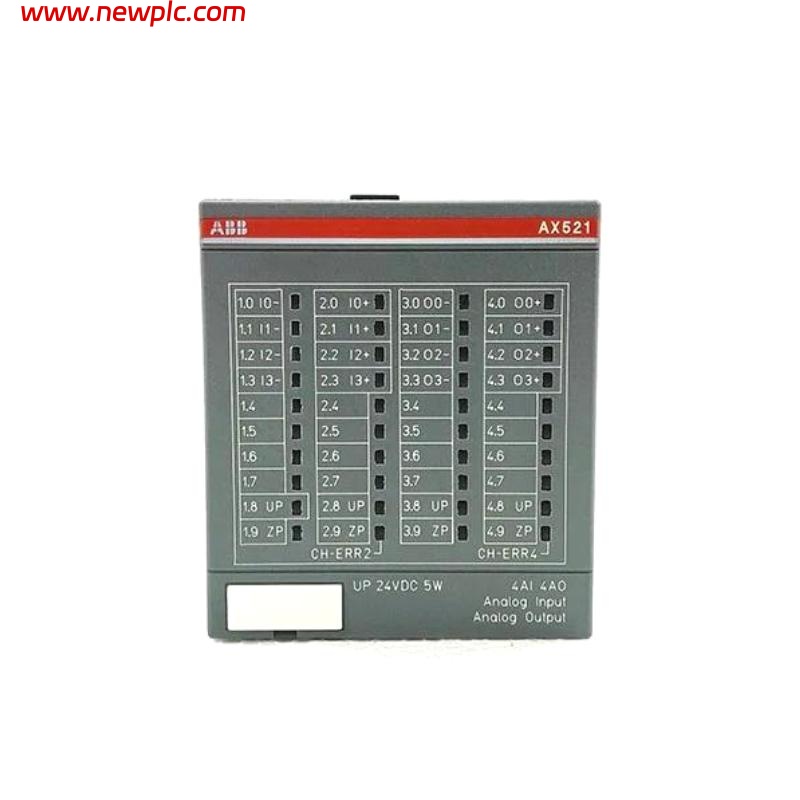

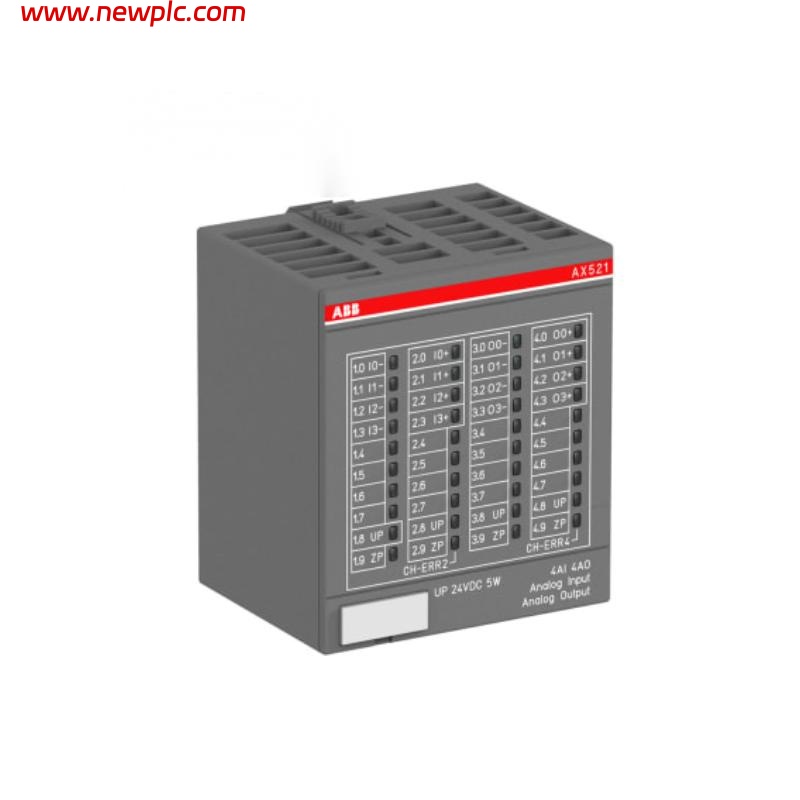

| Product Model | ABB AX521 1SAP250100R0001 |
| Product Type | Analog Input/Output Module |
| Input Channels | 8 analog input channels |
| Output Channels | 8 analog output channels |
| Input Signal | Voltage/Current (supports standard signals) |
| Output Signal | Voltage/Current (configurable) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | Electrical isolation between channels and system bus |
| Operating Temp. | 0 to 55 ℃ |
| Storage Temp. | -25 to 70 ℃ |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 62 x 76 x 67.5 mm |
| Weight | 0.129 kg |
| Mounting Method | Rack-mounted |
| Typical Use | Industrial automation, process control, data acquisition and control systems |
FAQ
FAQ
Q1: How many input and output channels does the ABB AX521 module have?
A1: The module provides 8 analog inputs and 8 analog outputs.
Q2: What types of input signals are supported?
A2: It supports standard voltage and current signals.
Q3: What is the output signal type of the module?
A3: The output can be configured as either voltage or current.
Q4: What is the resolution of the module?
A4: The module offers a 16-bit resolution.
Q5: What are the dimensions and weight of the module?
A5: The dimensions are 62 x 76 x 67.5 mm, and the weight is 0.129 kg.
Q6: What is the accuracy of the module?
A6: The accuracy is ±0.1% of full scale.
Q7: How is the module installed?
A7: The module is rack-mounted for easy integration.
Q8: Does the module provide isolation?
A8: Yes, it provides electrical isolation between I/O channels and the system bus.
