Technical Specifications
| Parameter | Specification |
|---|---|

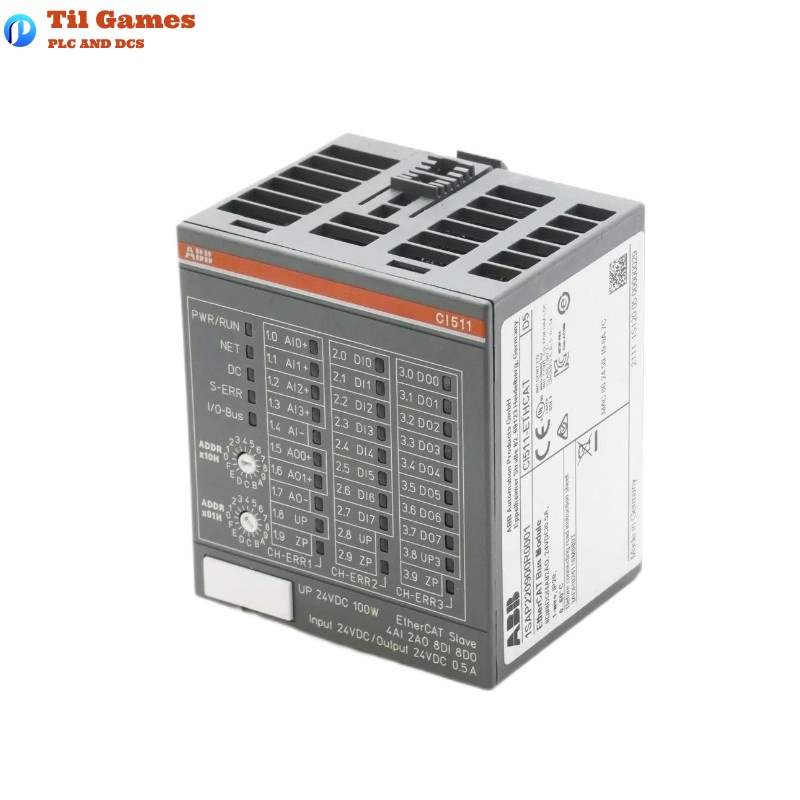

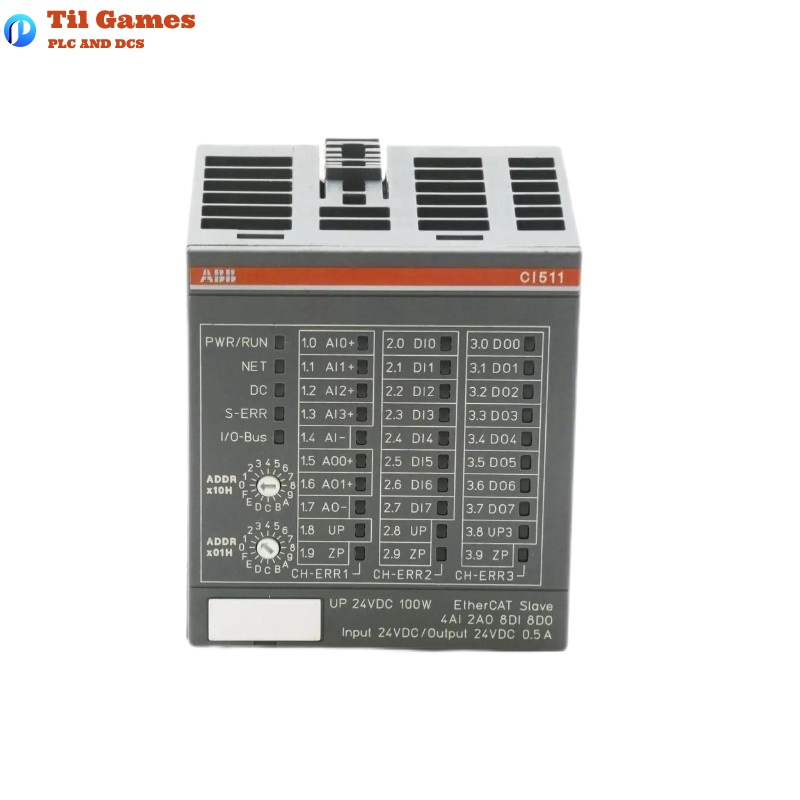

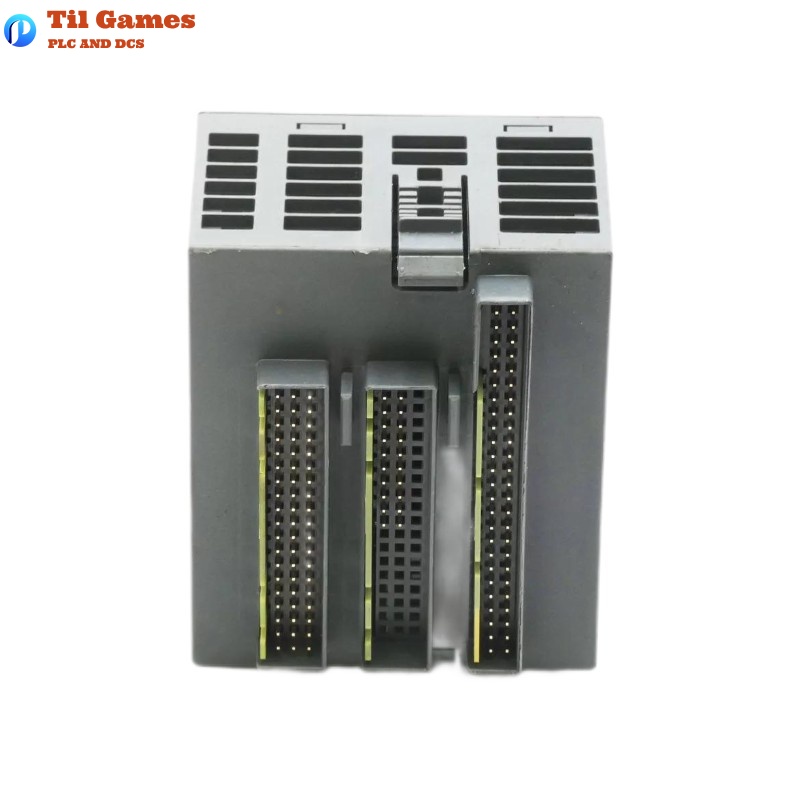

| Model Number | CI511-ETHCAT |
| Ordering Code | 1SAP220900R0001 |
| Digital Inputs (DI) | 8 channels |
| Digital Outputs (DO) | 8 channels |
| Analog Inputs (AI) | 4 channels |
| Analog Outputs (AO) | 2 channels |
| Communication Interface | EtherCAT (2 x RJ45) |
| Protocol Technology | Hilscher NETX 100 |
| Transfer Rate | 10/100 Mbit/s full-duplex |
| Max Expandable Modules | Up to 10 S500 I/O modules |
| Input Data Length | 18 bytes |
| Output Data Length | 18 bytes |
| Power Supply Voltage (UP/UP3) | 24 V DC |
| Max Terminal Load | 10 A |
| Current Consumption | 0.2 A (UP), 0.06 A + 0.5 A/output (UP3) |
| Power Dissipation | Max. 6 W |
| Protective Functions | Short circuit, reverse polarity, overvoltage |
| Mounting | DIN rail 35 mm, horizontal/vertical with derating |
| Dimensions (W x H x D) | 62 x 76 x 67.5 mm |
| Weight | 0.138 kg (approx. 125 g) |
| Ambient Operating Temperature | 0 °C to +60 °C (horizontal), 0 °C to +40 °C (vertical) |
| Storage Temperature | -40 °C to +70 °C |
| Protection Degree | IP20 |
| Diagnostics | 32 LEDs for operation and error indication |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of CI511-ETHCAT?
A1: It serves as an EtherCAT interface module with integrated digital and analog I/O for high-speed automation tasks such as electronic cam switching.
Q2: How many I/O channels does the CI511-ETHCAT module have?
A2: It includes 8 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs.
Q3: What communication protocol does this module use?
A3: It uses EtherCAT with two RJ45 ports supporting 10/100 Mbit/s full-duplex communication.
Q4: Can CI511-ETHCAT be used in vertical mounting?
A4: Yes, but digital output loads must be reduced by 50% at +40 °C during vertical mounting.
Q5: Is the module protected against electrical faults?
A5: Yes, it features protections against short circuits, overvoltage, and reverse polarity.
Q6: What is the power supply requirement for this module?
A6: The rated supply is 24 V DC; UP for inputs and UP3 for outputs with a maximum terminal load of 10 A.
Q7: Is configuration and diagnostics software-supported?
A7: Yes, the module is configured and diagnosed using ABB’s PS501 Control Builder Plus.
Q8: What type of analog signals can the module handle?
A8: It supports ±10V, 0–10V, 0/4–20 mA current signals, and RTD sensors like Pt100, Pt1000, and Ni1000.
