Technical Specifications
| Item | Specification |
|---|---|

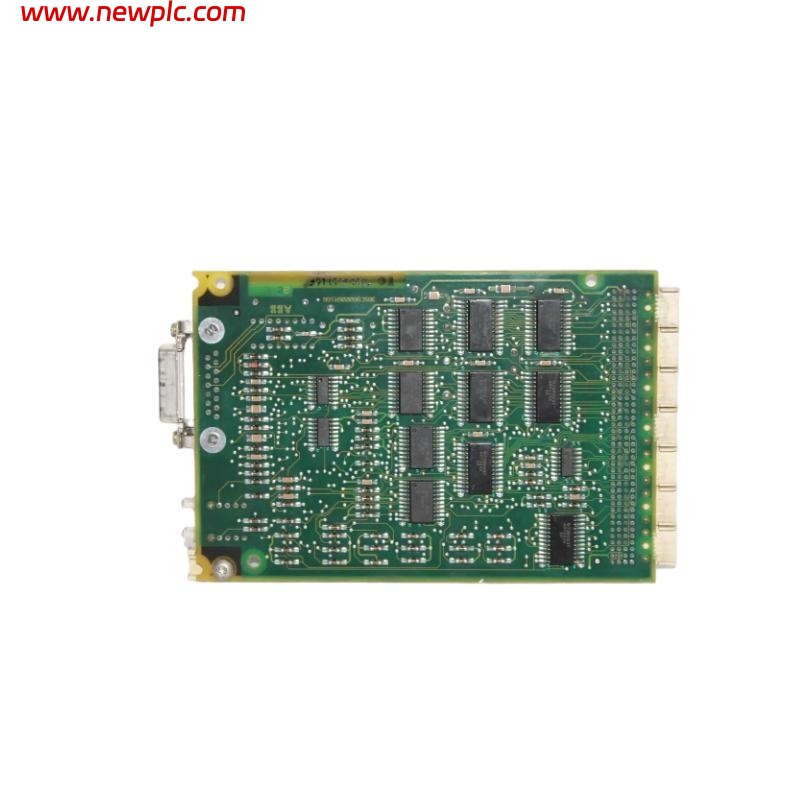

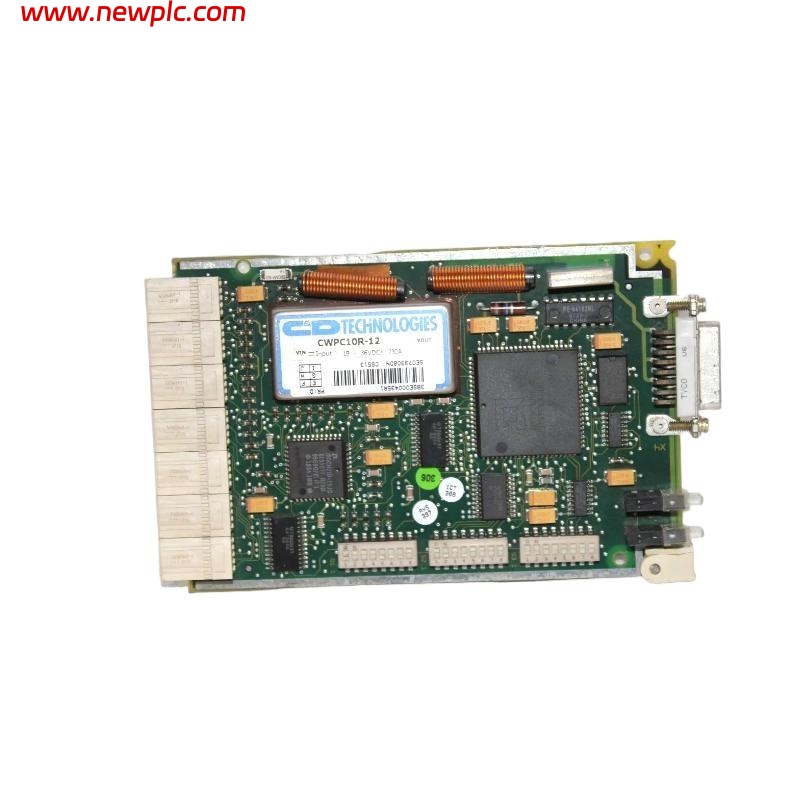

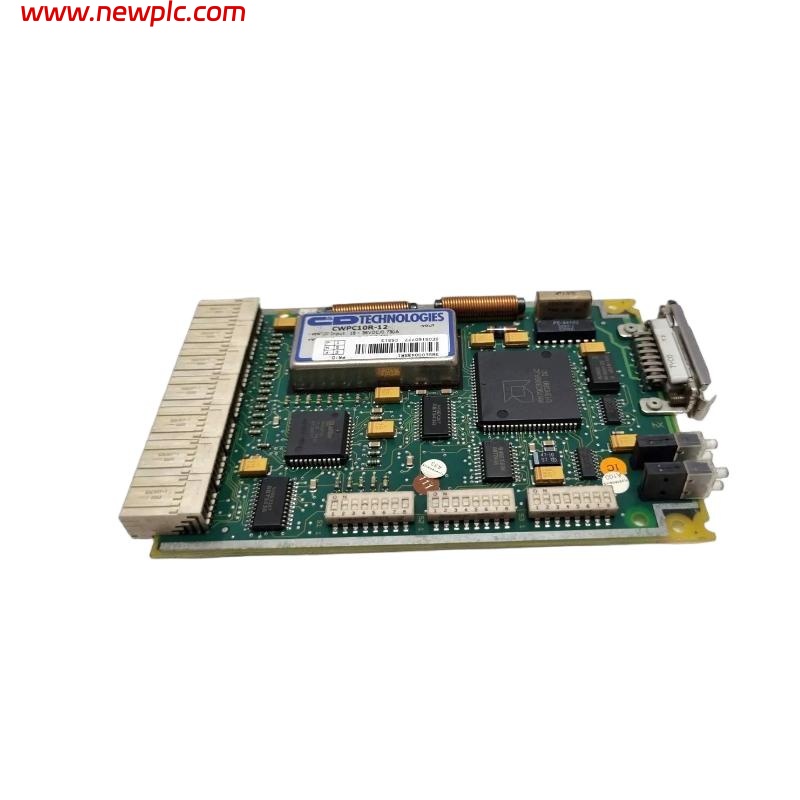

| Model | ABB CI513 (Ordering No. 3BSE000435R1) |
| Type | Digital Input Module |
| Product Category | PLC / DCS I/O Module |
| Product Family | ABB S800 I/O System |
| Function | Provides isolated discrete input channels for logic and status signals |
| Number of Input Channels | 8 channels |
| Input Signal Type | DC discrete inputs (24 V DC nominal) |
| Input Logic | Positive logic (active high) |
| Nominal Input Current | Standard industrial discrete input level |
| Isolation | Galvanic isolation between channels and system backplane |
| Status Indication | Individual LED indicators for each input channel |
| Mounting Method | DIN rail or rack mount via S800 terminal base |
| Field Wiring Connection | Screw terminal or plug-in terminal base |
| Operating Temperature Range | –20 °C to +60 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade plastic |
| Application Environment | Industrial automation and control cabinets |
| Compatibility | ABB S800 I/O system and compatible PLC/DCS controllers |
| Dimensions | Approx. 22 mm × 115 mm × 100 mm (W × H × D) |
| Weight | Approximately 0.20 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB CI513 module?
It provides 8 isolated DC discrete input channels for monitoring on/off status and logic signals from field devices such as switches and sensors.
Q2: How many input channels does the CI513 support?
The module supports 8 independent discrete DC input channels.
Q3: What type of signal does this unit accept?
It accepts DC discrete input signals, typically at 24 V DC active high logic.
Q4: Does the CI513 provide electrical isolation?
Yes, it offers galvanic isolation between the input channels and the system backplane to improve signal integrity and protect against interference.
Q5: How are field devices connected to this module?
Field wiring connects via screw terminal blocks or a plug-in terminal base for secure installation.
Q6: Does the module include status indication?
Yes, each input channel has an individual LED indicator that shows whether the channel is active.
Q7: Can the CI513 operate in industrial control environments?
Yes, it is designed for use in industrial automation and control cabinets within its specified temperature range.
Q8: What are the physical dimensions and weight of the CI513?
The module measures approximately 22 mm × 115 mm × 100 mm and weighs about 0.20 kg.
