Technical Specifications
| Parameter | Description |
|---|---|

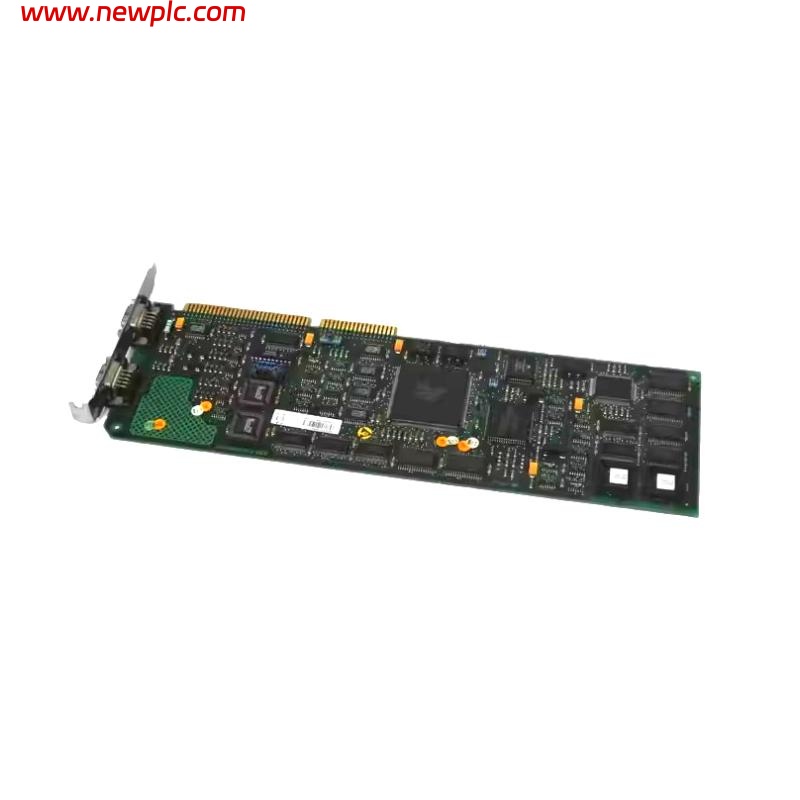

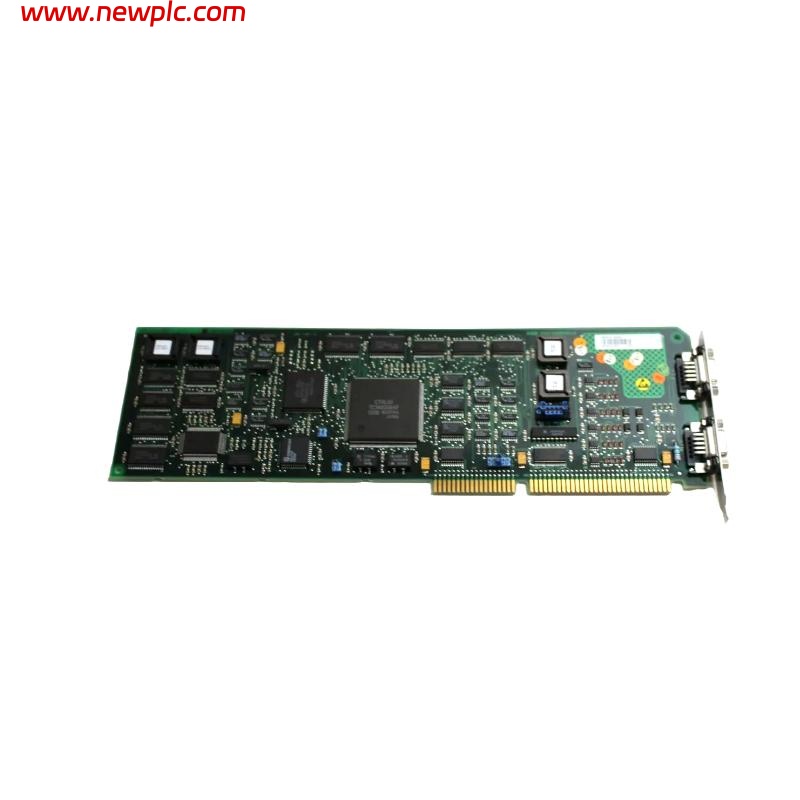

| Product Model | ABB CI525 3BSE004399R1 |
| Product Type | Advant Fieldbus 100 Communication Interface Module |
| Bus Interface | Supports Advant Fieldbus 100 (AF100) |
| Installation | Full-length ISA card, mounted in PC for OPC server connectivity |
| Communication Role | Bus Administrator-capable |
| Supported Media | Coaxial (via external TC625 modem) |
| Redundancy Support | Limited – only for coaxial media; max 4 m cable difference between stations |
| Time Synchronization | Not supported as time synchronization slave |
| Compatible with | AC 100 OPC Server, Advant Controllers via AF100 |
| Use Case | For connection to AF100 from a PC running an OPC server |
| Modem Requirement | Requires TC625 modem |
| Bus Master Capability | Yes |
| Bus Segment Limitation | For coaxial only; not suitable for twisted pair or optical |
| Dimensions (W x H x D) | 35 x 160 x 120 mm |
| Weight | 0.26 kg |
FAQ
FAQ
Q1: Does the CI525 support redundant communication?
A1: CI525 supports only limited redundancy for coaxial media with a maximum of 4 meters cable difference between any two stations.
Q2: Is time synchronization supported by CI525?
A2: No, CI525 does not support functioning as a time synchronization slave.
Q3: What devices is the CI525 compatible with?
A3: It is compatible primarily with PCs running an OPC server connected to the Advant Fieldbus 100 network.
Q4: What type of slot does CI525 use for installation?
A4: CI525 is a full-length ISA card and installs in the ISA slot of a PC motherboard.
Q5: Does the CI525 require an external modem?
A5: Yes, it requires the TC625 modem for coaxial media connection.
Q6: Can CI525 be used with twisted pair or optical media?
A6: No, CI525 is only designed for use with coaxial media.
Q7: Can CI525 act as a bus administrator?
A7: Yes, CI525 has the capability to function as a bus administrator on the AF100 bus.
Q8: What is the typical application of the CI525 module?
A8: It is typically used in PC-based operator stations such as OPC servers to access process control data over the AF100 fieldbus.
