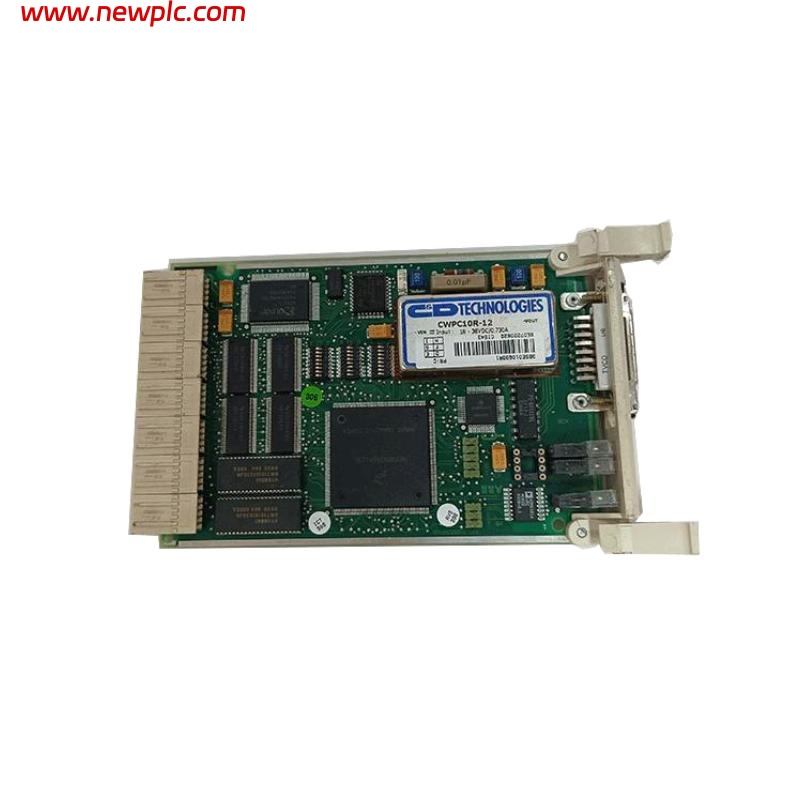

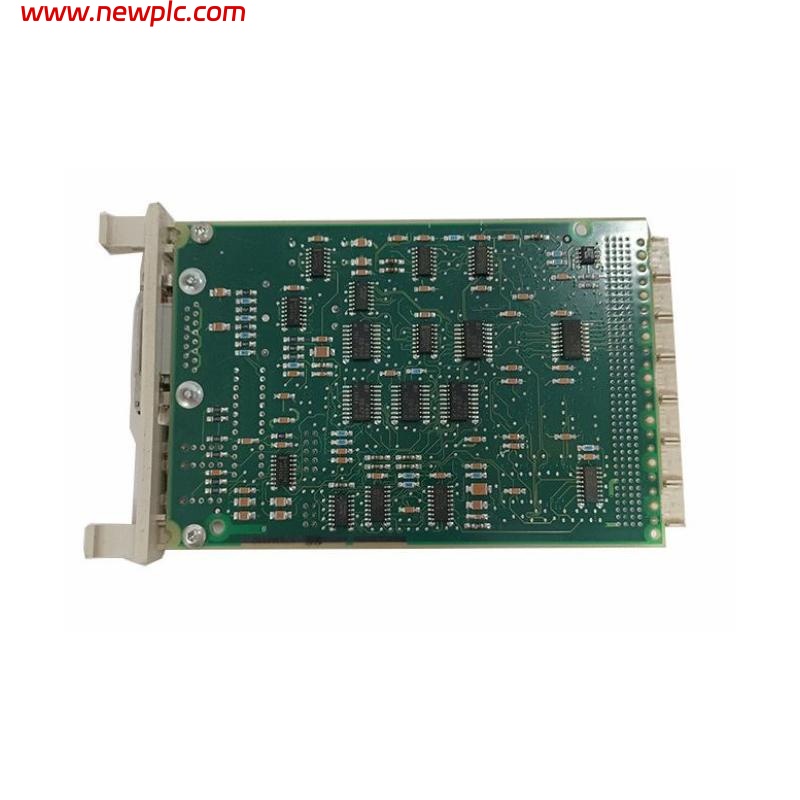

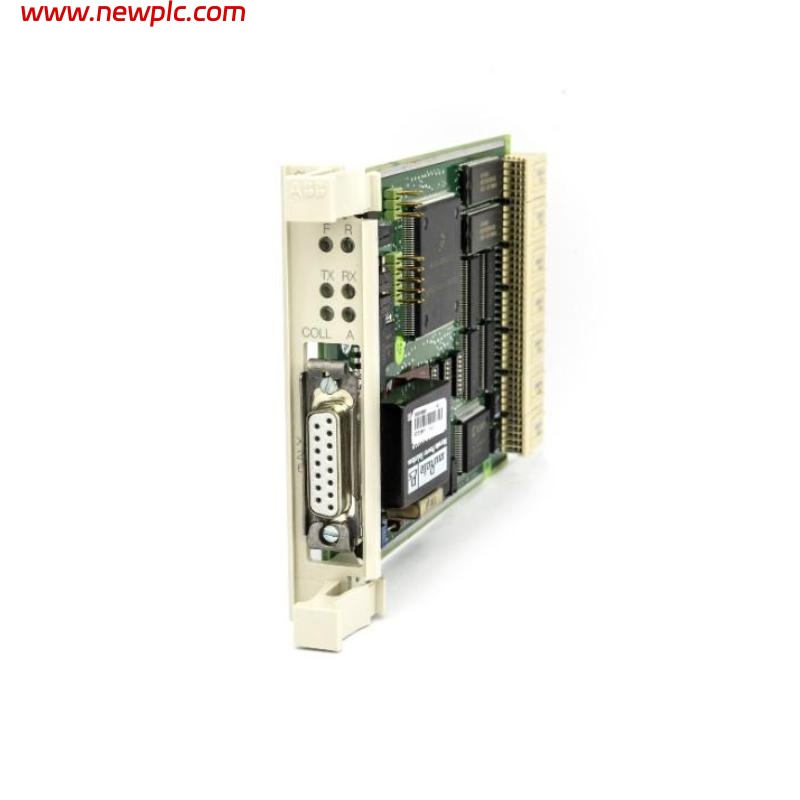

ABB CI543 3BSE010699R1 Digital Input Module

FAQ

Q1: What is the primary function of the ABB CI543 module?
It provides isolated DC discrete input channels for reading on/off status and logic signals from field devices such as sensors and switches.

Q2: How many input channels does the CI543 support?
The module supports 16 independent DC discrete input channels.

Q3: What type of signals does the CI543 accept?
It accepts DC discrete input signals, usually 24 V DC active high logic.

Q4: Does the CI543 provide electrical isolation?
Yes, it provides galvanic isolation between the input channels and the system backplane to improve signal integrity and safety.

Q5: How are field devices connected to this module?
Field wiring connects through screw terminal blocks or a plug‑in terminal base for secure and reliable installation.

Q6: Does the module feature status indicators?
Yes, it includes LED indicators for each input channel to show active/inactive status.

Q7: Can the CI543 operate in industrial automation environments?
Yes, it is designed for use in industrial control cabinets within its specified operating temperature range.

Q8: What are the physical dimensions and weight of the CI543?
The module measures approximately 45 mm × 115 mm × 100 mm and weighs about 0.50 kg.
