Technical Specifications
| Item | Description |
|---|---|

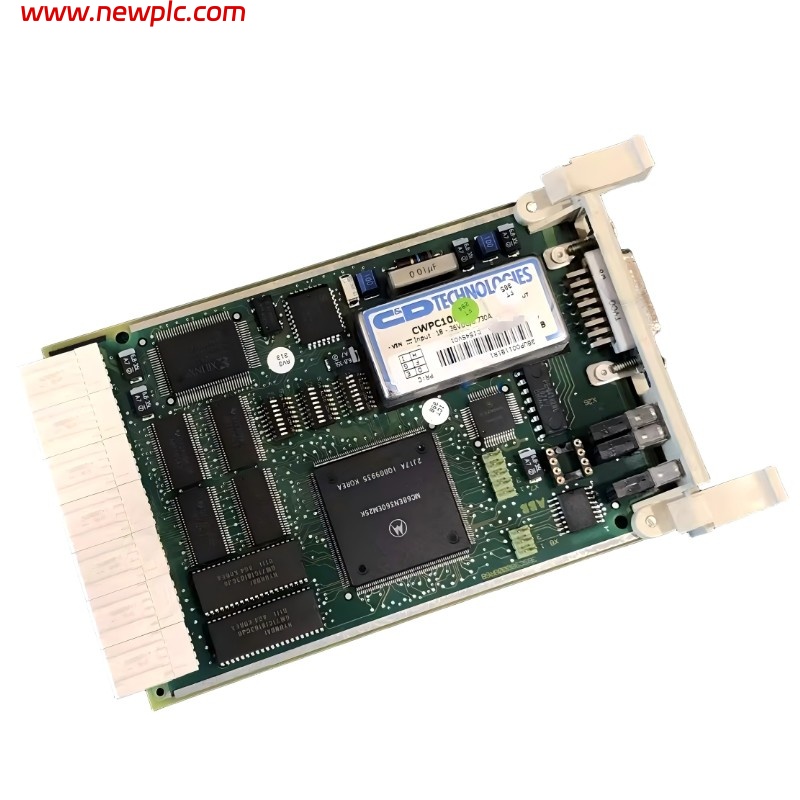

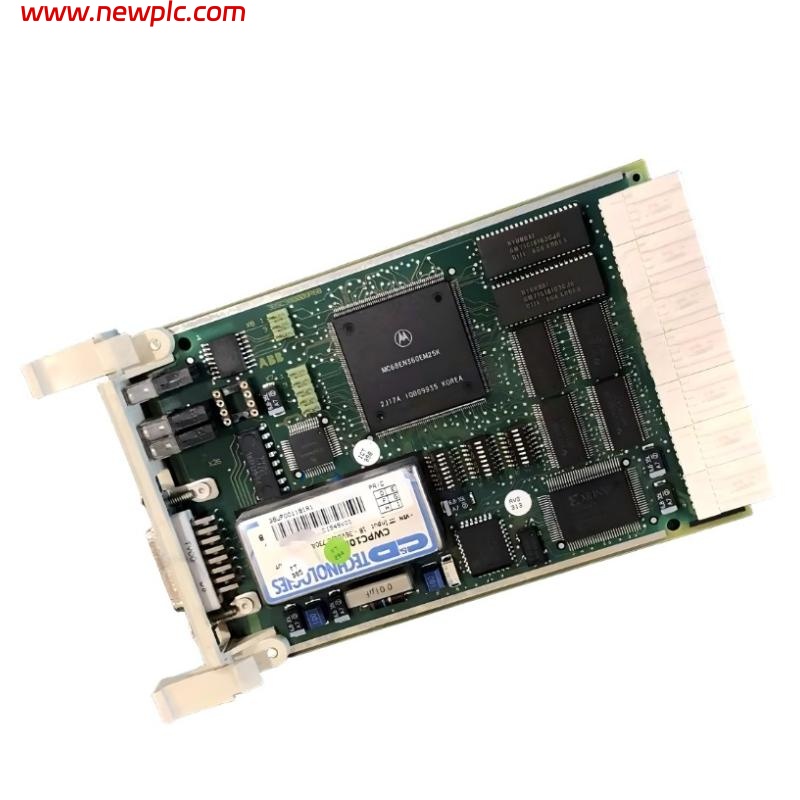

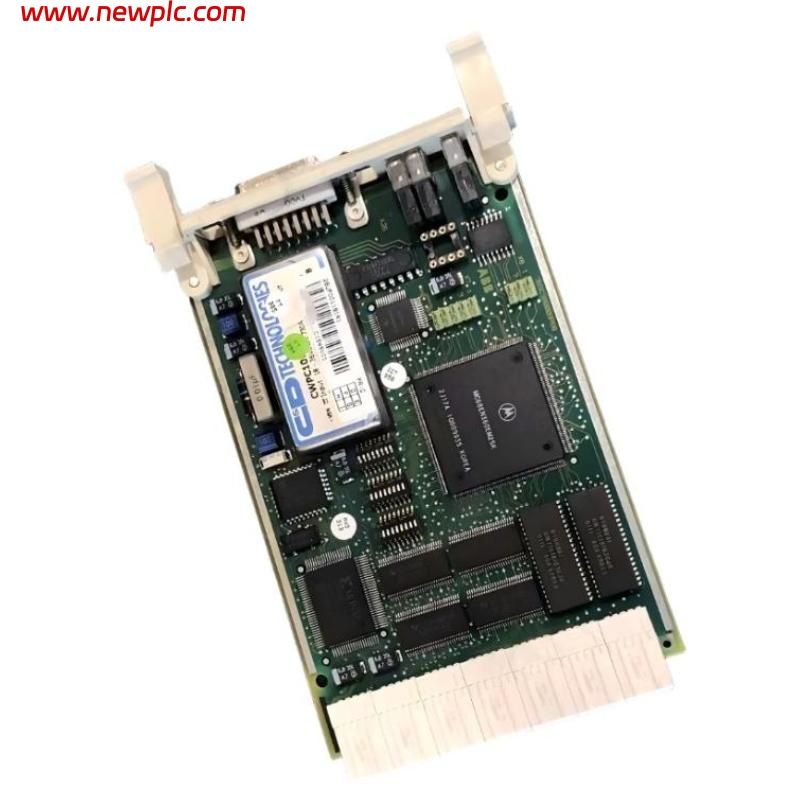

| Product Model | ABB CI545V01 3BUP001191R1 |
| Function | Ethernet submodule used for network communication within ABB control and automation systems |
| Module Type | Industrial Ethernet communication interface module |
| Network Standard | 10/100 Mbps Ethernet |
| Protocol Support | Supports ABB system protocols and standard industrial Ethernet communication |
| Ports | RJ45 Ethernet interface for controller and system network integration |
| Power Supply | Powered through the system backplane; typical 24 VDC system input |
| Isolation | Galvanic isolation between network port and internal circuitry |
| Diagnostics | LED indicators for link, activity, and communication status |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Mounting Method | Installed on ABB system racks as a communication expansion submodule |
| Dimensions | 260 × 30 × 120 mm |
| Weight | 0.17 kg |
FAQ
FAQ
Q1: What is the main purpose of the ABB CI545V01 Ethernet submodule?
A1: It provides Ethernet communication capability for ABB controllers, enabling integration with plant networks and external systems.
Q2: What Ethernet standard does the module support?
A2: It supports 10/100 Mbps Ethernet for industrial communication.
Q3: Does the CI545V01 offer diagnostic indicators?
A3: Yes. It includes LEDs for link status, communication activity, and network condition.
Q4: How is the module powered?
A4: The module receives power directly from the system backplane, eliminating the need for external power wiring.
Q5: Is the Ethernet port electrically isolated?
A5: Yes. It features galvanic isolation to protect the controller and internal circuitry from network-side disturbances.
Q6: Can the CI545V01 be used with multiple ABB controller families?
A6: It is compatible with ABB systems that support this specific communication module form-factor and backplane interface.
Q7: What type of cable connection does the module use?
A7: It uses a standard RJ45 connector for Ethernet networks.
Q8: How does the module maintain reliable communication in industrial environments?
A8: It employs an EMI-resistant design, isolated communication circuits, and robust error-handling to ensure stable network performance.
