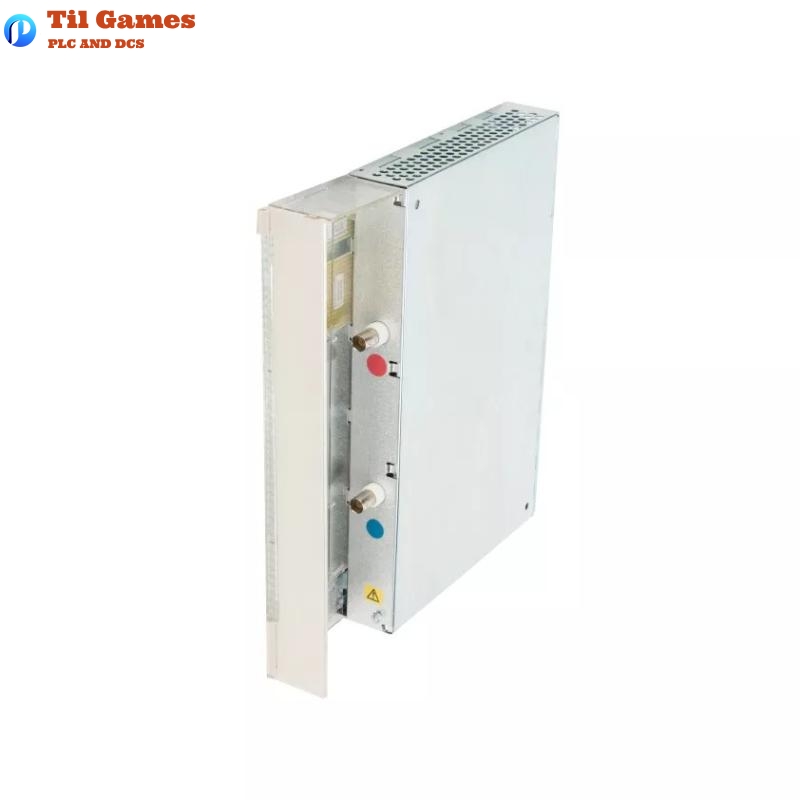

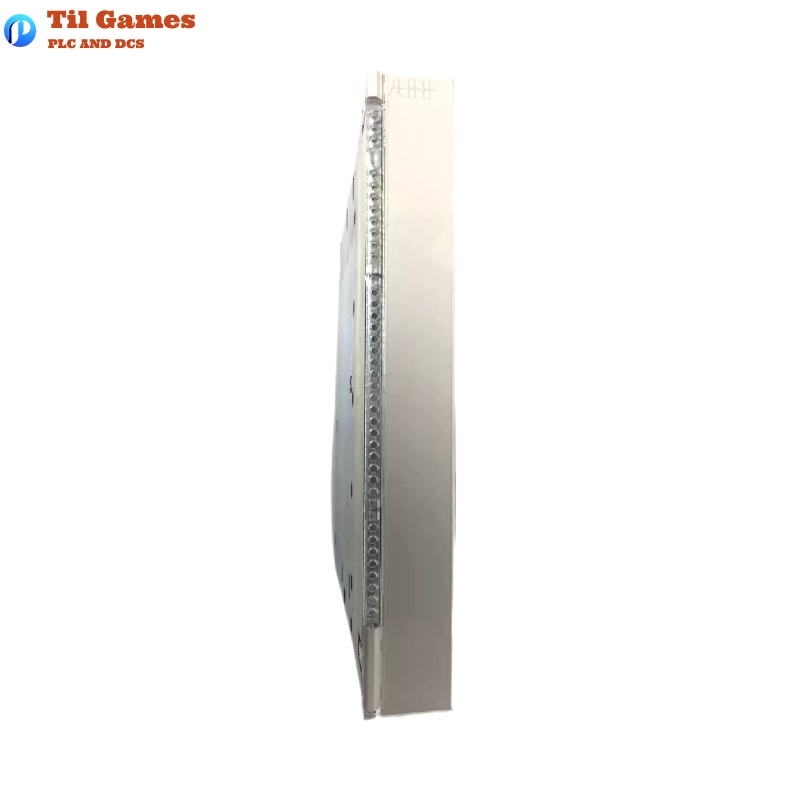

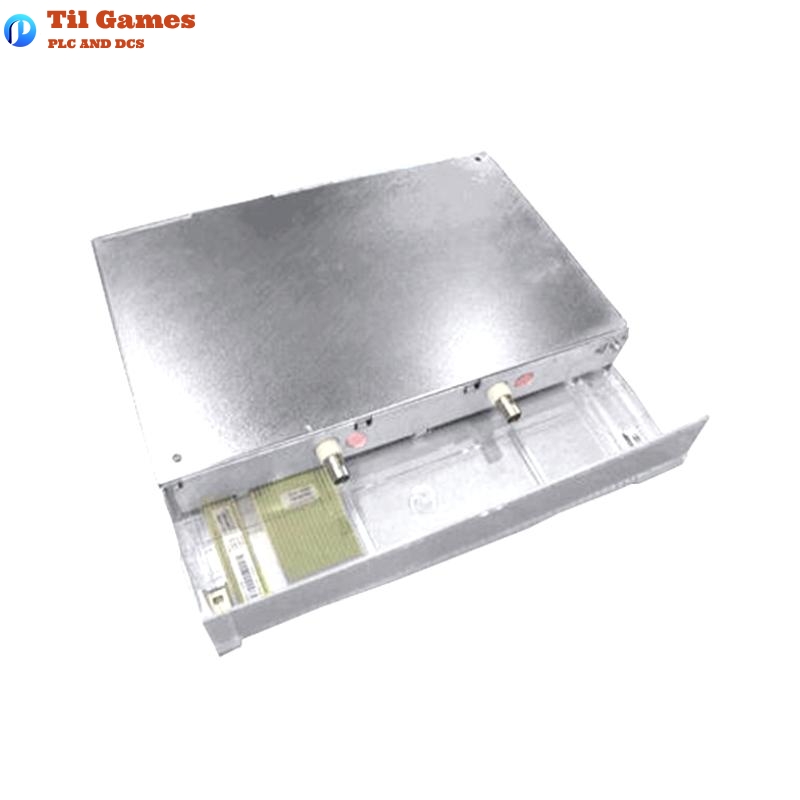

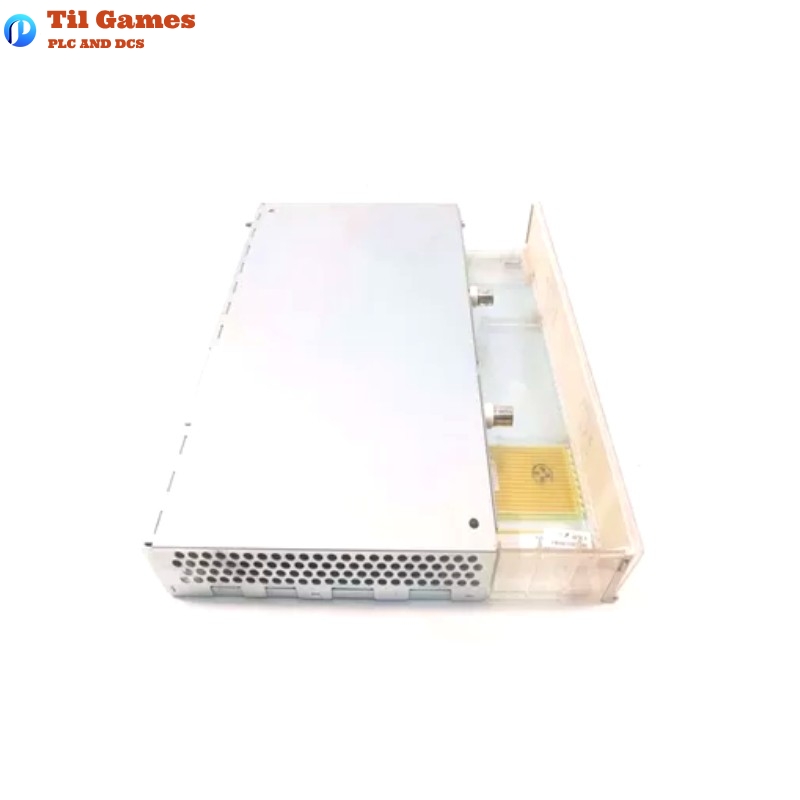

ABB CI630 3BSE011000R1 AF100 Communication Interface Module

Frequently Asked Questions (FAQ)

Q1: What type of communication media is supported by the CI630 module?
A1: The CI630 supports coaxial media and includes an integrated modem for direct connection to the AF 100 coaxial bus.

Q2: Can the CI630 module be used in a redundant configuration?
A2: Yes, the CI630 supports both media and communication interface redundancy. When used redundantly, it must be installed in positions 1 and 2 of the Basic Station.

Q3: What is the purpose of using the backup communication interface in CI630 redundancy?
A3: The backup CI630 supervises the primary CI630, receives input CDPs, and ensures communication continuity by taking over if the primary fails.

Q4: Does CI630 support bus master functionality?
A4: Yes, CI630 must be configured as bus master in redundant setups to manage bus traffic and perform timing and data control functions.

Q5: What is the maximum allowable difference in cable length between redundant paths?
A5: For the CI630 with coaxial media, the maximum cable length difference between redundant lines must not exceed 1200 meters.

Q6: How is the bus address determined for primary and backup CI630 modules?
A6: The primary CI630 uses the configured station address. The backup CI630 uses the same station address plus 80.

Q7: Is the CI630 suitable for high-availability applications?
A7: Yes, the CI630 is designed for high-availability systems, supporting redundant buses and interfaces to ensure uninterrupted operation.

Q8: Can CI630 be hot-swapped during operation?
A8: Yes, due to the use of BNC T-adapters and drop cables, a faulty CI630 module can be replaced without interrupting the communication on the AF 100 network.

3BSE011000R1 ABB AF100 CI630 Communication Interface Module
