Technical Specifications
| Parameter | Value |
|---|---|

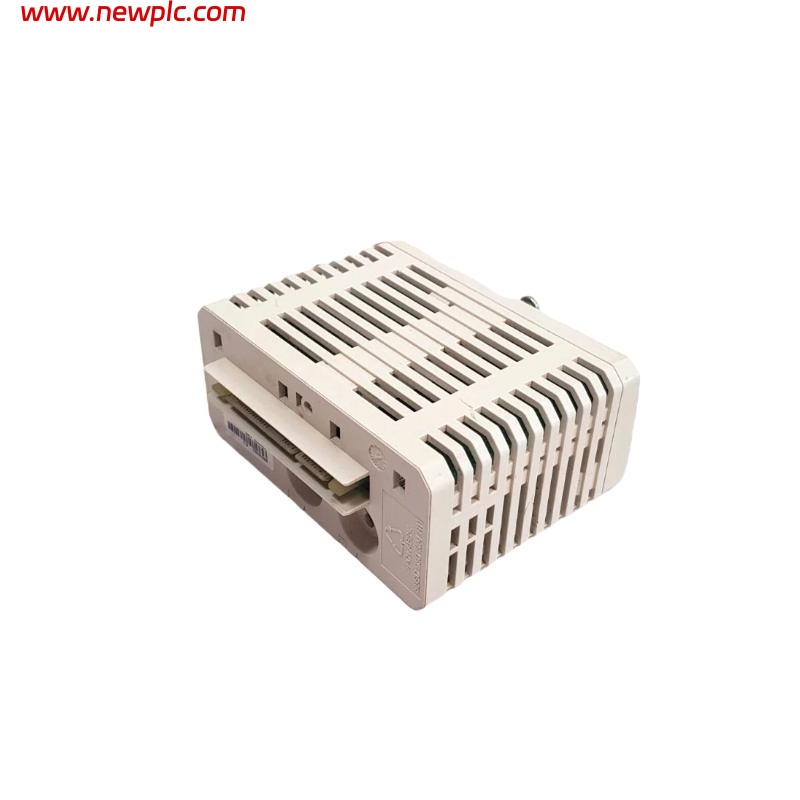

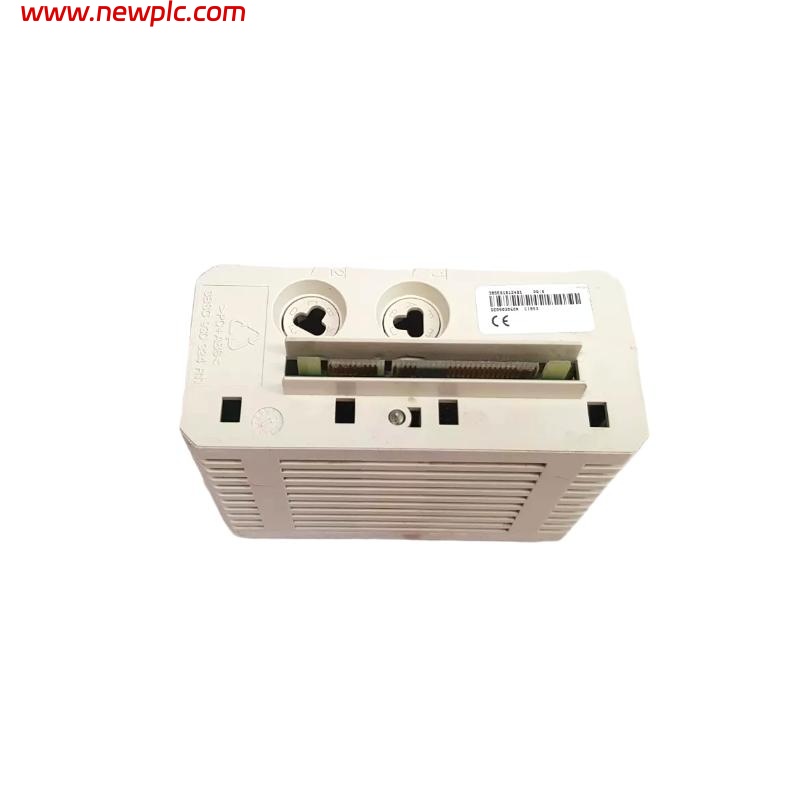

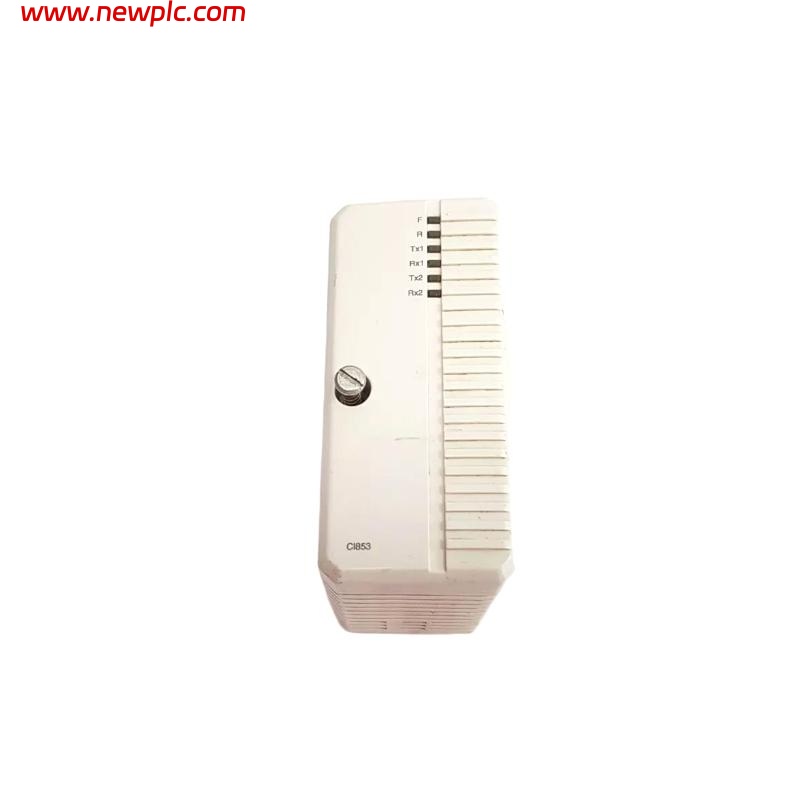

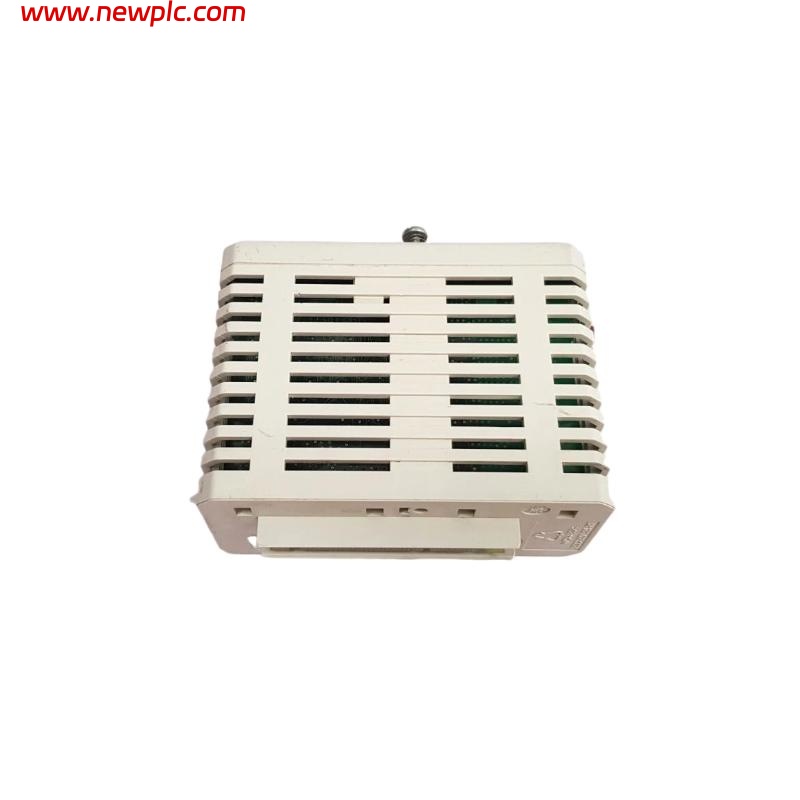

| Product Model | ABB CI853 3BSE018124R1 |
| Communication Protocols | COMLI, MODBUS RTU, Siemens 3964R, Self-defined Serial Communication |
| Master/Slave Mode | COMLI: Master/Slave; MODBUS RTU: Master only |
| Number of Channels | 2 |
| Transmission Speed | 75 – 19,200 b/s |
| Line Redundancy | No |
| Module Redundancy | No |
| Hot Swap | Yes |
| Connector Type | RJ-45 female (8-pin) |
| Max Units on CEX Bus | 12 |
| Power Consumption | 24 V DC, typ. 100 mA |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Corrosion Protection | G3 compliant to ISA 71.04 |
| Protection Class | IP20 (EN60529, IEC 529) |
| Certifications | CE, ABS, BV, DNV-GL, LR |
| Compliance | RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU |
| Dimensions (W × H × D) | 59 × 185 × 127.5 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: Which communication protocols are supported by this module?
A1: It supports COMLI, MODBUS RTU, Siemens 3964R, and self-defined serial communication protocols.
Q2: What modes are supported under the COMLI protocol?
A2: Both Master and Slave modes are supported.
Q3: Does MODBUS RTU support redundancy?
A3: Module redundancy is not supported, and only Master mode is available.
Q4: Does the module support hot swap?
A4: Yes, it supports hot swap for easier maintenance and replacement.
Q5: What is the maximum transmission speed?
A5: The maximum transmission speed is 19,200 b/s.
Q6: What is the protection class of this module?
A6: The protection class is IP20.
Q7: What is the typical power consumption of the module?
A7: The typical power consumption is 100 mA at 24 V DC.
Q8: What are the dimensions and weight of the module?
A8: Dimensions are 185 × 59 × 127.5 mm, and weight is 0.2 kg.
