Technical Specifications
| Item | Description |
|---|---|

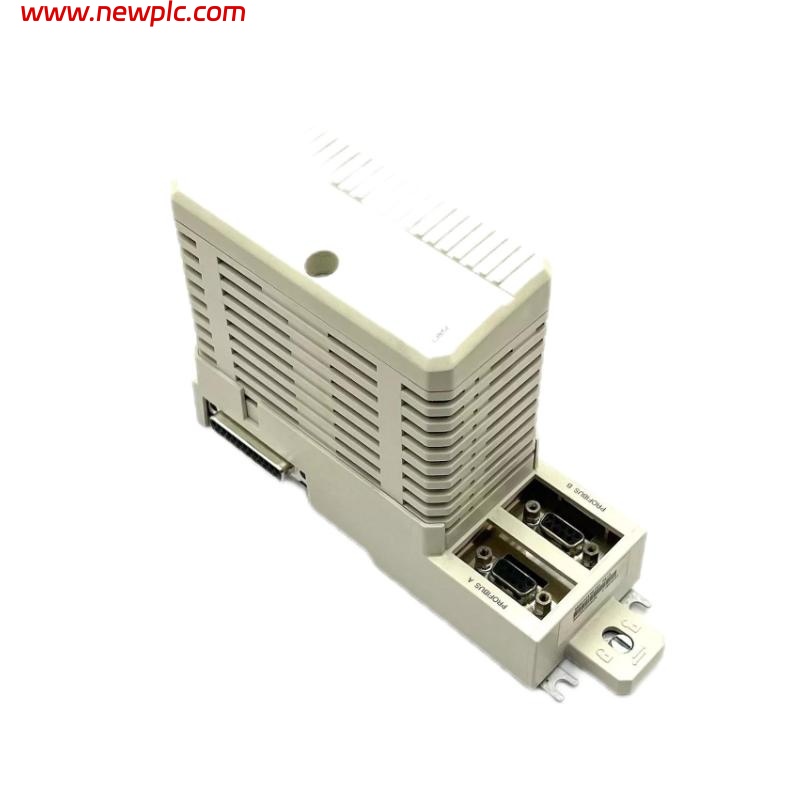

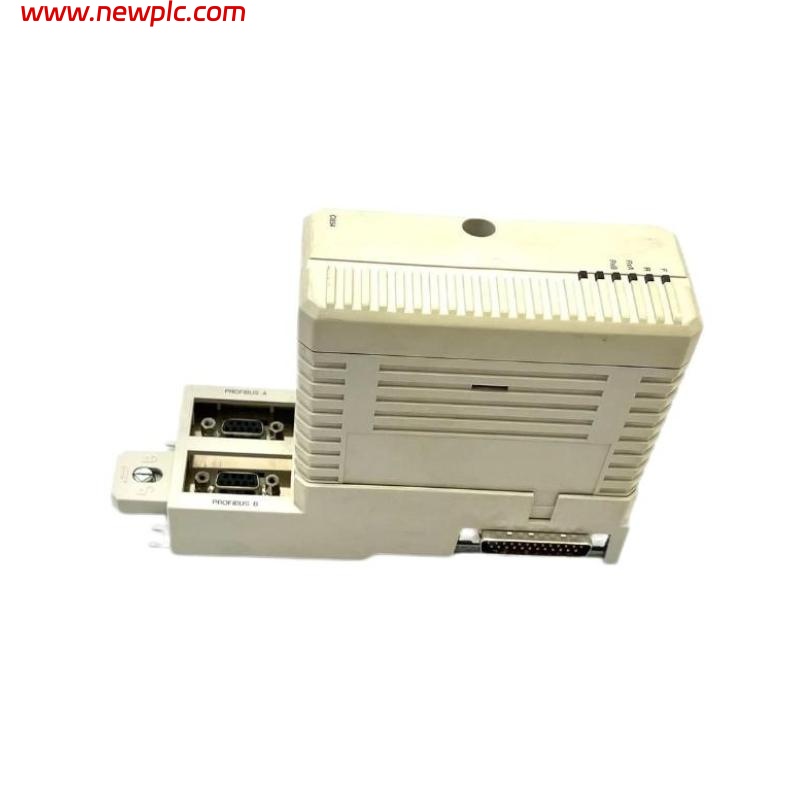

| Product Model | ABB CI854K01 3BSE025961R1 |
| Product Type | Communication Interface Module |
| Manufacturer | ABB |
| Function | Provides communication between ABB control systems and PROFIBUS-DP networks |
| Supported Protocol | PROFIBUS-DP |
| Communication Speed | Up to 12 Mbit/s |
| Interface Type | Dual-channel (redundant) communication ports |
| Power Supply | 24 V DC |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -25 to 70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Cooling Method | Natural convection |
| Mounting Type | DIN-rail or module rack mounting |
| Compatibility | ABB AC 800M controller family |
| Diagnostic Functions | Status LEDs and communication error monitoring |
| Protection Type | Overvoltage and reverse polarity protection |
| Dimensions | 250 x 158 x 87 mm |
| Weight | 0.6 kg |
FAQ
FAQ
Q1: What is the main function of the ABB CI854K01 module?
It acts as a communication interface between ABB control systems and PROFIBUS-DP field devices.
Q2: Which ABB systems are compatible with the CI854K01?
It is fully compatible with ABB AC 800M control systems.
Q3: Does this module support redundant communication?
Yes, it includes dual-channel ports that support redundant configurations for higher system reliability.
Q4: What communication speed does it support?
It supports data transmission rates up to 12 Mbit/s.
Q5: How is the module powered?
It operates on a 24 V DC power supply.
Q6: What diagnostic features are included?
It has LED indicators for power, communication status, and fault detection.
Q7: Can it be mounted on a DIN rail?
Yes, it can be installed either on a DIN rail or within a system rack.
Q8: Does ABB provide an installation manual?
Yes, a detailed installation and configuration manual is provided with the product.
