Technical Specifications
| Parameter | Specification |
|---|---|

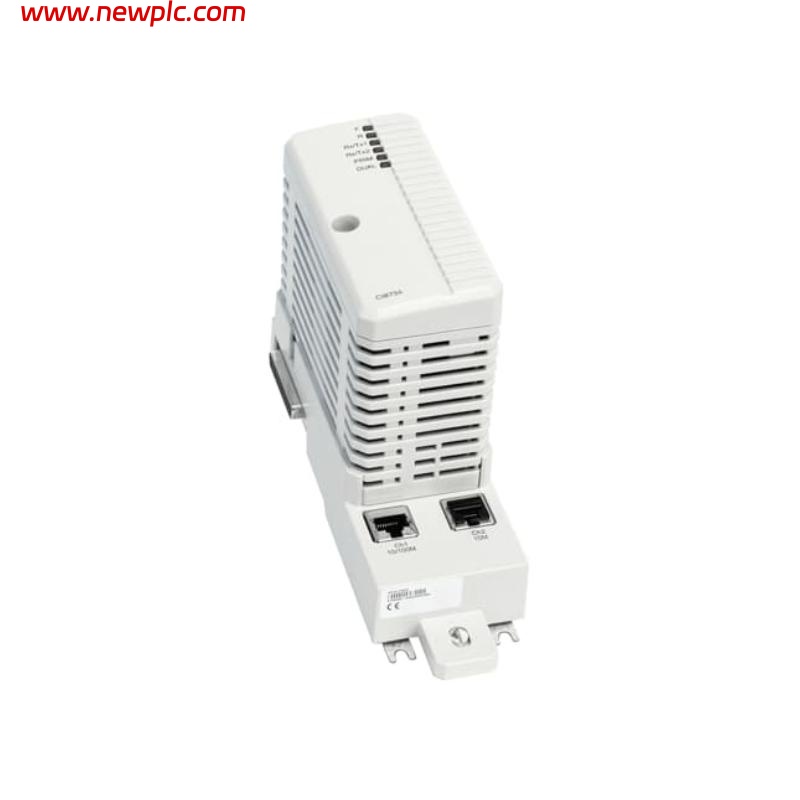

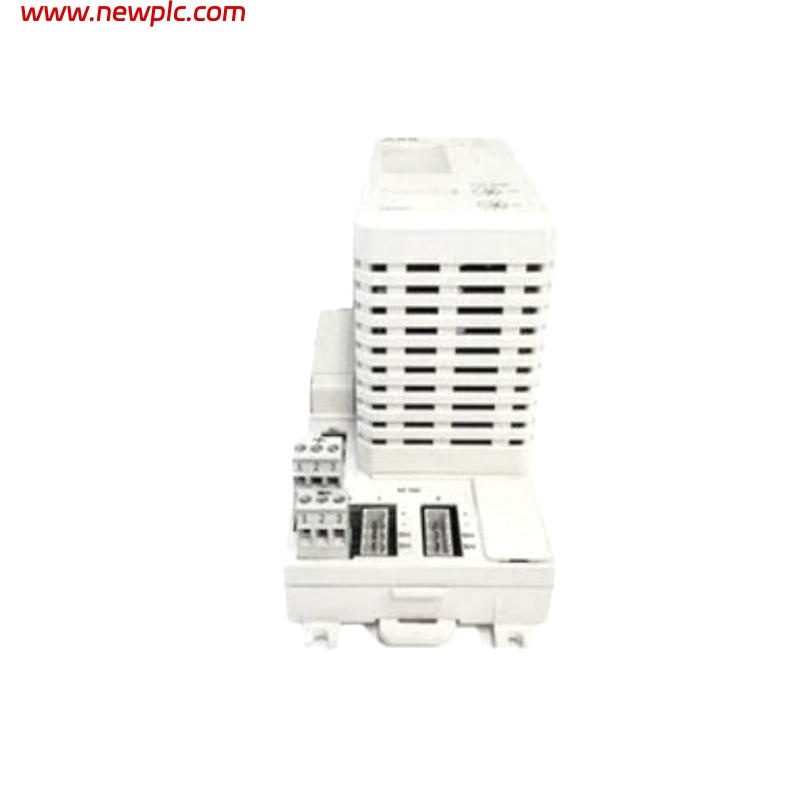

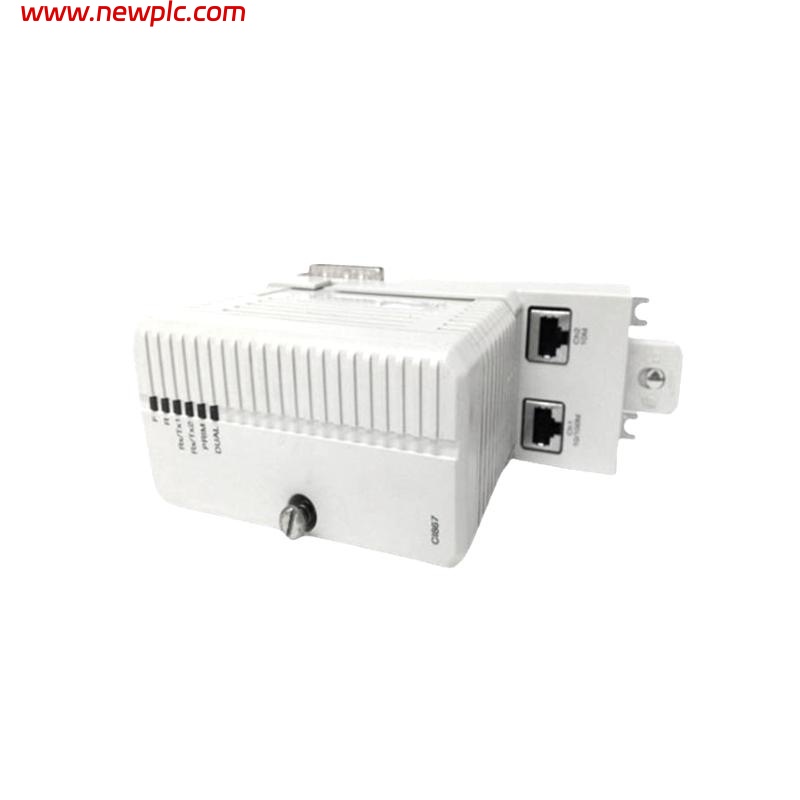

| Product Name | CI873AK01 / CI873A AC 800M Communication Interface Module |
| ABB Part Number | 3BSE092695R1 |
| Supported System | System 800xA 6.0.3.3, 6.1.1 and later versions |
| Communication Protocols | EtherNet/IP, DeviceNet |
| Redundancy Support | 6 redundant pairs from 5.1 FP4 |
| Baseplate | TP867 with 2 RJ45 connectors (CH1 100 Mbps used) |
| CEX-Bus | Contains CEX-Bus logic, communication unit, DC/DC converter |
| Supply Voltage | +24 V through CEX-Bus |
| Dimensions | 59 × 186 × 127.5 mm |
| Weight | 0.7 kg |
FAQ
FAQ
-
Q1: What is the maximum number of CI873A modules supported in a redundant configuration?
A1: The module supports up to 6 redundant pairs from System 800xA 5.1 FP4 onward. -
Q2: Which communication protocols are supported by CI873A?
A2: CI873A supports EtherNet/IP and DeviceNet protocols for external device connectivity. -
Q3: Can CI873A work with earlier versions of System 800xA than 6.0.3.3?
A3: No, CI873A only operates with System 800xA 6.0.3.3, 6.1.1, and later versions. -
Q4: Which RJ45 connector on the TP867 baseplate is active for communication?
A4: Only the CH1 connector is used, supporting 100 Mbps. -
Q5: How is the CI873A powered?
A5: It receives +24 V supply through the CEX-Bus via the expansion unit. -
Q6: What internal components are included in the CI873 expansion unit?
A6: It includes CEX-Bus logic, communication unit, and DC/DC converter. -
Q7: What are the module’s physical dimensions and weight?
A7: Dimensions: 59 × 186 × 127.5 mm, Weight: 0.7 kg. -
Q8: Is CI873A compatible with non-ABB Ethernet devices?
A8: Yes, it communicates with external Ethernet devices using the EtherNet/IP protocol.
