Technical Specifications
| Item | Specification |
|---|---|

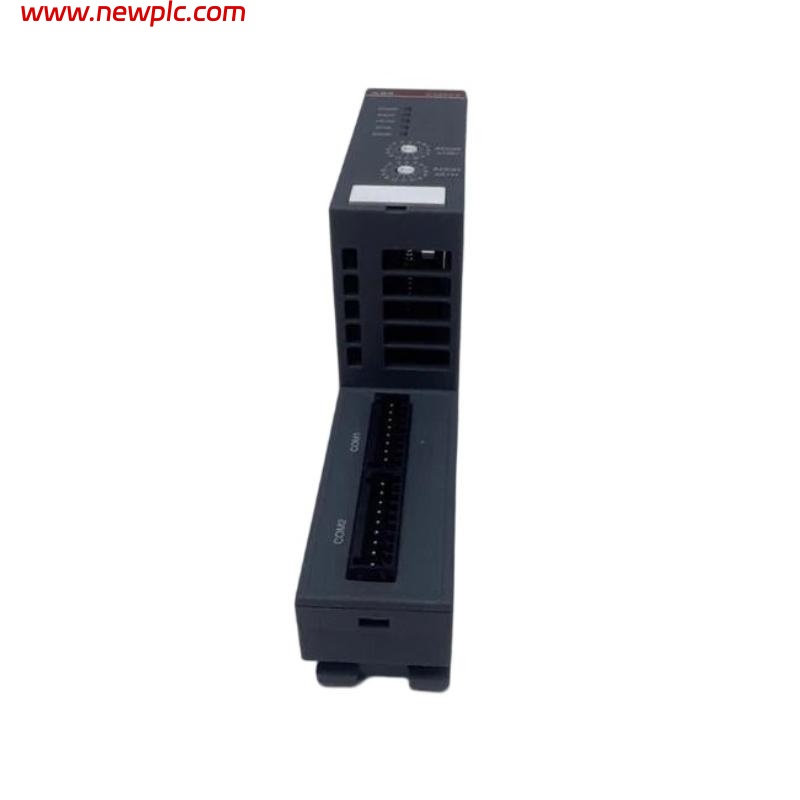

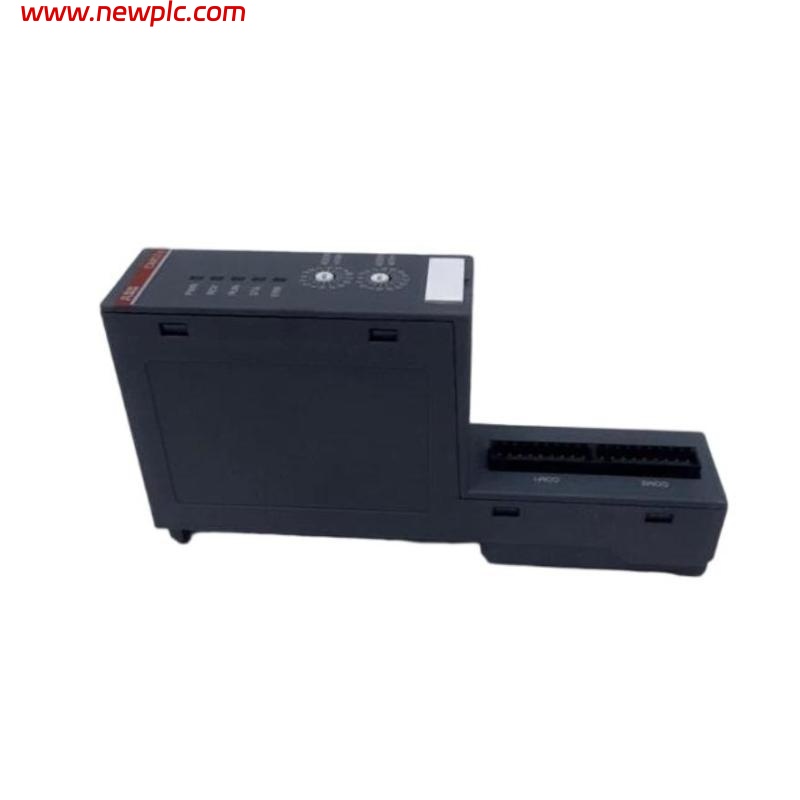

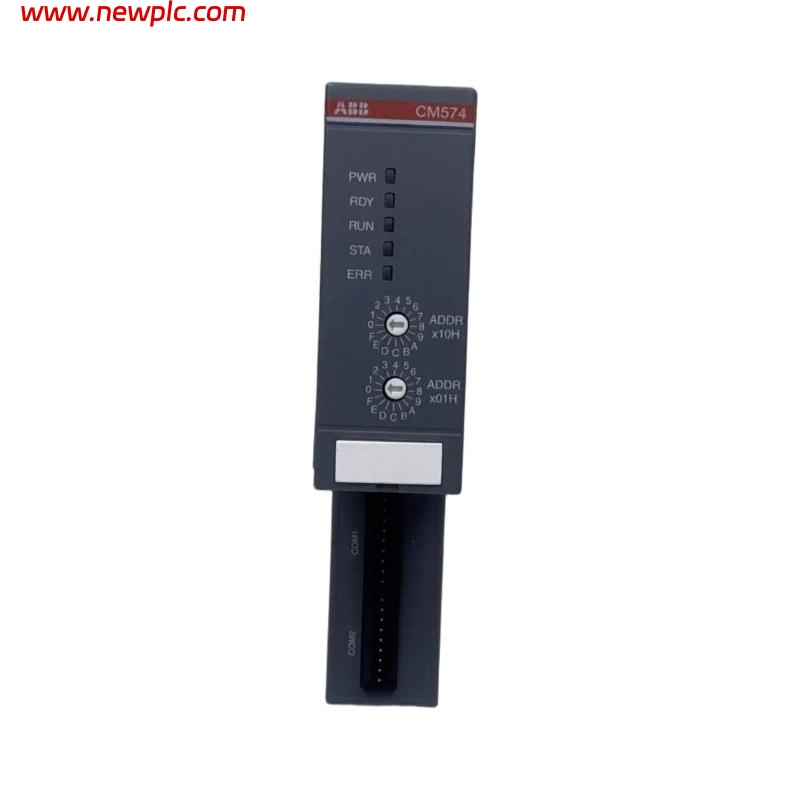

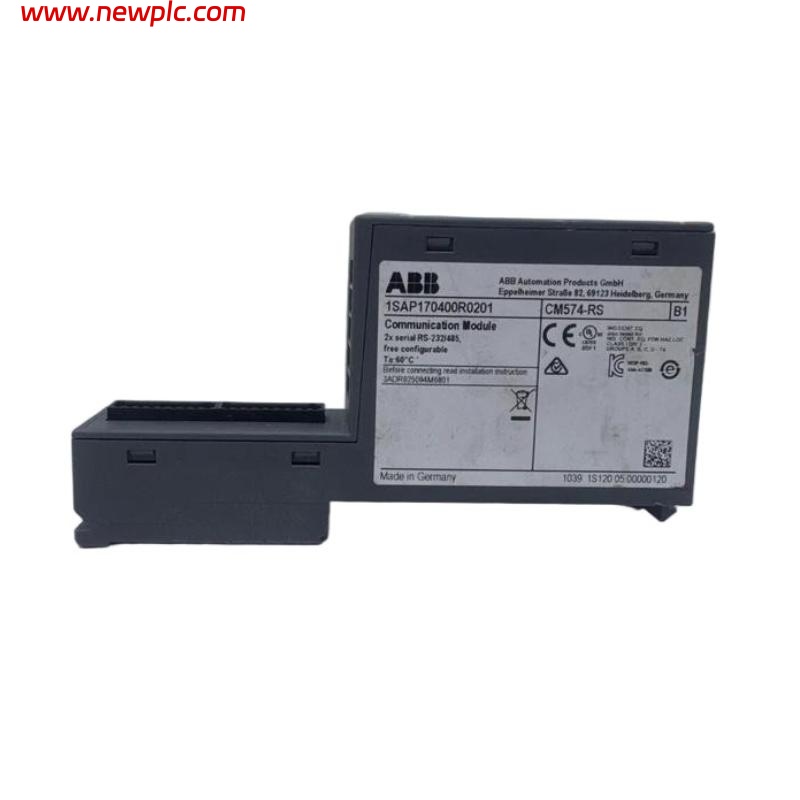

| Product Model | ABB CM574-RS 1SAP170400R0201 Communication Module |
| Module Type | Communication Module |
| System Platform | Designed for ABB CM574 PLC series |
| Communication Interface | RS-232/RS-485 serial interface |
| Supported Protocols | Modbus RTU, ABB compatible protocols |
| Baud Rate Range | 300 – 115200 bps |
| Redundancy | Not supported |
| LED Indicators | Status LEDs for communication monitoring |
| Power Requirement | 5 VDC (powered from PLC main module) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 62 × 135 × 28 mm |
| Weight | 0.095 kg |
FAQ
FAQ
Q1: What is the main application of this module?
A1: Provides a reliable serial communication interface for ABB CM574 PLC, enabling data exchange with other devices.
Q2: Which communication interfaces are supported?
A2: Supports RS-232 and RS-485 serial interfaces.
Q3: Which communication protocols are supported?
A3: Supports Modbus RTU and ABB compatible protocols.
Q4: What is the baud rate range?
A4: Supports 300 to 115200 bps.
Q5: Does the module support redundancy?
A5: No, redundancy is not supported.
Q6: What are the dimensions and weight?
A6: Dimensions are 62 × 135 × 28 mm, and weight is 0.095 kg.
Q7: How is the module status monitored?
A7: Through LED indicators showing communication status.
Q8: What should be noted during installation?
A8: Install in a dedicated slot next to the CM574 PLC main module, ensure good ventilation, and avoid electromagnetic interference.
