Technical Specifications
| Item | Description |
|---|---|

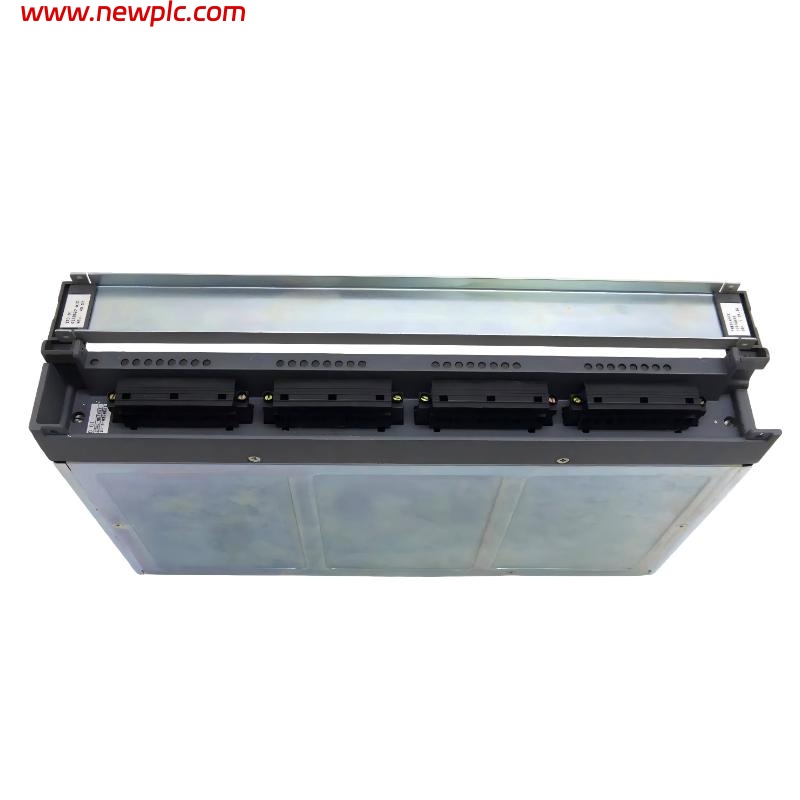

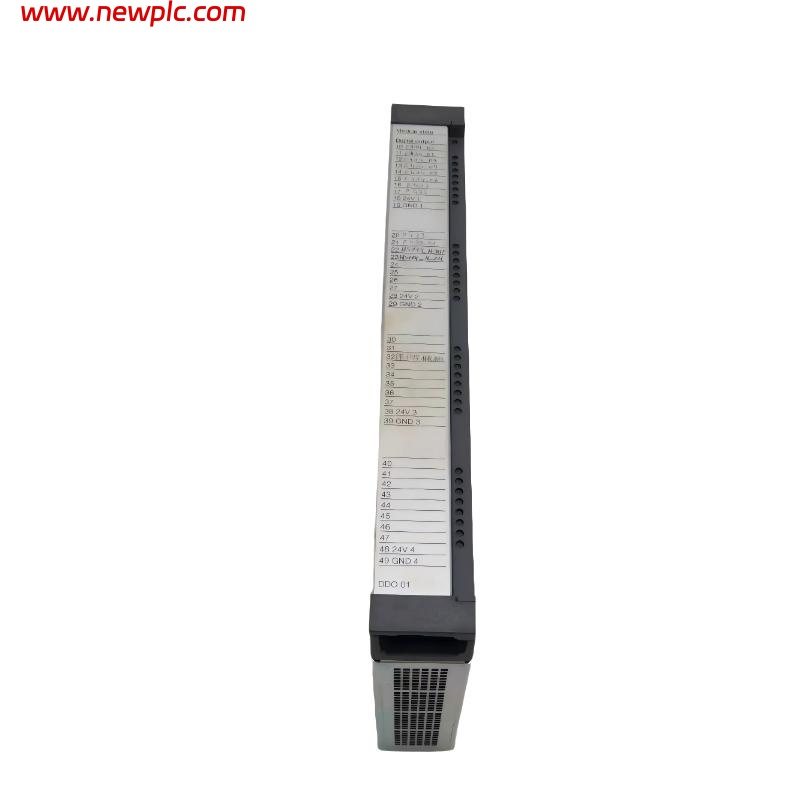

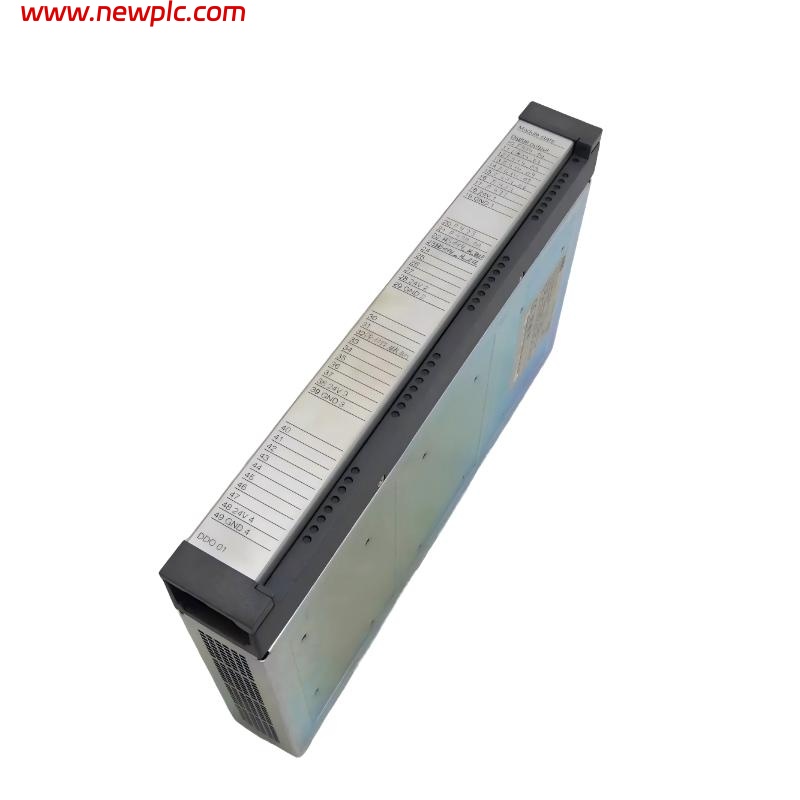

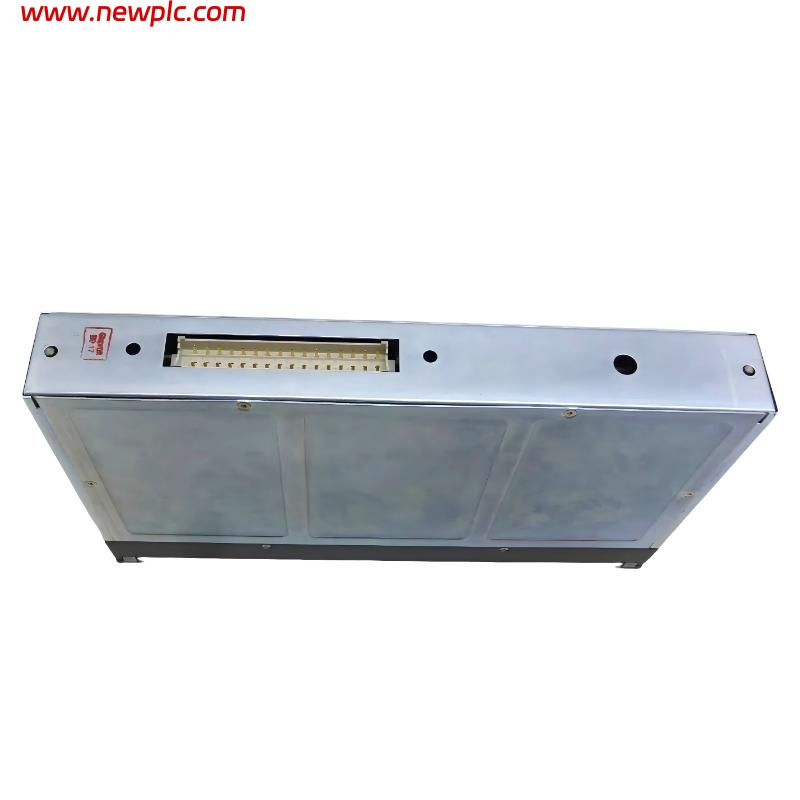

| Product Model | ABB DDO 01 0369627MR |
| Function | Digital output module for ABB automation systems, providing controlled outputs to field devices based on CPU commands |
| Module Type | High-integrity digital output interface |
| Output Channels | Multiple isolated digital output channels suitable for driving actuators, relays, and signaling devices |
| Output Voltage | Compatible with system voltage levels; typically 24–60 VDC |
| Output Current | Individually rated per channel; supports high-current industrial loads |
| Isolation | Galvanic isolation between each output channel and system backplane |
| Switching Speed | Fast response suitable for real-time control applications |
| Protection | Short-circuit and overload protection per channel |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Diagnostics | LED indicators for each channel to show output status and fault conditions |
| Mounting Method | Rack-mounted within ABB system backplane |
| Dimensions | 260 × 45 × 140 mm |
| Weight | 1.5 kg |
FAQ
FAQ
Q1: What is the main function of the ABB DDO 01 0369627MR module?
A1: It provides controlled digital outputs for field devices, enabling relays, actuators, and signaling equipment to operate based on CPU instructions.
Q2: How many output channels are available on this module?
A2: The module has multiple isolated output channels, each capable of independently controlling industrial loads.
Q3: Does the module include protection against electrical faults?
A3: Yes. Each channel includes protection against short circuits and overload conditions.
Q4: Are there diagnostics available to monitor the module?
A4: Yes. LEDs provide visual feedback on each channel’s status and indicate fault conditions.
Q5: Can the module handle high-current outputs for industrial devices?
A5: Yes. Each channel is designed to drive high-current devices typically used in industrial automation.
Q6: What type of isolation is provided for safety?
A6: Galvanic isolation is provided between the output channels and the backplane to protect system electronics.
Q7: What is the operating temperature range for the module?
A7: The module operates reliably from –20 °C to +70 °C.
Q8: How fast can the module switch outputs for real-time control?
A8: The module is designed for fast switching, suitable for real-time industrial control applications.
