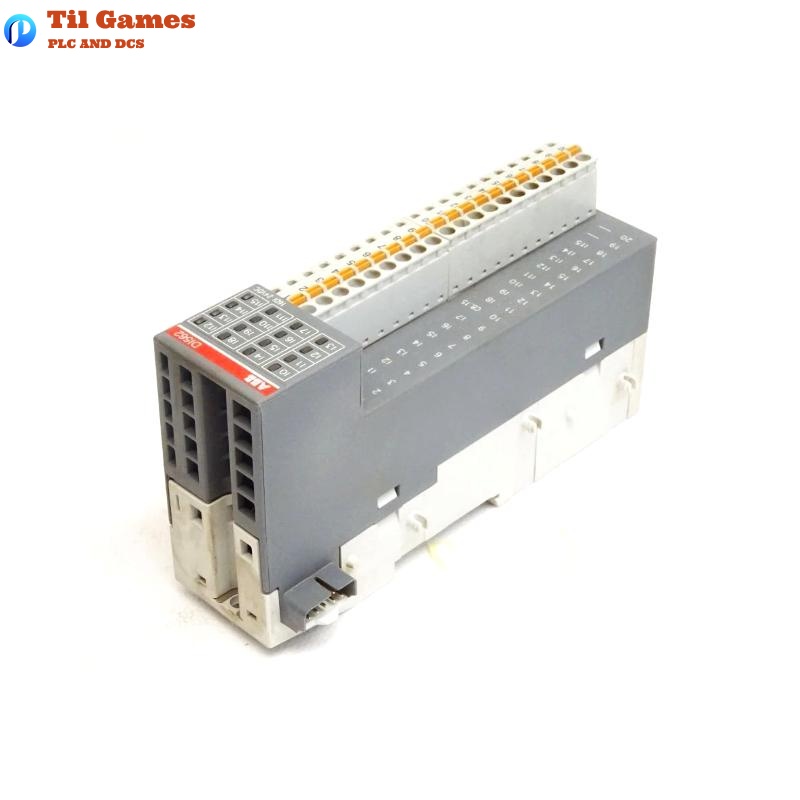

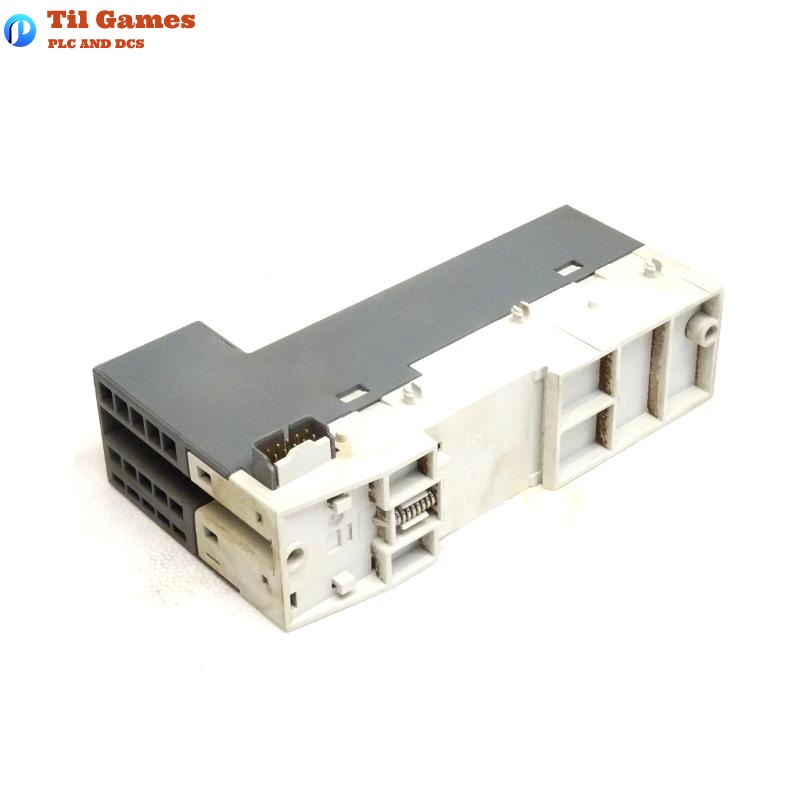

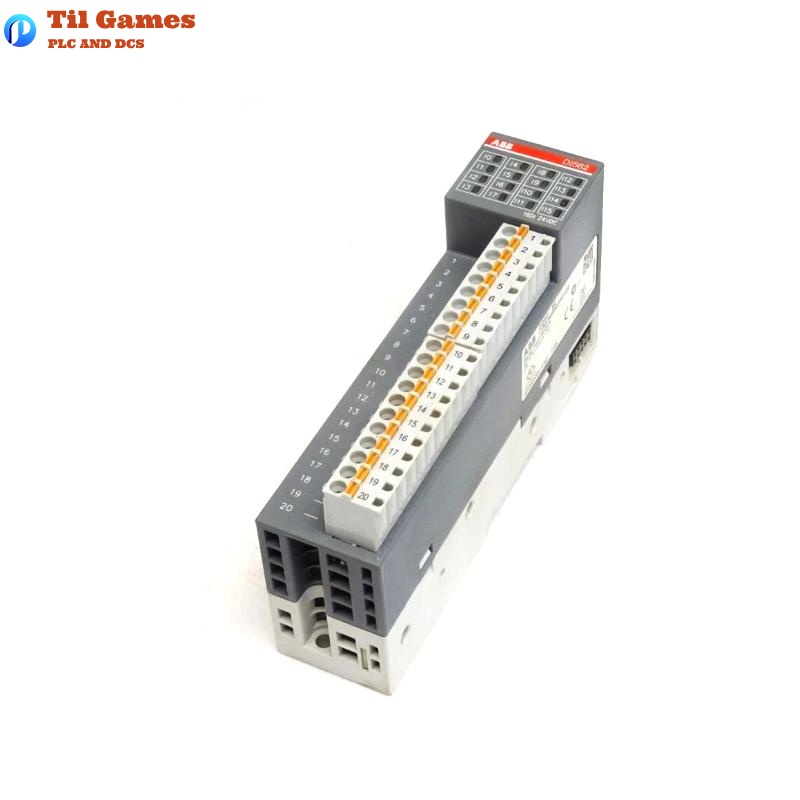

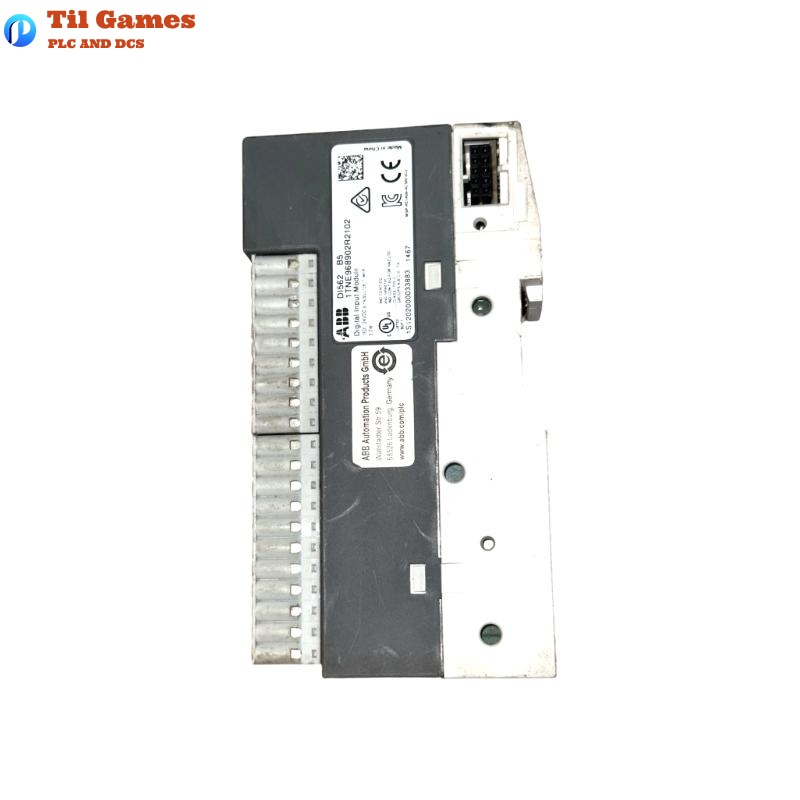

ABB DI562 1TNE968902R2102 Digital Input Module

Frequently Asked Questions (FAQ)

Q1: What types of input signals does DI562 support?
A1: DI562 supports 24V DC and 24V AC 50/60Hz digital input signals.

Q2: Are the input channels electrically isolated by group?
A2: Yes, the module divides the 16 inputs into two electrically isolated groups of 8 channels each.

Q3: What is the input voltage range?
A3: The input voltage range is -30V to +30V DC and 0V to 27V AC.

Q4: What is the typical input current per channel?
A4: Typically 5mA at 24V, around 1mA at 5V, and less than 8mA at 30V.

Q5: What is the input signal delay time?
A5: The typical delay is 8 milliseconds for signal transitions.

Q6: How can the module be mounted?
A6: The module supports both horizontal and vertical mounting, with derating required for vertical installation.

Q7: What is the maximum supported cable length for inputs?
A7: Up to 500 meters with shielded cable, 300 meters with unshielded cable.

Q8: Does the module have input signal indication?
A8: Yes, each input channel has a yellow LED that lights up when the input signal is high.

1TNE968902R2102 ABB DI562 Digital Input Module
