Technical Specifications
| Item | Specification |
|---|---|

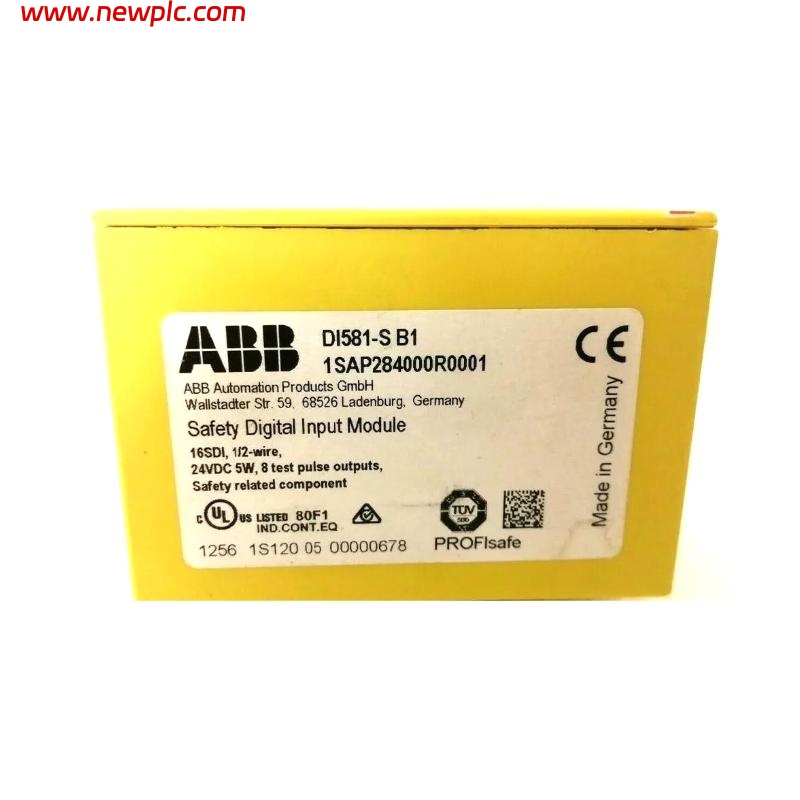

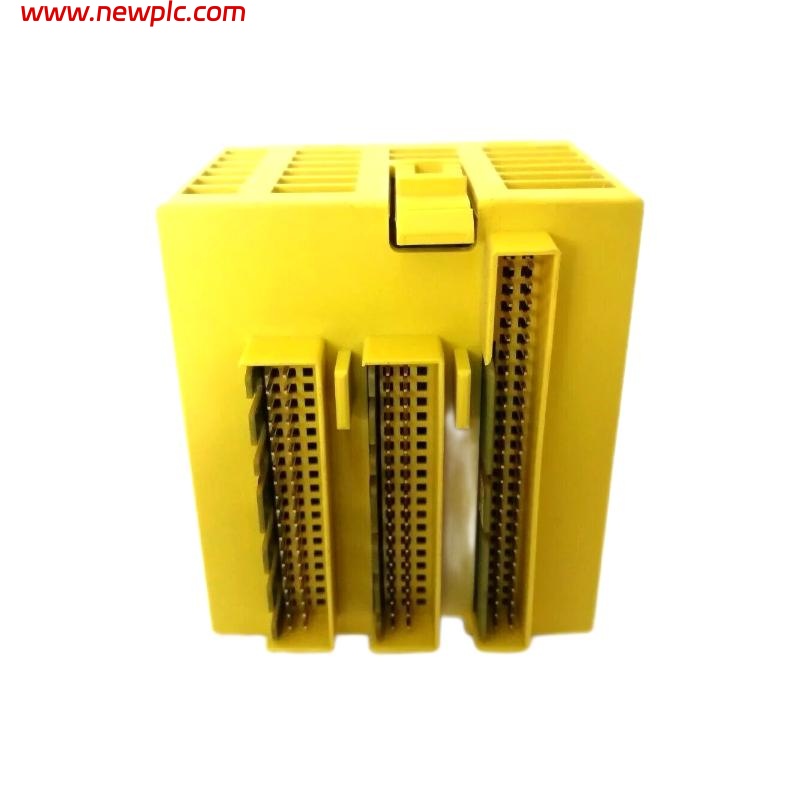

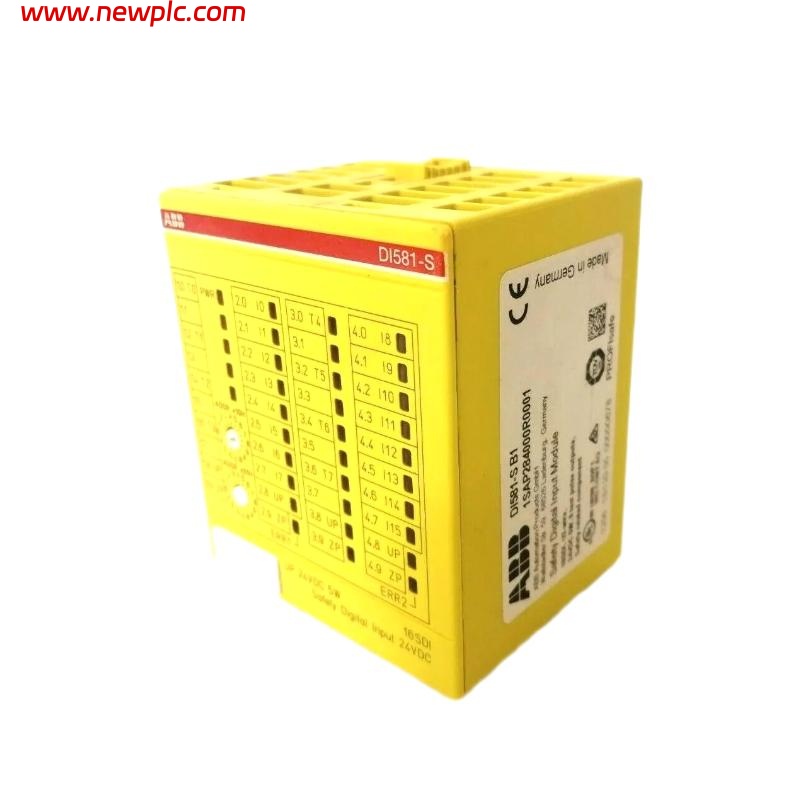

| Product Model | ABB DI581-S 1SAP284000R0001 Safety Digital Input Module |
| Type | Safety Digital Input Module |
| Function | Provides digital input acquisition and safety-related control functions for industrial automation |
| Input Channels | 16 digital inputs |
| Input Voltage | 24 VDC (nominal) |
| Input Type | Safety digital input, supports single or redundant configuration |
| Isolation | Optical isolation between channels and logic |
| Signal Delay | < 10 ms |
| Diagnostic Functions | Channel-level diagnostics, short-circuit detection, open-circuit detection |
| Communication | Via safety controller backplane bus |
| Power Requirement | 24 VDC (supplied by system) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Humidity Range | 5% to 90% (non-condensing) |
| Mounting Method | Rack mounting |
| Protection Class | IP20 |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.122 kg |
FAQ
FAQ
Q1: What is the main purpose of the DI581-S module?
A1: It is used for acquiring digital input signals and processing them in safety-related control applications.
Q2: How many input channels does the module have?
A2: It provides 16 digital input channels.
Q3: What is the input voltage of the module?
A3: The nominal input voltage is 24 VDC.
Q4: Does the module support redundancy?
A4: Yes, it supports both single and redundant configurations.
Q5: Does it feature diagnostic functions?
A5: Yes, it includes channel-level diagnostics, short-circuit detection, and open-circuit detection.
Q6: How does the module communicate with the control system?
A6: Communication is achieved through the safety controller backplane bus.
Q7: What is the operating temperature range?
A7: The operating range is 0 °C to +55 °C.
Q8: What are the dimensions and weight of the module?
A8: Dimensions are 62 × 76 × 67.5 mm, and weight is approximately 0.122 kg.
