Technical Specifications
| Parameter | Description |
|---|---|

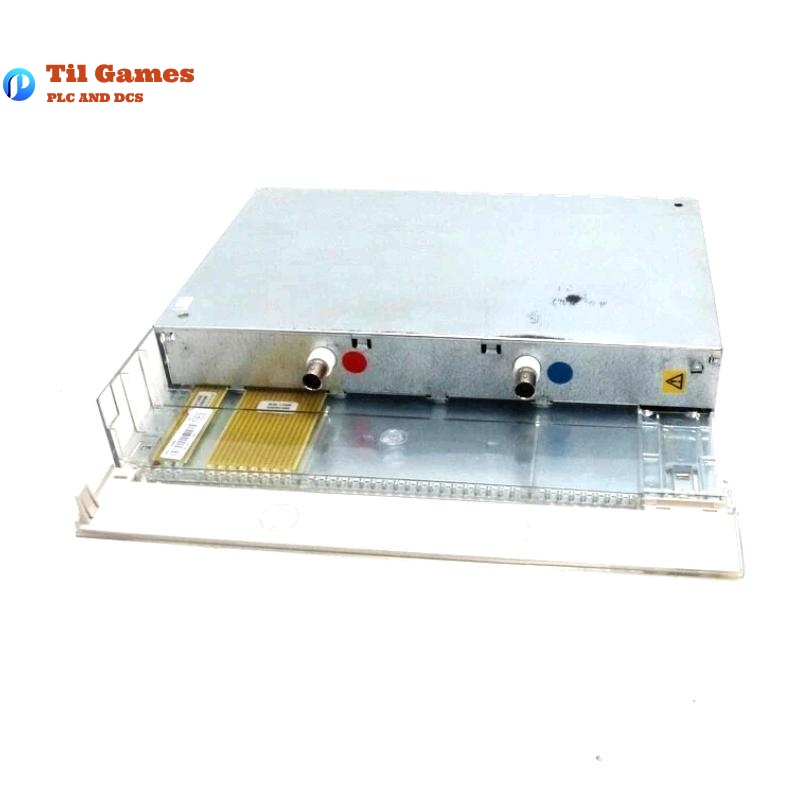

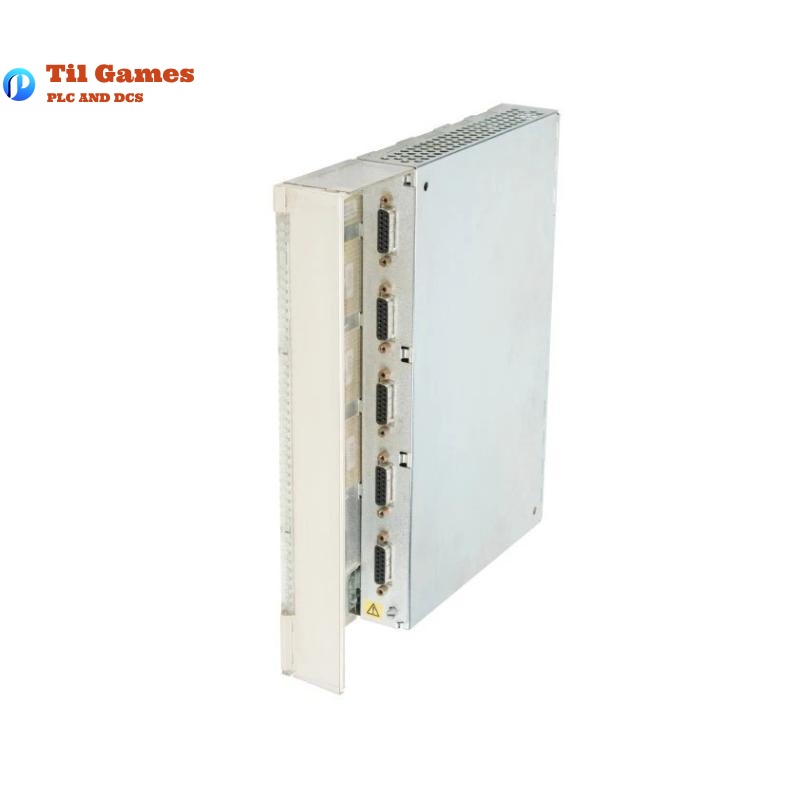

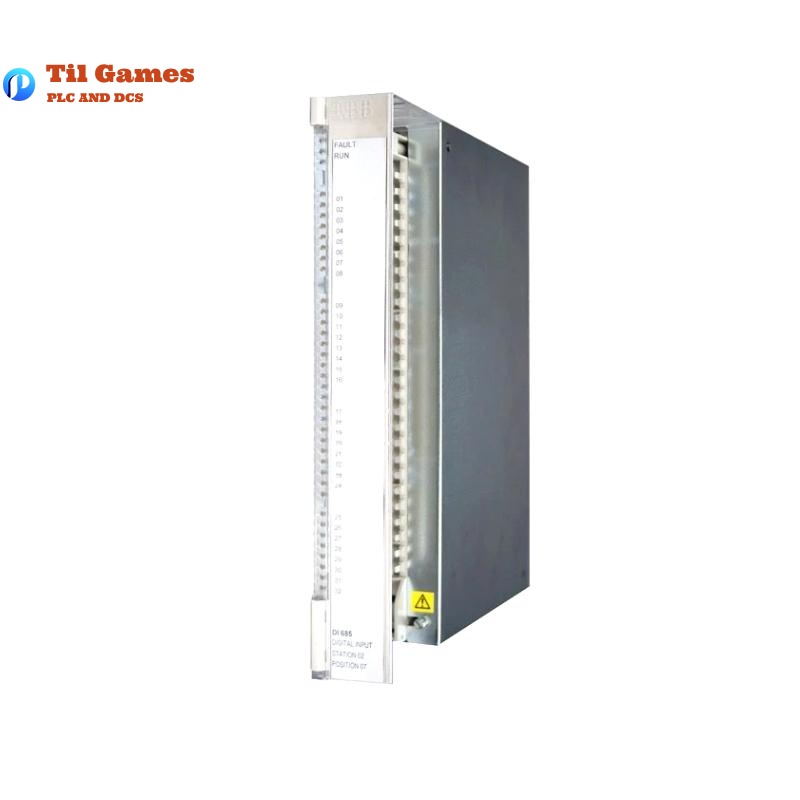

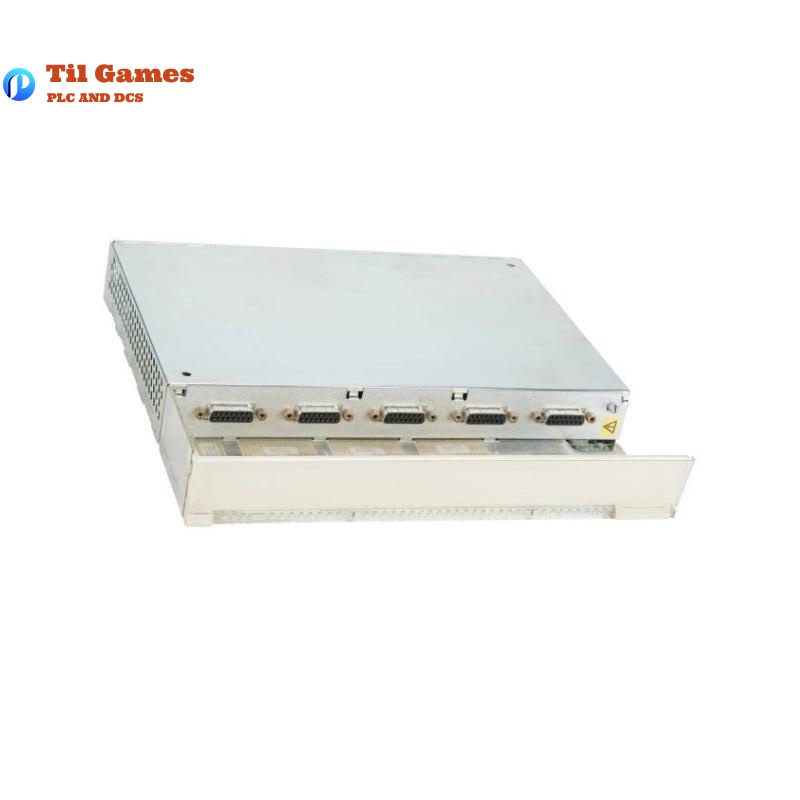

| Module Name | ABB DI685 Digital Input Module |
| Product Code | 3BDS005833R1 |
| Number of Channels | 32 digital input channels |
| Input Voltage Level | 24/48 V DC |
| Input Isolation | Opto-isolated in four groups |
| Power Supply | Internal 48 V sensor power supply |
| Special Features | Supports SOE (Sequence of Events), pulse catching, wire break detection |
| Module Type | S600 I/O Module |
| Wiring Method | Connected via terminal units, compatible with front connectors |
| Mounting Method | Plug-in installation, fits into S600 I/O subrack |
| Dimensions (W x H x D) | 252 x 273 x 40 mm |
| Weight | 1.24 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital input channels does the DI685 support?
A1: The DI685 module supports up to 32 digital input channels.
Q2: What input voltage levels are supported?
A2: It supports both 24 V and 48 V DC inputs.
Q3: Are the input signals opto-isolated?
A3: Yes, inputs are opto-isolated in groups of four.
Q4: Does the module provide internal sensor power?
A4: Yes, it provides an internal 48 V sensor power supply.
Q5: Is wire break detection available?
A5: Yes, the module includes wire break supervision functionality.
Q6: Does it support SOE (Sequence of Events)?
A6: Yes, it supports both SOE and pulse catching capabilities.
Q7: How is the module installed?
A7: The module is plug-in mounted into an S600 subrack.
Q8: What is the connection interface type?
A8: It uses terminal units or process connectors for wiring.
