Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | DI821 |
| Order Code | 3BSE008550R1 |
| Number of Channels | 8 channels |
| Input Voltage | 230 V AC/DC |
| Voltage Type | AC or DC |
| Channel Isolation | Individually isolated channels |
| Voltage Supervision | Ch.1 supervises Ch.2-4, Ch.8 supervises Ch.5-7 |
| Channel Conversion | Ch.1 and Ch.8 can be used as regular inputs if supervision is off |
| Channel Features | Current limiting, EMC protection, status LED, noise filter, isolation |
| ModuleBus Communication | Opto-isolated |
| Mounting | To be installed on S800 series MTU |
| Dimensions (W×H×D) | 45 × 102 × 119 mm |
| Weight | 0.18 kg |

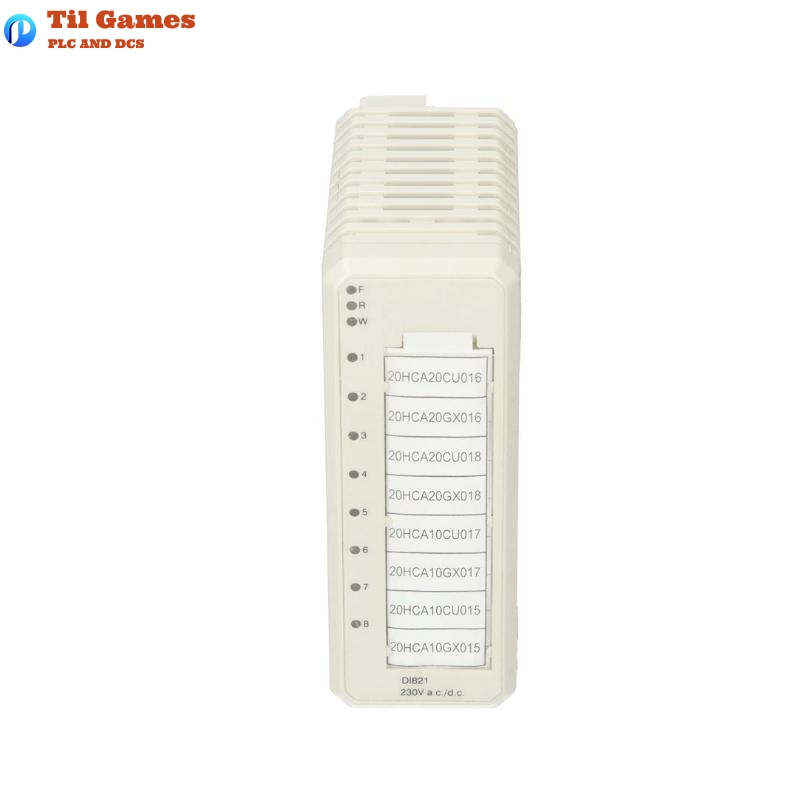

| LED Indicators | RUN (green), FAULT (red), WARNING (yellow) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the DI821 module support?
A1: It supports 230 V AC or DC digital input signals.
Q2: Are all input channels on the DI821 module isolated?
A2: Yes, each channel is optically isolated for safety and signal integrity.
Q3: How many input lines can DI821 accept?
A3: The module provides 8 individually isolated digital input channels.
Q4: Does the DI821 module have overvoltage protection?
A4: Each channel includes current limiting and EMC protection, providing overvoltage tolerance.
Q5: How does the voltage supervision function work on channels 1 and 8?
A5: Channel 1 supervises channels 2–4, and channel 8 supervises channels 5–7 unless supervision is disabled.
Q6: Does the module include LED indicators for status?
A6: Yes, it features individual channel status LEDs and indicators for RUN, FAULT, and WARNING.
Q7: Can this module be hot-swapped?
A7: Yes, the module can be replaced during operation, following appropriate safety procedures.
Q8: Does the DI821 support SOE (Sequence of Events) functionality?
A8: No, DI821 does not support SOE. For SOE functionality, models like DI825 are recommended.
