Technical Specifications
| Parameter | Value |
|---|---|

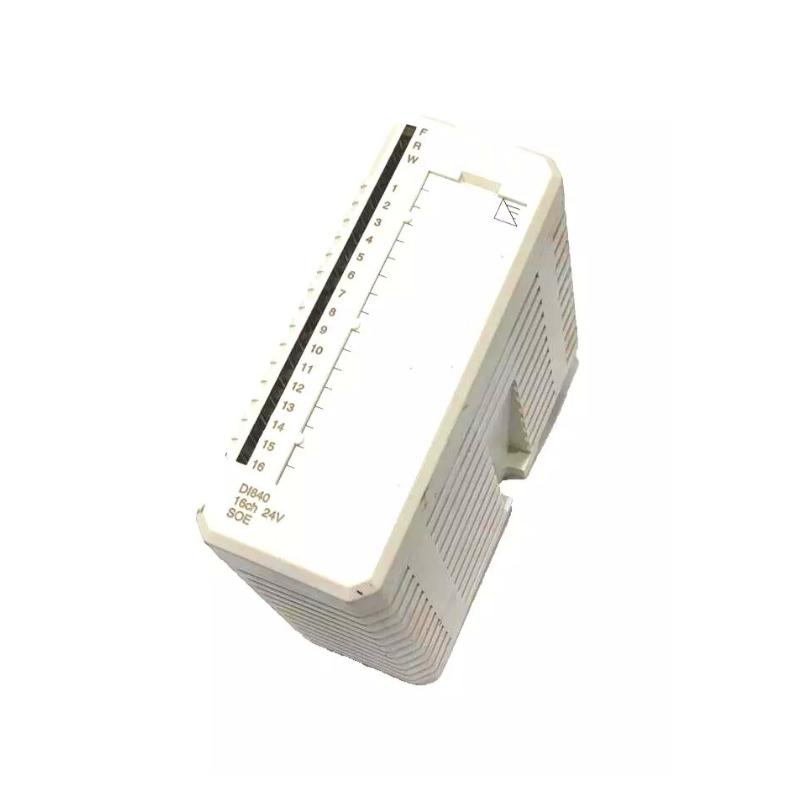

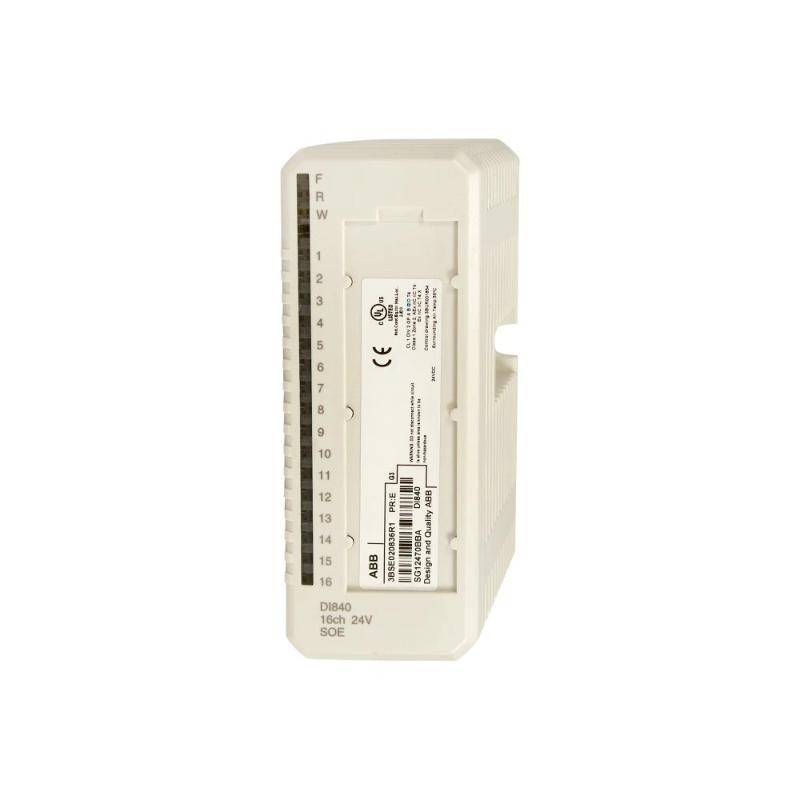

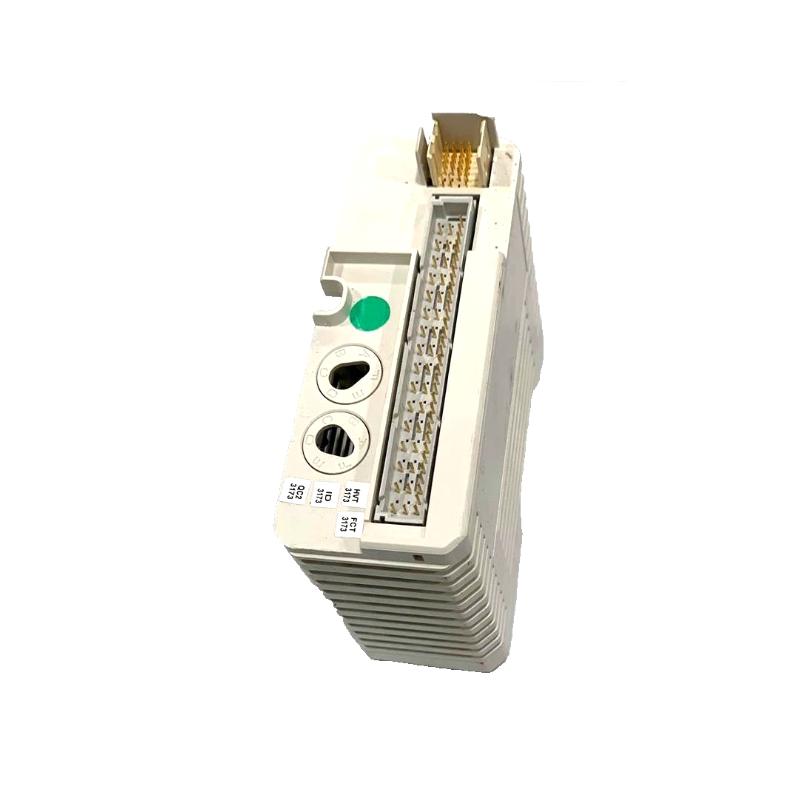

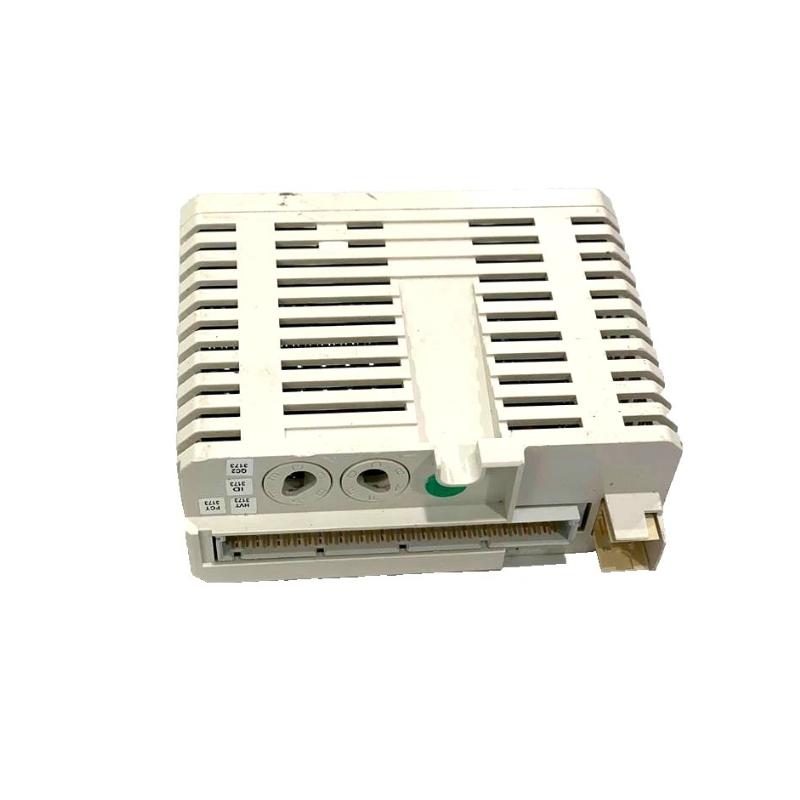

| Model | DI840 3BSE020836R1 |
| Module Type | Digital Input |
| Number of Channels | 16 (24 V DC) |
| Input Signal Type | Current Sinking |
| Input Voltage Range “0” | -30 to +5 V DC |
| Input Voltage Range “1” | 11 to 30 V DC |
| Input Impedance | 3.3 kΩ |
| Isolation | Groupwise isolated from ground |
| Filter Times (Selectable) | 0 to 127 ms |
| Sensor Power | Built-in, current-limited |
| Event Recording Accuracy | 0 / +1.3 ms |
| Event Resolution | 1 ms |
| Event Queue Capacity | Up to 257 events |
| Max Field Cable Length | 600 meters |
| Power Dissipation | Typ. 2.7 W |
| +5V Modulebus Current | 100 mA |
| +24V External Current | 15 mA + transducer power (Max 335 mA) |
| Status LEDs | Fault, Run, Warning, Channel Status |
| Redundancy | Supported |
| SOE Support | Yes, with 1 ms resolution |
| Dimensions (W x D x H) | 45 x 102 x 119 mm |
| Weight | 0.15 kg |
| Compatible MTUs | TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU842, TU843, TU852 |
| Environmental Certifications | CE, ATEX Zone 2, Marine (BV, DNV, LR) |
| EMC Compliance | EN 61000-6-4, EN 61000-6-2 |
| Operating Temperature | 0 to +55 °C (Approved: +5 to +55 °C) |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5 to 95%, non-condensing |
| Protection Class | IP20 |
| Electrical Safety Standards | EN/UL 61010 Series |
| RoHS / WEEE Compliance | Yes |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital input channels does the DI840 support?
A1: The DI840 provides 16 channels of 24 V DC current sinking digital inputs.
Q2: Does the DI840 support Sequence of Events (SOE)?
A2: Yes, it supports SOE with 1 ms resolution and can store up to 257 events.
Q3: Is the DI840 suitable for redundant configurations?
A3: Yes, it can be used in both single and redundant applications.
Q4: What is the voltage range for an input “1” state?
A4: The input voltage range for state “1” is 11 to 30 V DC.
Q5: Is the module electrically isolated from ground?
A5: Yes, the 16 channels are group-isolated from ground.
Q6: What are the dimensions and weight of the module?
A6: The module measures 45 x 102 x 119 mm and weighs 0.15 kg.
Q7: Which MTU modules are compatible with the DI840?
A7: It is compatible with TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU842, TU843, and TU852.
Q8: Does the DI840 have built-in protection features?
A8: Yes, it includes short-circuit protection, EMC filtering, and LED status indicators. Protection class is IP20.
