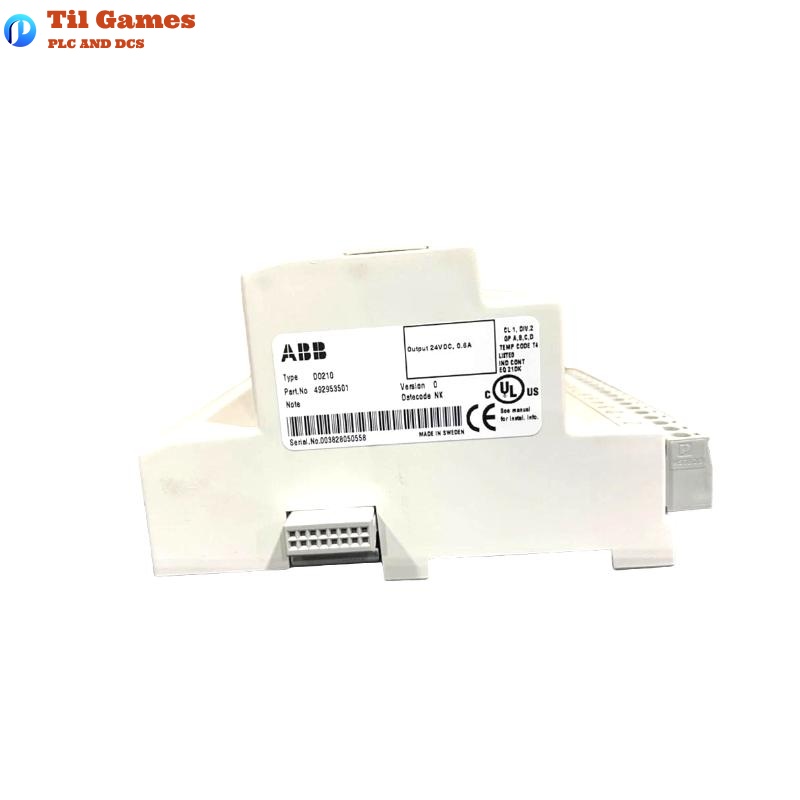

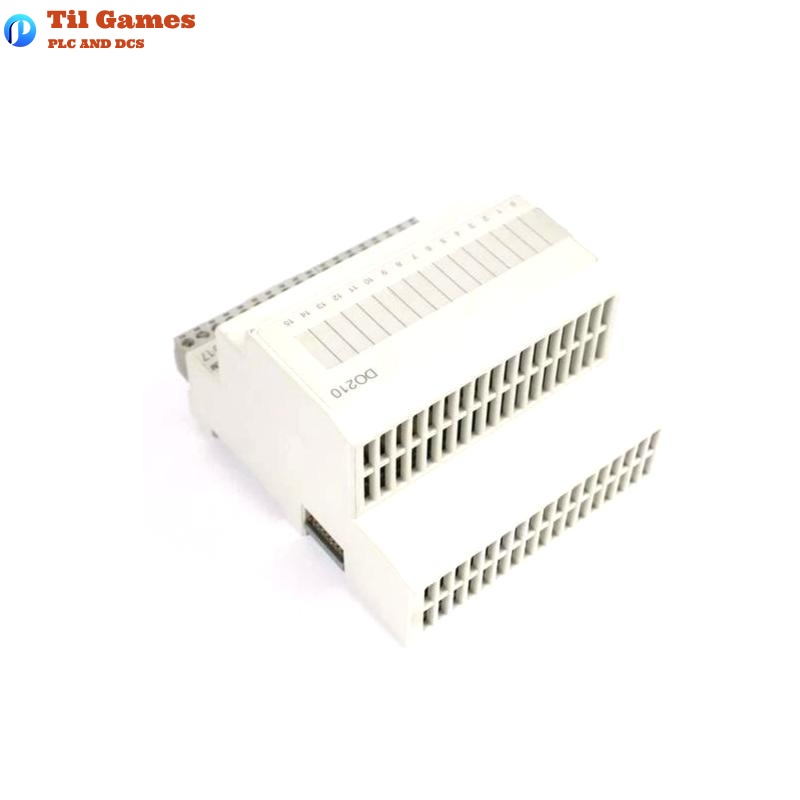

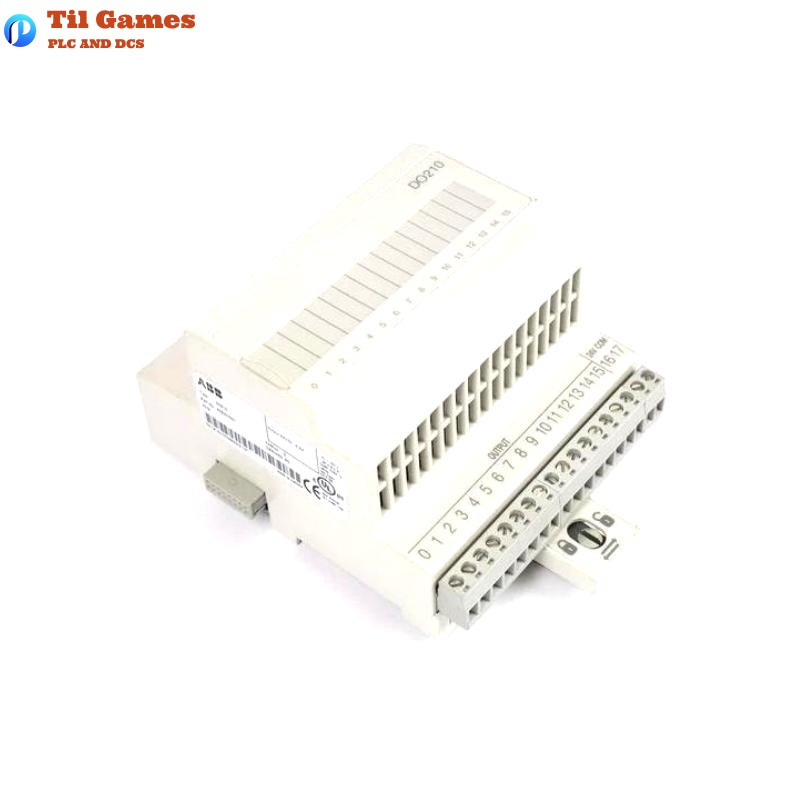

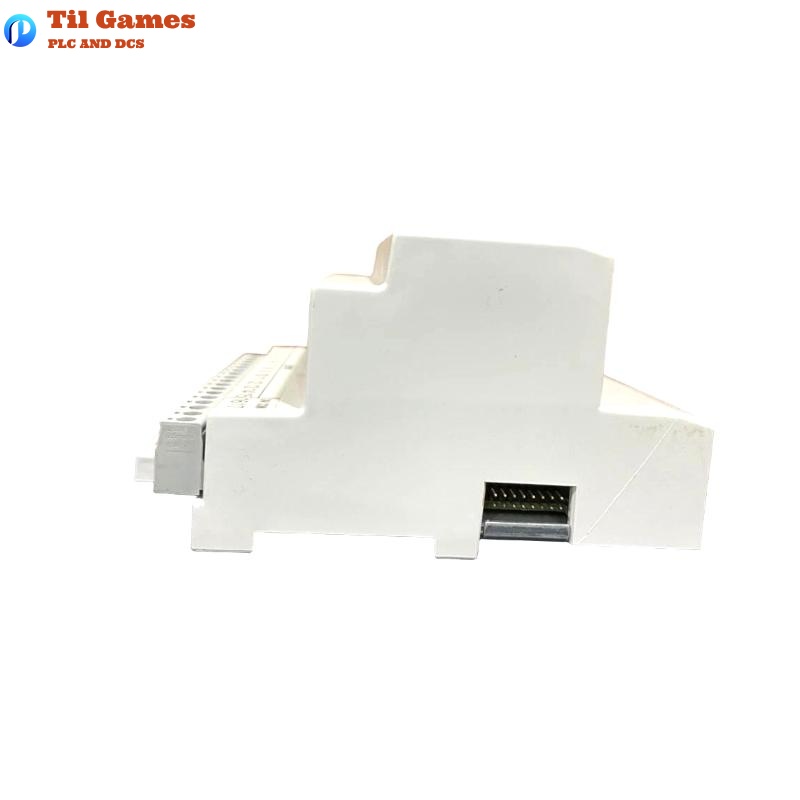

ABB DO210 S200L Digital Output Module

Frequently Asked Questions (FAQ)

Q1: What is the maximum output current per channel of the DO210 module?
A1: Each channel supports up to 600 mA, with a maximum total output of 7 A per module.

Q2: Will the module be damaged if an output is short-circuited?
A2: No. The module includes short-circuit protection. It shuts off the affected output and periodically checks until the short is cleared.

Q3: How does the module indicate the output status?
A3: A yellow LED is lit for each output when the output is active and the 24V external supply is present.

Q4: Is hot-swapping supported for this module?
A4: No. The system power must be turned off before inserting or removing the module to avoid hazards or damage.

Q5: What happens if the external power supply fails?
A5: All outputs will be turned off automatically and remain off until power is restored.

Q6: Which controllers are compatible with DO210?
A6: It is compatible with ABB AC 800C and AC 800M controllers via the appropriate fieldbus adapters.

Q7: Can outputs be paralleled to increase the load current?
A7: Yes, outputs can be paralleled, provided the total current does not exceed the 7 A module limit.

Q8: Does the module have thermal protection?
A8: Yes. If the chip temperature reaches about 160°C, the outputs are shut down to prevent damage.
