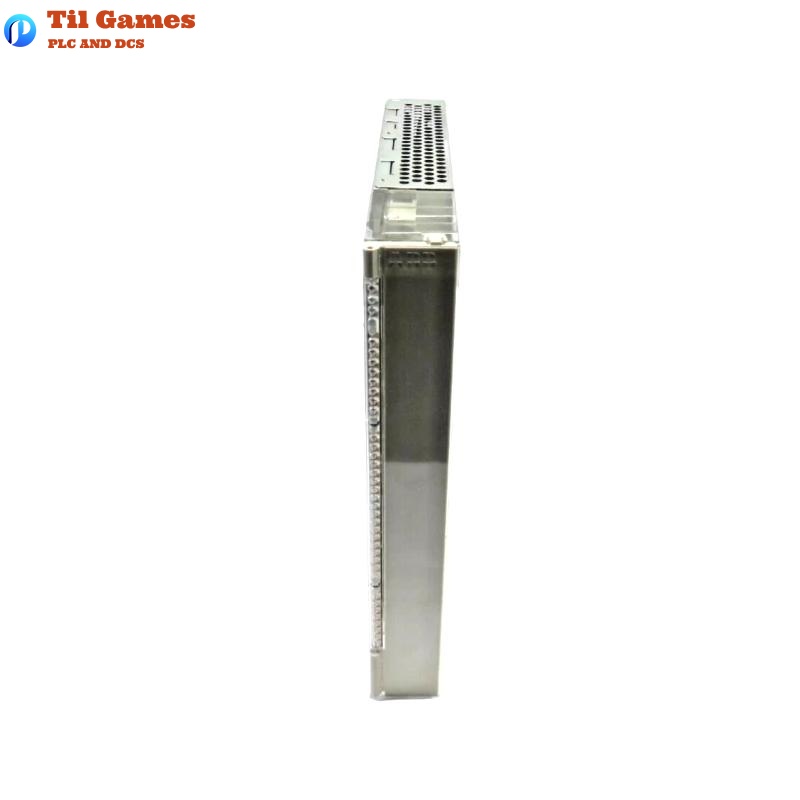

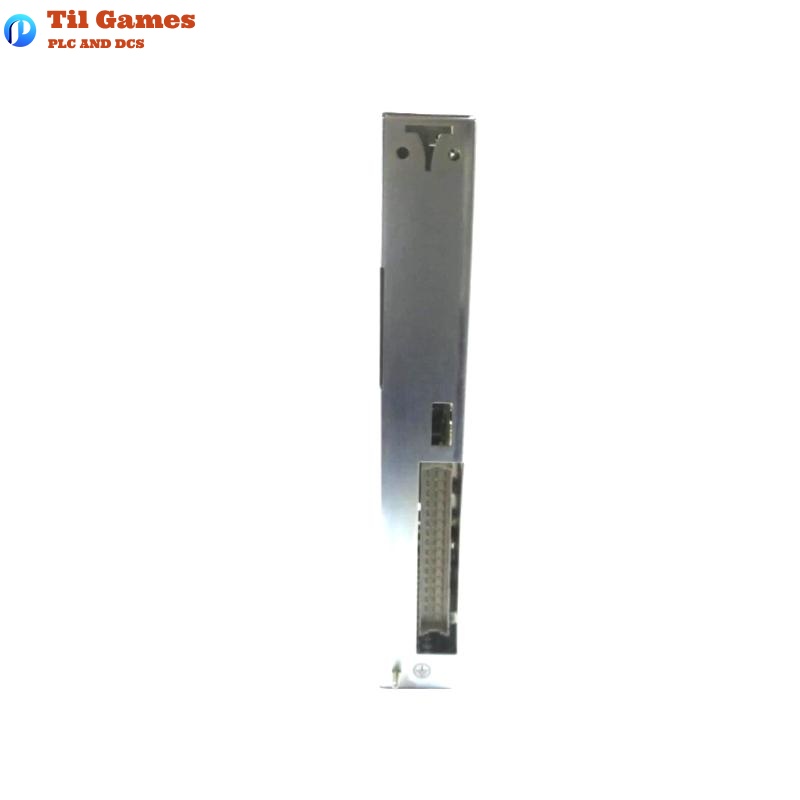

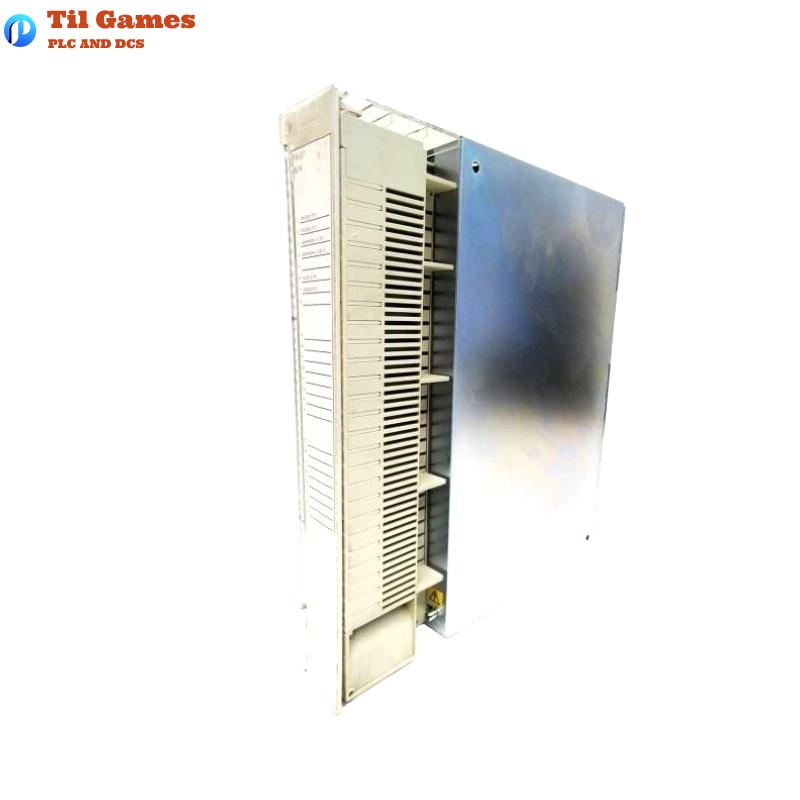

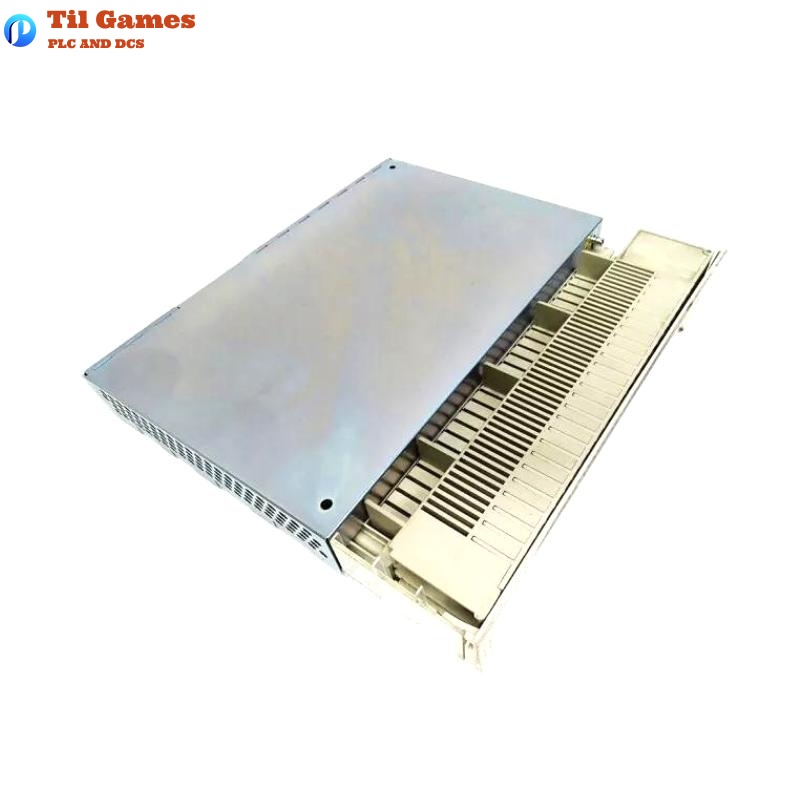

ABB DO620 3BHT300009R1 S600 Digital Output Module

Frequently Asked Questions (FAQ)

Q1: How many output devices can the DO620 module control?
A1: The DO620 module supports up to 32 individual digital output devices.

Q2: What is the maximum current per output channel?
A2: Each output channel supports a maximum of 0.5 A.

Q3: Does the module provide short-circuit protection?
A3: Yes, all output channels are short-circuit protected.

Q4: Are the channels galvanically isolated?
A4: Yes, the 32 channels are divided into four opto-isolated groups.

Q5: What are the typical applications for the DO620 module?
A5: The module is commonly used in industrial automation for relay driving, valve control, and signal indication.

Q6: What is the maximum supported voltage?
A6: The module supports a maximum of 60V DC.

Q7: Is the DO620 compatible with the ABB AC 800M control system?
A7: Yes, it is fully compatible with ABB’s AC 800M system.

Q8: Does the module support hot-swapping?
A8: No, the module does not support hot-swapping. Power should be turned off before replacement.
