Technical Specifications
| Item | Specification |
|---|---|

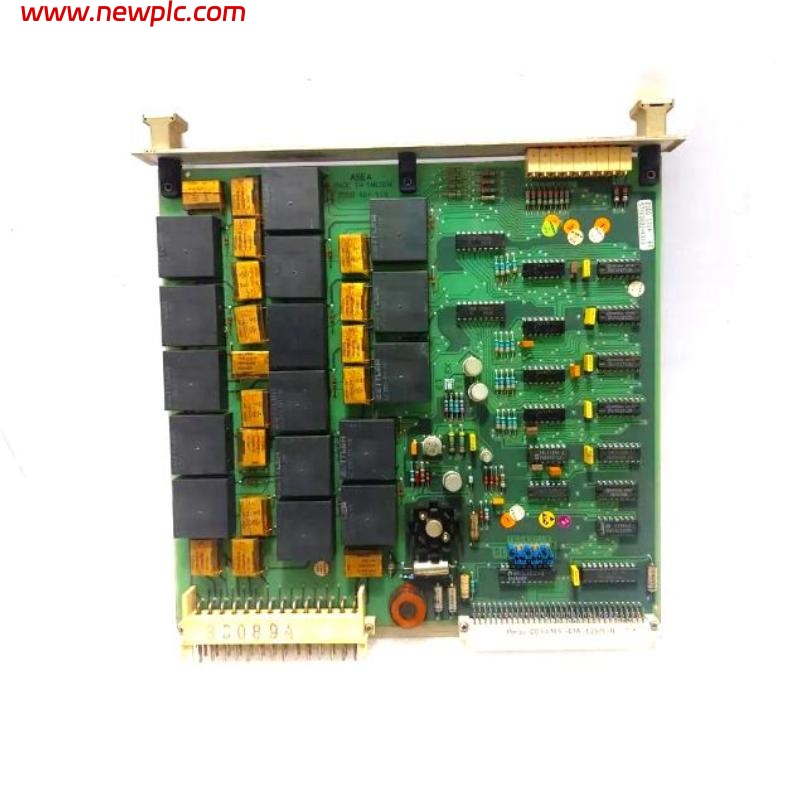

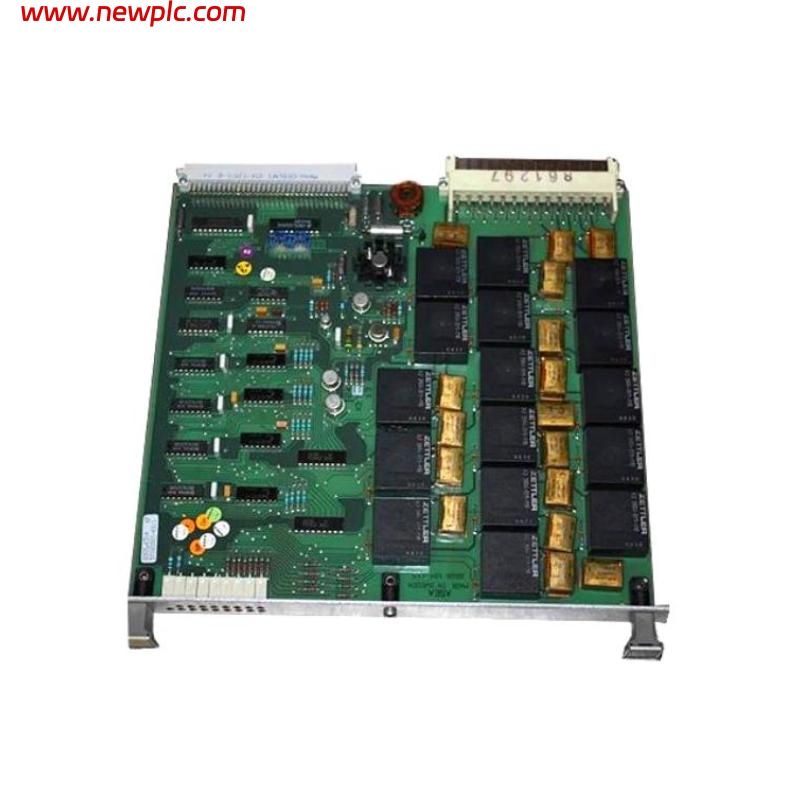

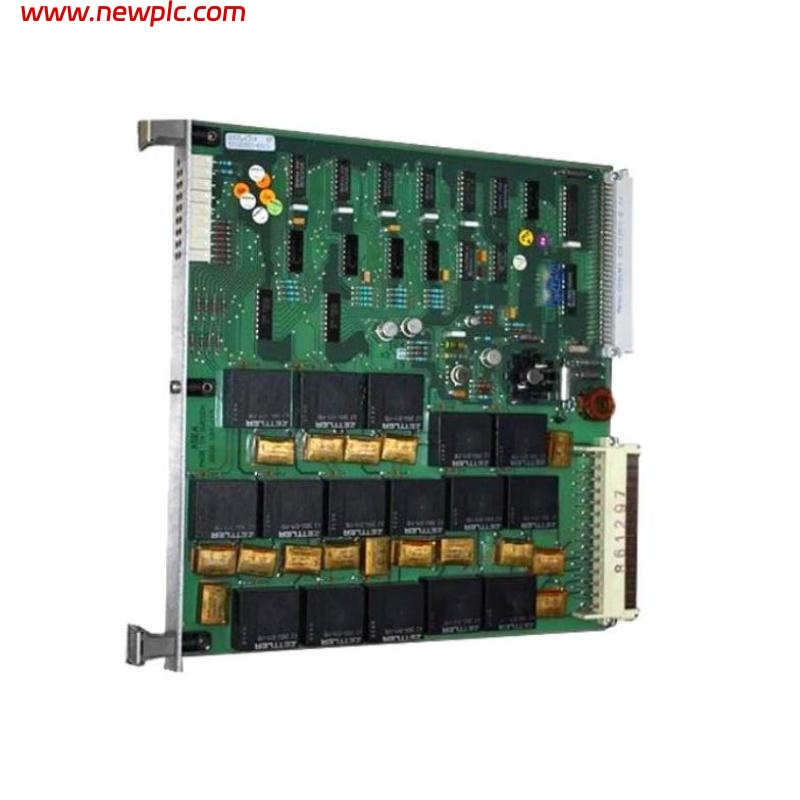

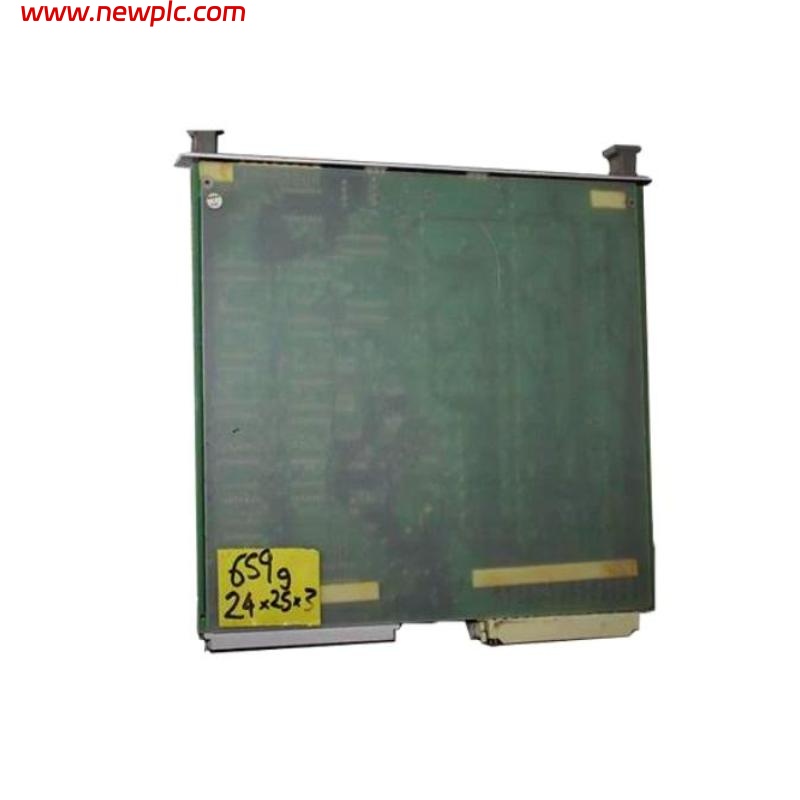

| Product Model | ABB DSDO 131 57160001-KX DS Digital Output Module |
| Type | Digital Output Module |
| Function | Provides digital outputs for controlling relays, actuators, and external devices |
| Output Channels | 16 digital outputs |
| Output Voltage | 24 VDC (nominal) |
| Output Current | Max. 0.5 A per channel |
| Isolation | Optical isolation between channels and logic |
| Protection | Short-circuit protection, overload protection |
| Diagnostic Functions | Channel status monitoring and fault detection |
| Communication | Via system backplane bus |
| Power Requirement | 24 VDC (rack supplied) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Humidity Range | 5% to 90% (non-condensing) |
| Mounting Method | Rack/slot mounting |
| Protection Class | IP20 |
| Dimensions | 324 x 18 x 225 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What is the purpose of the DSDO 131 module?
A1: It converts control system logic signals into digital outputs to control actuators, relays, or other external devices.
Q2: How many digital output channels are available?
A2: The module provides 16 digital output channels.
Q3: What are the output voltage and current ratings?
A3: The nominal output voltage is 24 VDC, and the maximum current is 0.5 A per channel.
Q4: Does the module include protection features?
A4: Yes, it has built-in short-circuit and overload protection.
Q5: Does it support diagnostics?
A5: Yes, it supports channel status monitoring and fault detection.
Q6: How does the module communicate with the system?
A6: It communicates via the system backplane bus.
Q7: What is the operating temperature range?
A7: The module operates between 0 °C and +55 °C.
Q8: What are the module’s dimensions and weight?
A8: The dimensions are 324 x 18 x 225 mm, and the weight is about 0.7 kg.
