Technical Specifications
| Parameter | Description |
|---|---|

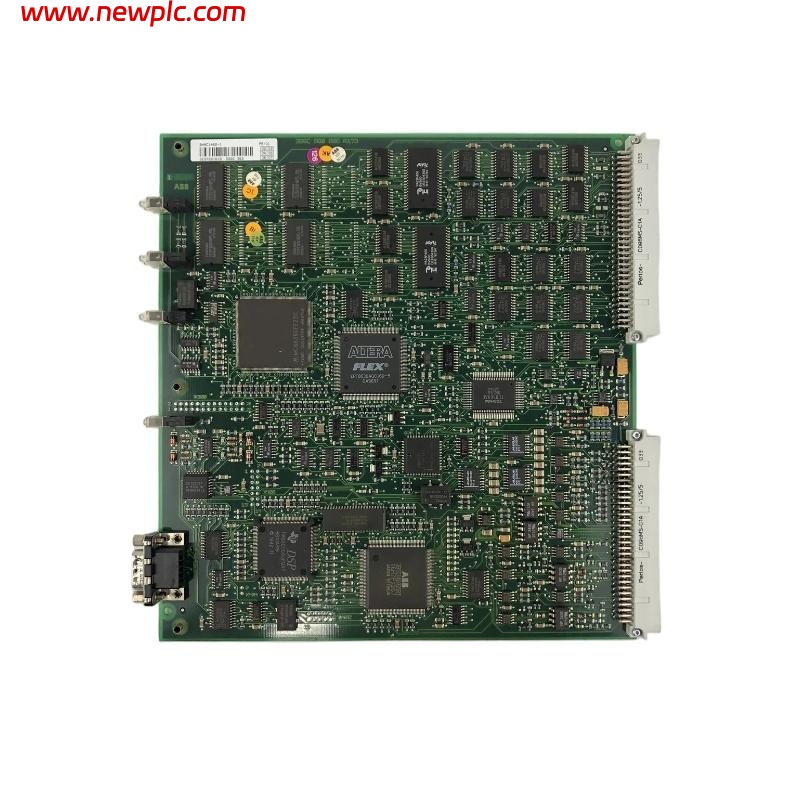

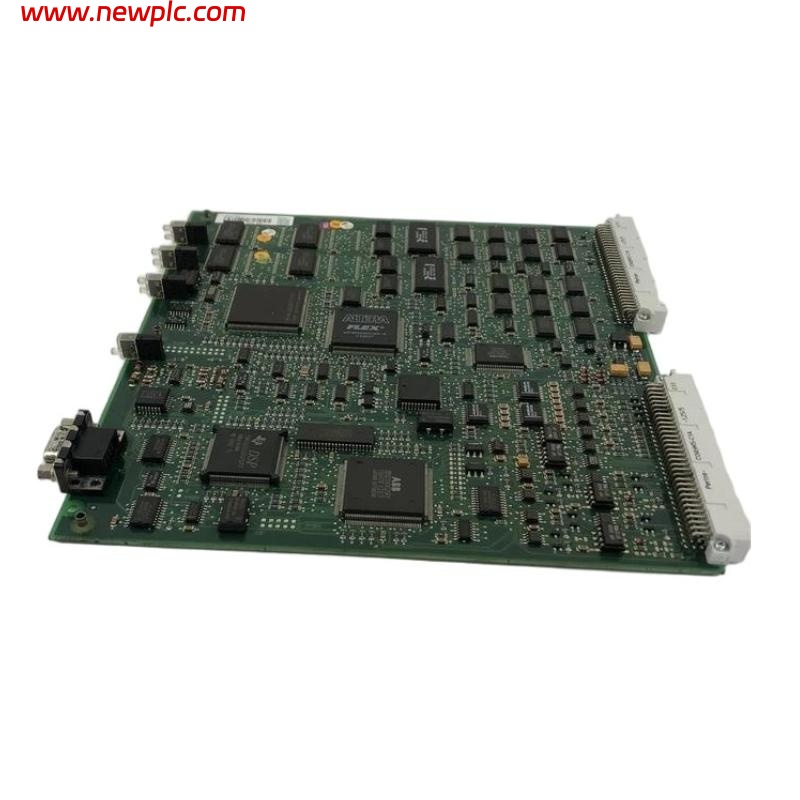

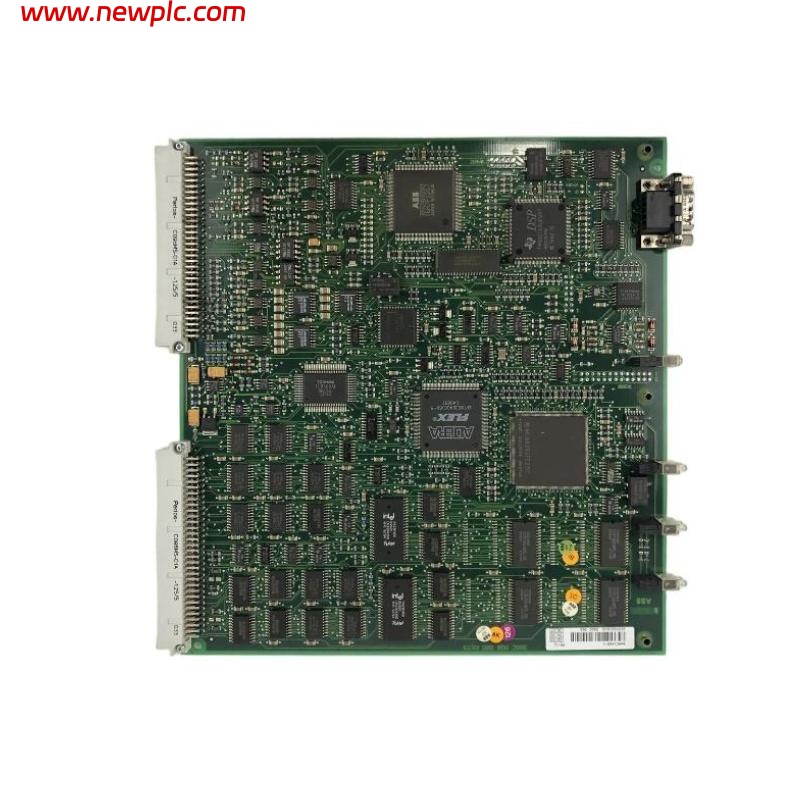

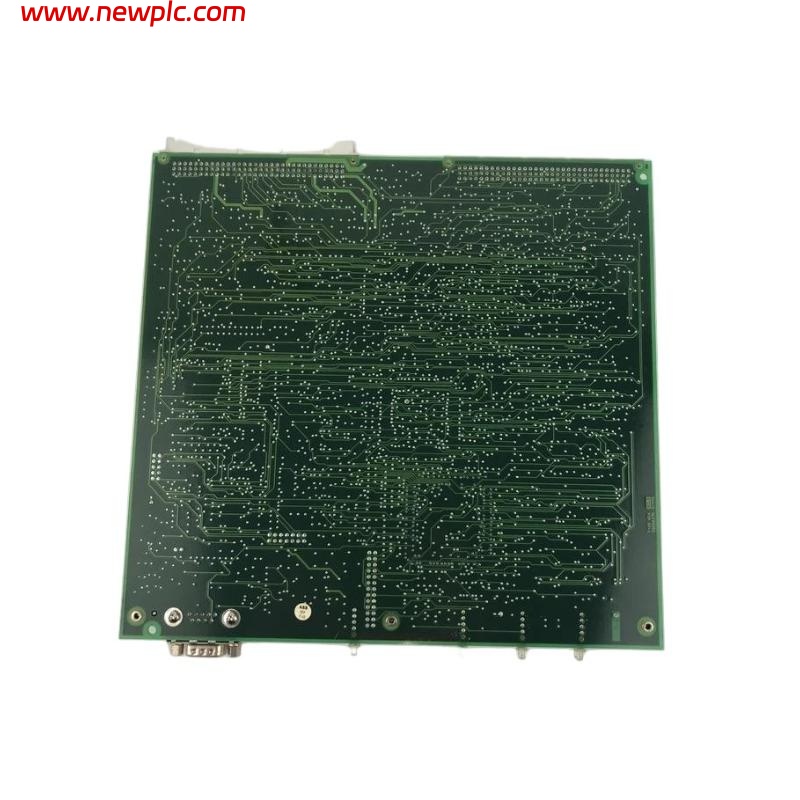

| Model | ABB DSQC 3 3HAC1462-1 |
| Type | Robot Circuit Board |
| Dimensions | 320 x 220 x 70 mm |
| Weight | 1.5 kg |
| Material | High-strength PCB material |
| Interface | Multiple digital and analog I/O interfaces, compatible with DSQC series main controllers |
| Processing Capability | High-speed signal processing for robot motion control |
| Power Requirement | 24 V DC |
| Operating Temperature | 0℃ to 50℃ |
| Storage Temperature | -20℃ to 70℃ |
| Humidity Range | 10–90% RH, non-condensing |
| Protection Rating | IP20 (board only, to be installed in chassis) |
| Compatibility | Compatible with ABB DSQC series control systems and robot mainboards |
| Mounting | Inserted into dedicated slot in main chassis |
| Safety Standards | CE certified, meets industrial electronics safety standards |
FAQ
FAQ
QA1: Which robot systems is the DSQC 3 circuit board compatible with?
Compatible with ABB DSQC series control systems and corresponding robot mainboards.
QA2: What interfaces does the board support?
Provides multiple digital and analog I/O interfaces, compatible with DSQC series controllers.
QA3: What is the power requirement?
Requires 24 V DC power supply.
QA4: What is the operating temperature range?
The operating temperature is 0℃ to 50℃.
QA5: What is the protection rating of the board?
The board itself is IP20 and should be installed inside a chassis.
QA6: Can functionality be expanded?
Yes, through DSQC series controllers, I/O and motion control functions can be extended.
QA7: Is installation complicated?
Simply insert into the dedicated chassis slot; installation is straightforward.
QA8: How to ensure safe and stable operation?
Maintain chassis ventilation, correct power supply, and protect against electrostatic discharge.
