Technical Specifications
| Parameter | Value |
|---|---|

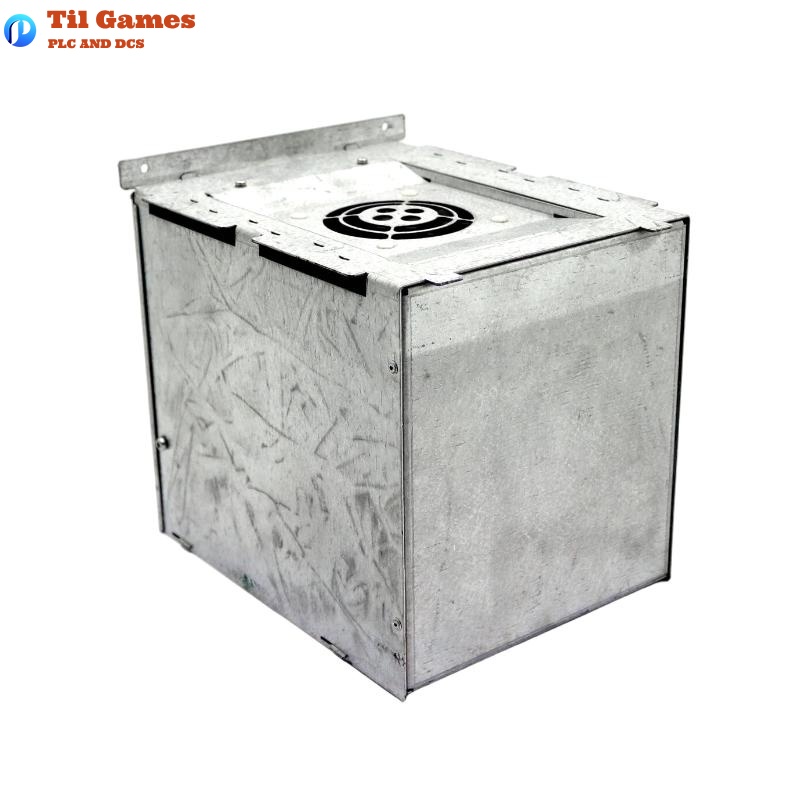

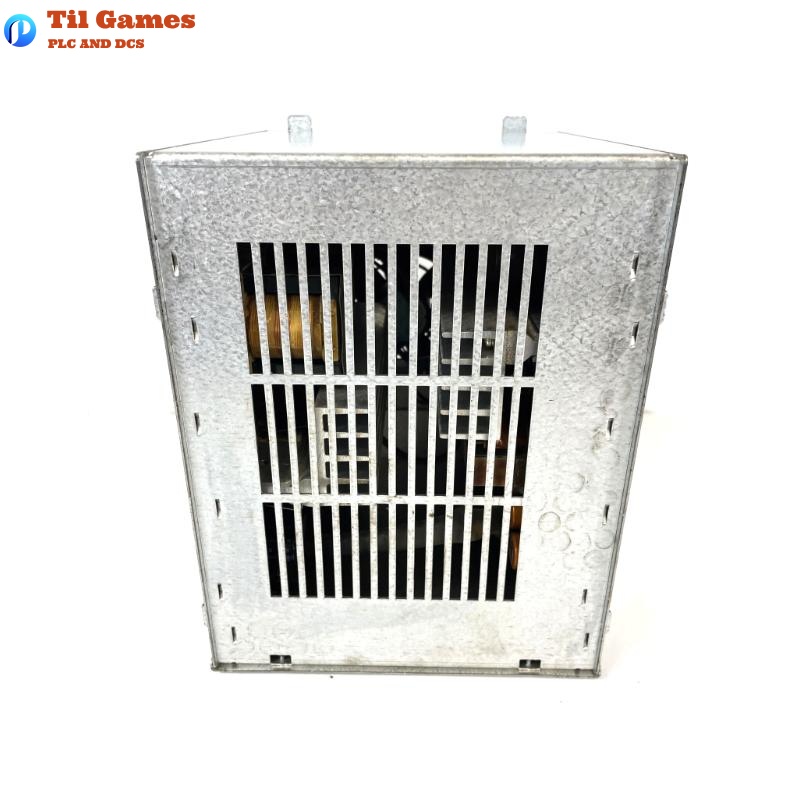

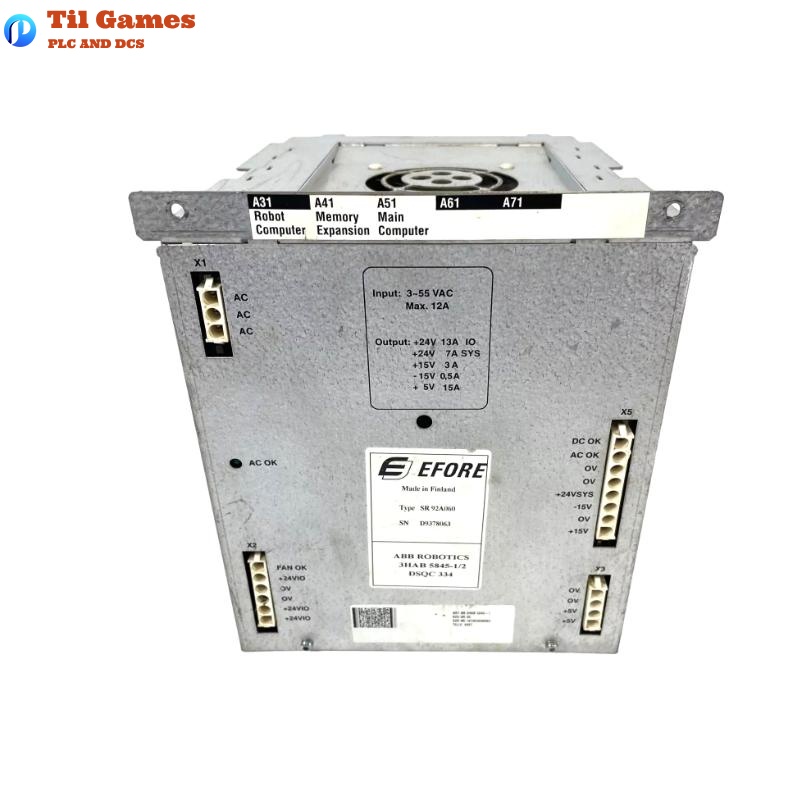

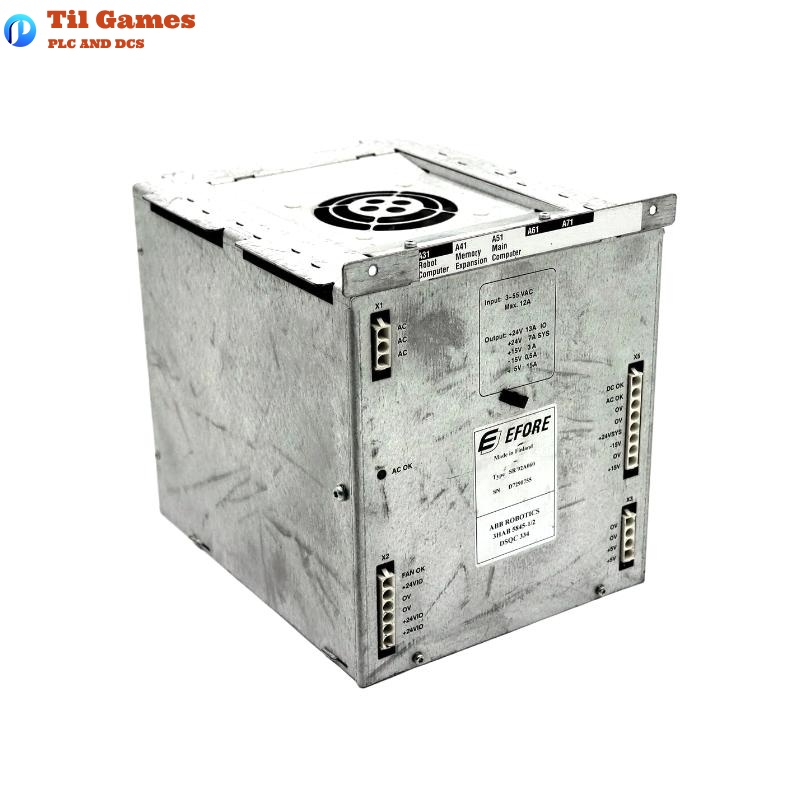

| Product Model | ABB DSQC 334 3HAB5845-1 |
| Type | Power Supply Module |
| Application | Powering robotic control systems |
| Input Voltage | 200–480 VAC, 3-phase |
| Output Voltage | 24 VDC |
| Max Output Current | 40 A |
| Cooling Method | Natural air cooling |
| Mounting Type | Panel mounting |
| Enclosure Protection | IP20 |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W x H x D) | 184 x 222 x 241 mm |
| Weight | 4.98 kg |
FAQ
FAQ
Q1: What equipment is the ABB DSQC 334 Power Supply Module mainly used in?
A1: This module is primarily used in ABB industrial robot control systems to supply stable 24V DC power to the controller and subsystems.
Q2: What input voltage range does this module support?
A2: The DSQC 334 supports a 3-phase input voltage range of 200 to 480 VAC, suitable for various industrial power setups.
Q3: What are the output specifications of the module?
A3: It provides 24V DC output with a maximum current of 40 A, ideal for high-load control systems.
Q4: How should the module be installed?
A4: It should be panel-mounted vertically inside the control cabinet with adequate ventilation.
Q5: Does the module feature overload or short-circuit protection?
A5: Yes, it includes integrated protections against overcurrent, short-circuit, and overheating to ensure safe operation.
Q6: What is the operating temperature range of the module?
A6: It operates between 0°C and +45°C, with a storage range of -25°C to +70°C.
Q7: What are the dimensions and weight of the module?
A7: The module measures 184 x 222 x 241 mm and weighs 4.98 kg.
Q8: What is the protection rating of this module?
A8: It has an IP20 protection rating, suitable for standard industrial environments where it is shielded from dust and liquids.
