Technical Specifications
| Parameter | Specification |
|---|---|

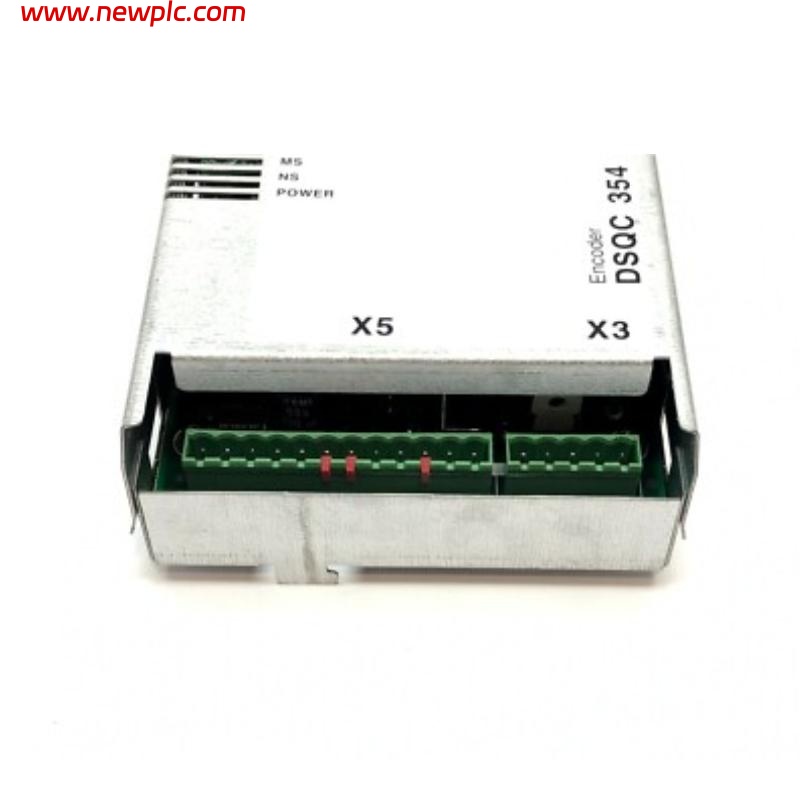

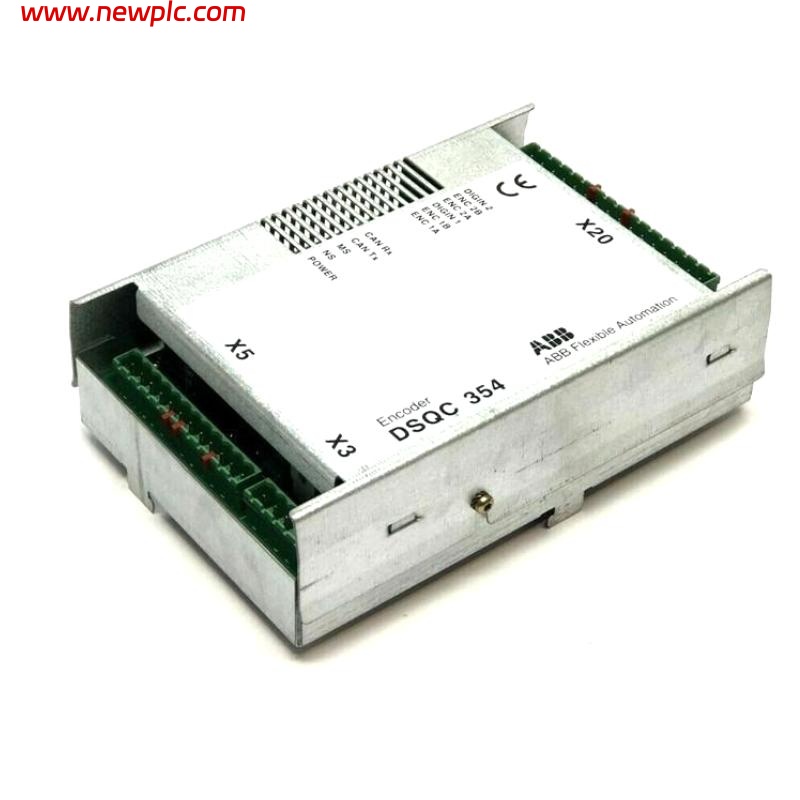

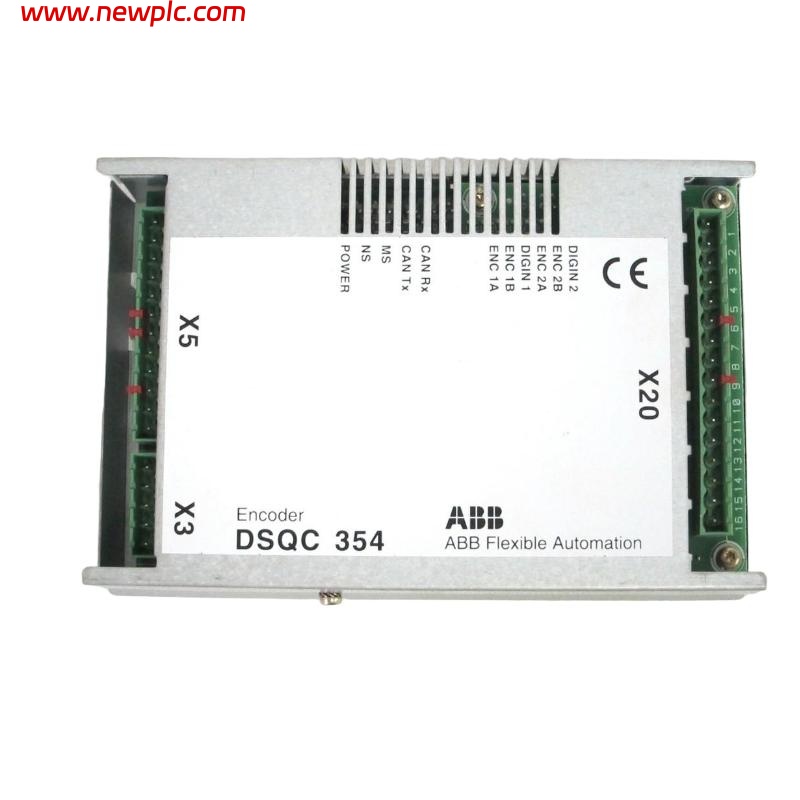

| Product Name | ABB DSQC 354 Encoder Interface Card |
| Part Number | 3HNE00065-1 |
| Function | Encoder signal interface for drives |
| Interface Type | Digital Encoder Input |
| Supported Encoder Types | Incremental, Absolute |
| Input Voltage | 5 V DC / 24 V DC |
| Communication Protocol | Drive-specific digital interface |
| Update Frequency | Up to 10 kHz |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions | 127 × 38 × 178 mm |
| Weight | 0.6 kg |
| Mounting | DIN rail / Card slot |
| Protection Class | IP20 |
| Response Time | < 100 µs |
FAQ
FAQ
-
Q1: What types of encoders are supported by DSQC 354?
A1: The DSQC 354 supports both incremental and absolute encoders. -
Q2: What is the maximum input frequency for encoder signals?
A2: The maximum input frequency is up to 10 kHz. -
Q3: Can the DSQC 354 interface with 24 V DC encoders?
A3: Yes, it supports both 5 V DC and 24 V DC input levels. -
Q4: What is the typical response time for signal processing?
A4: The response time is less than 100 microseconds. -
Q5: What is the operating temperature range?
A5: The device operates reliably between 0°C and 55°C. -
Q6: How is the DSQC 354 mounted?
A6: It can be mounted on a DIN rail or in a dedicated card slot. -
Q7: Is the DSQC 354 compatible with all ABB drives?
A7: It is compatible with ABB drives that provide a matching encoder interface slot. -
Q8: What protection level does the device provide?
A8: The card has an IP20 protection class, suitable for indoor industrial environments.
