Technical Specifications
| Parameter | Description |
|---|---|

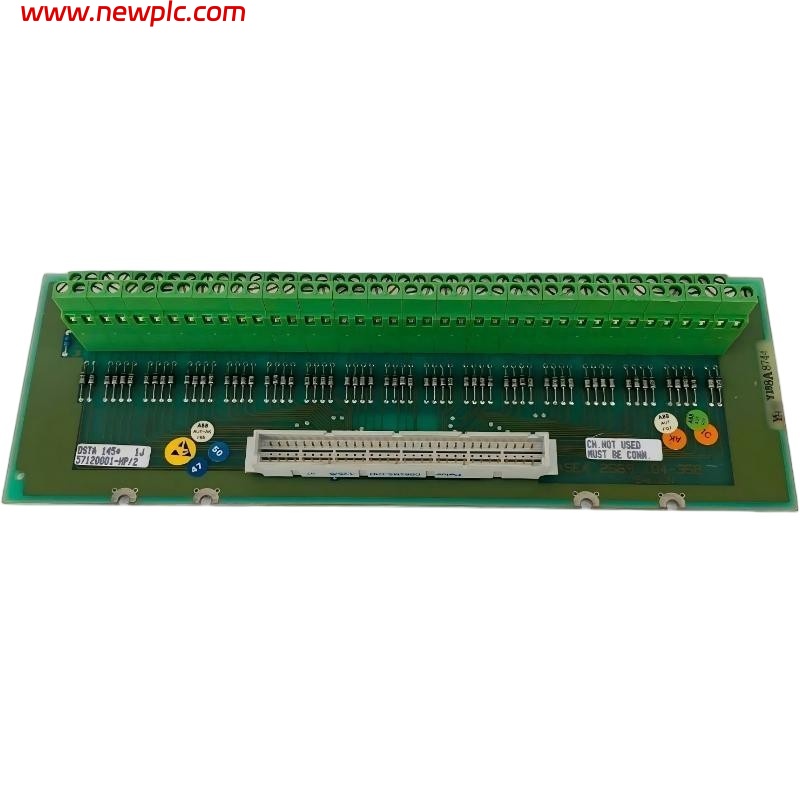

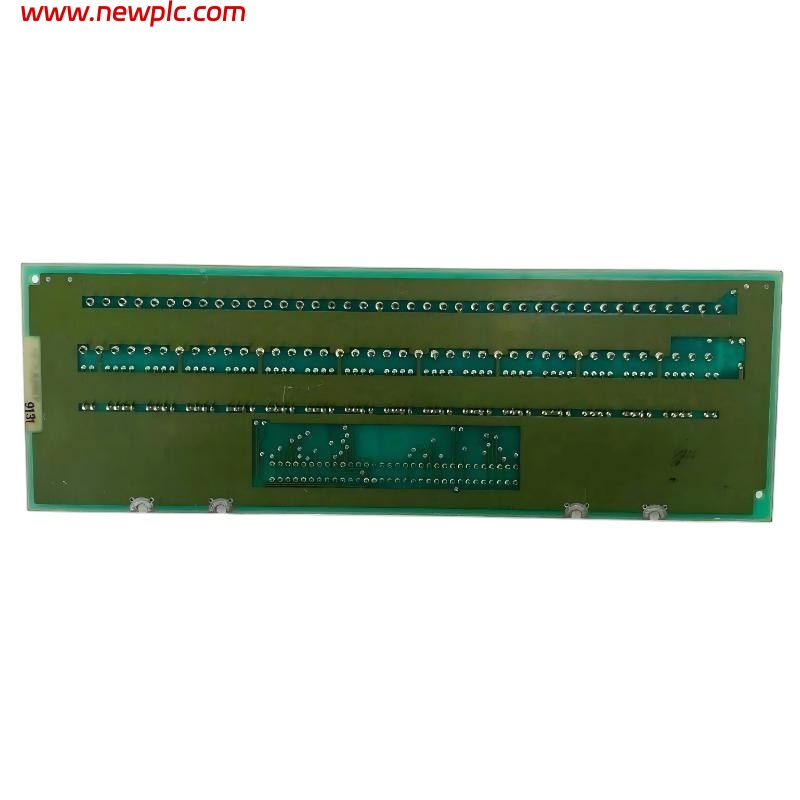

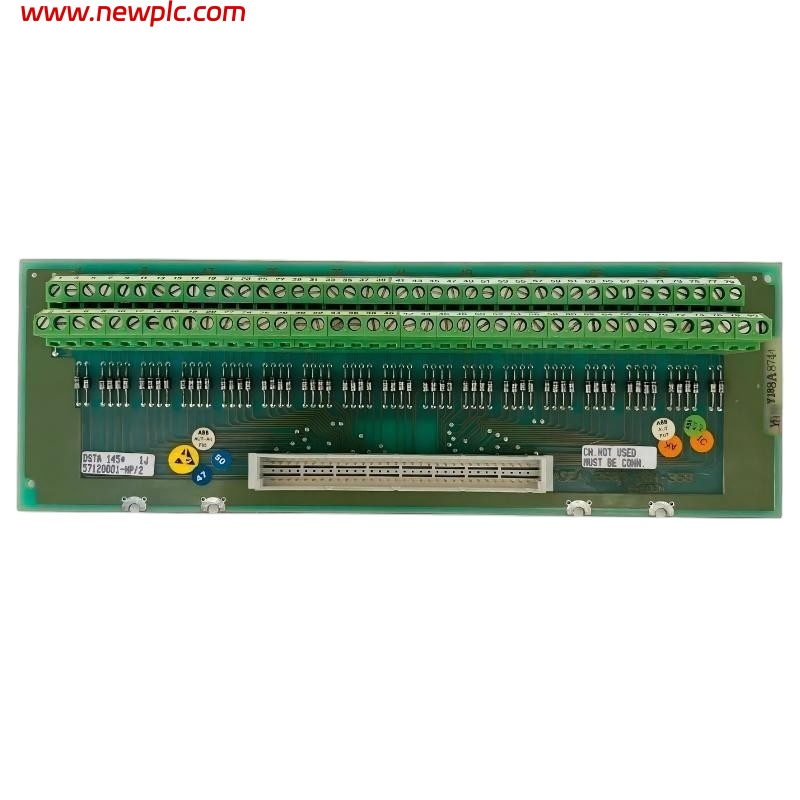

| Product Model | DSTA 145 |
| Part Number | 57120001‑HP |
| Manufacturer | ABB |
| Product Type | Connection Unit / I/O Interface Module |
| Application | Analog signal interface for I/O systems |
| Function | Provides connection interface for up to 31× PT100 3‑wire temperature sensor channels |
| Sensor Type Supported | PT100, 3‑wire configuration |
| Connector Channels | 31 analog input channels |
| Mounting Type | Panel / rack interface for analog I/O boards |
| Compatible Systems | ABB Advant S100 / Advant OCS I/O systems |
| Input Interface | Analog sensor connectors |
| Operating Temperature | Industrial range (typical for I/O modules) |
| Storage Temperature | Standard industrial storage conditions |
| Dimensions | 365 mm × 180 mm × 50 mm |
| Weight | 0.27 kg |
| Environmental | RoHS compliant |
FAQ
FAQ
Q1. What is the DSTA 145 57120001‑HP?
It is a connection unit for analog I/O boards that provides an interface for analog sensor signals, especially PT100 temperature sensors.
Q2. What kind of sensors does this module support?
It supports 31 PT100 temperature sensors with 3‑wire connections.
Q3. In what systems is this unit used?
It is typically used in ABB Advant S100 and Advant OCS I/O control systems to connect analog inputs to the main controller.
Q4. What is the main function of the DSTA 145?
The module acts as an interface/connection block between field analog sensors and the I/O board in an automation or control cabinet.
Q5. What are the dimensions of this connection unit?
The unit measures approximately 365 mm × 180 mm × 50 mm.
Q6. How much does this module weigh?
Its weight is about 0.27 kg.
Q7. What type of signals does this unit handle?
It handles analog signals from PT100 temperature sensors and routes them to the analog input board.
Q8. Is it compliant with environmental regulations?
Yes, it is RoHS compliant, meeting European environmental standards for electronic equipment.
