Technical Specifications
| Parameter | Value |
|---|---|

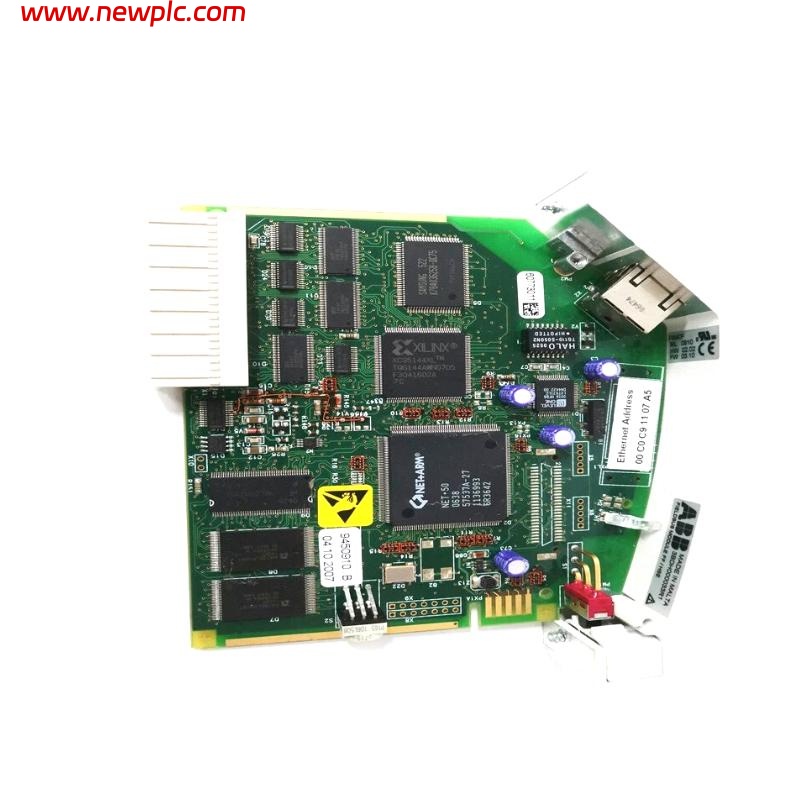

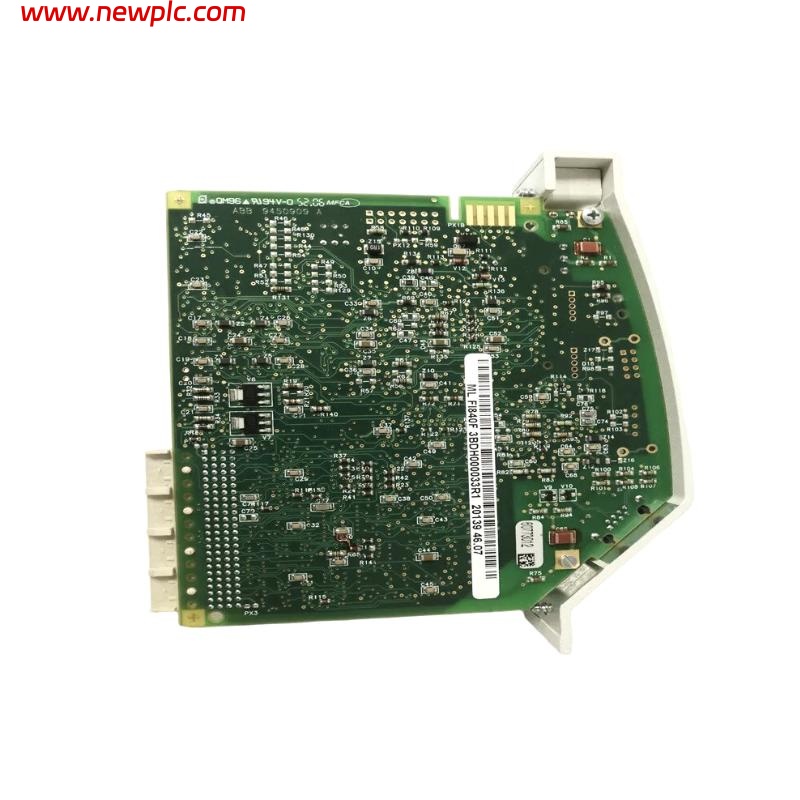

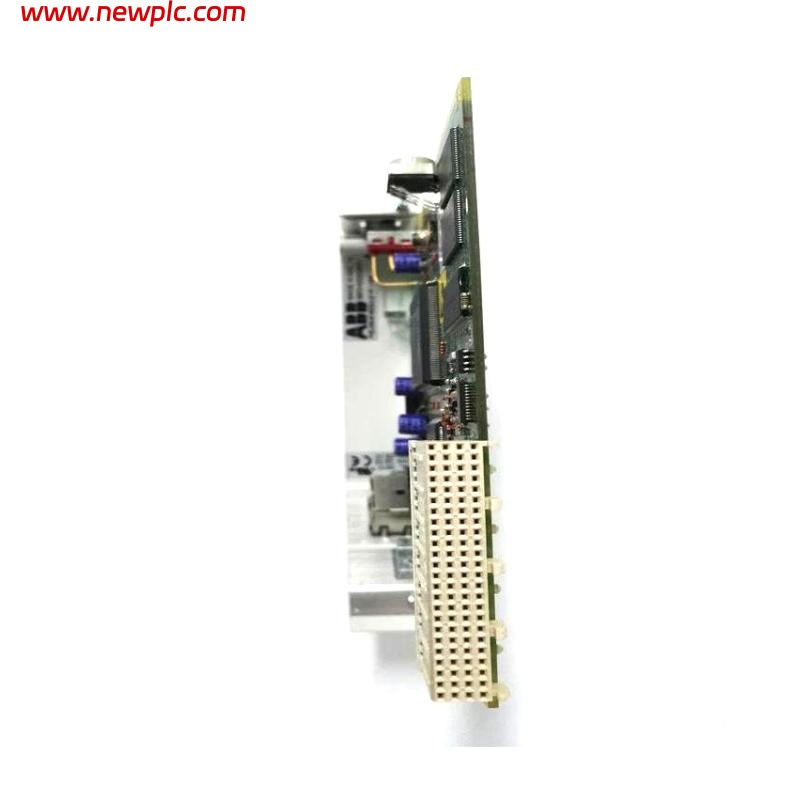

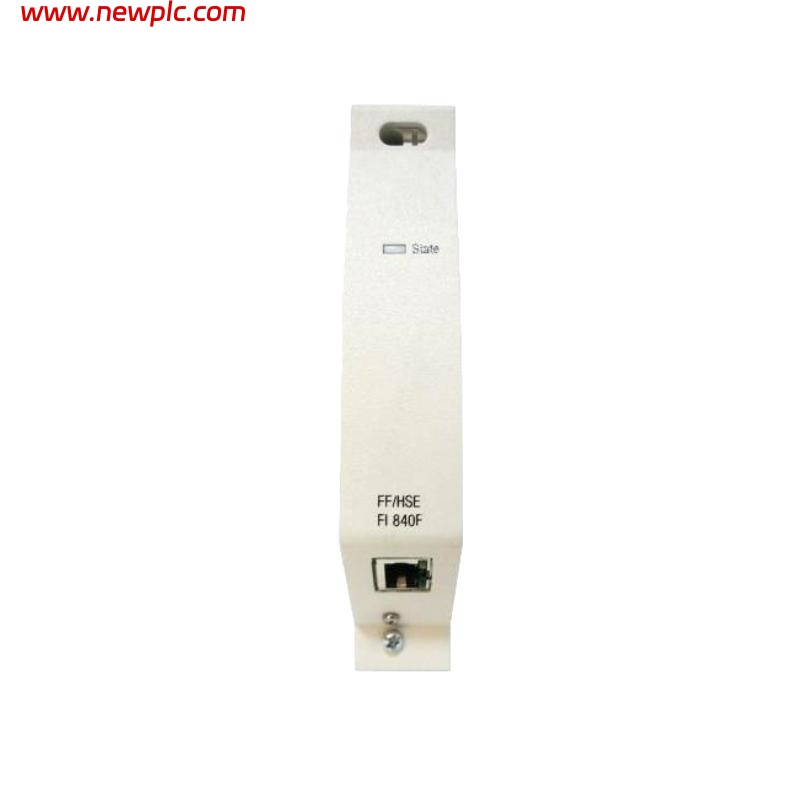

| Product Name | ABB FI840F Foundation Fieldbus Module |
| Model Number | FI840F 3BDH000033R1 |
| Function | Foundation Fieldbus HSE module for AC800F |
| Channels | 1 channel for up to 10 LD800HSE linking devices |
| Transmission Rate | 10/100 Mbps (autosensing) |
| Interface | Twisted pair 10/100BaseT Ethernet |
| Maximum Modules per Controller | Up to 4 modules per AC800F controller |
| Power Dissipation | 2.1 W |
| Protection | IP20 |
| Certifications | CE, UL, RoHS compliant |
| Ambient Temperature | Operation: 0–60°C; Storage: -25–85°C |
| Relative Humidity | ≤80% annual average, ≤95% for 30 days |
| Dimensions (W × H × D) | 125 × 155 × 28 mm |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB FI840F module?
A1: The FI840F module connects an AC800F controller to FOUNDATION Fieldbus HSE networks, enabling integration with up to 10 LD800HSE linking devices.
Q2: How many FI840F modules can be installed in one AC800F controller?
A2: Up to four FI840F modules can be installed per AC800F controller.
Q3: What type of communication interface does the FI840F use?
A3: It uses a 10/100BaseT twisted pair Ethernet interface.
Q4: What is the maximum power dissipation of the FI840F module?
A4: The module has a maximum power dissipation of 2.1 W.
Q5: What is the protection rating of the FI840F module?
A5: The FI840F module has an IP20 protection rating.
Q6: What are the operating environmental conditions for the FI840F?
A6: It operates within 0–60°C and up to 80% relative humidity on average.
Q7: What certifications does the FI840F comply with?
A7: The module is CE marked, UL listed, and RoHS compliant.
Q8: What is the physical size and weight of the FI840F?
A8: The dimensions are 125 × 155 × 28 mm, and the weight is 0.15 kg.
