Technical Specifications
| Parameter | Specification |
|---|---|

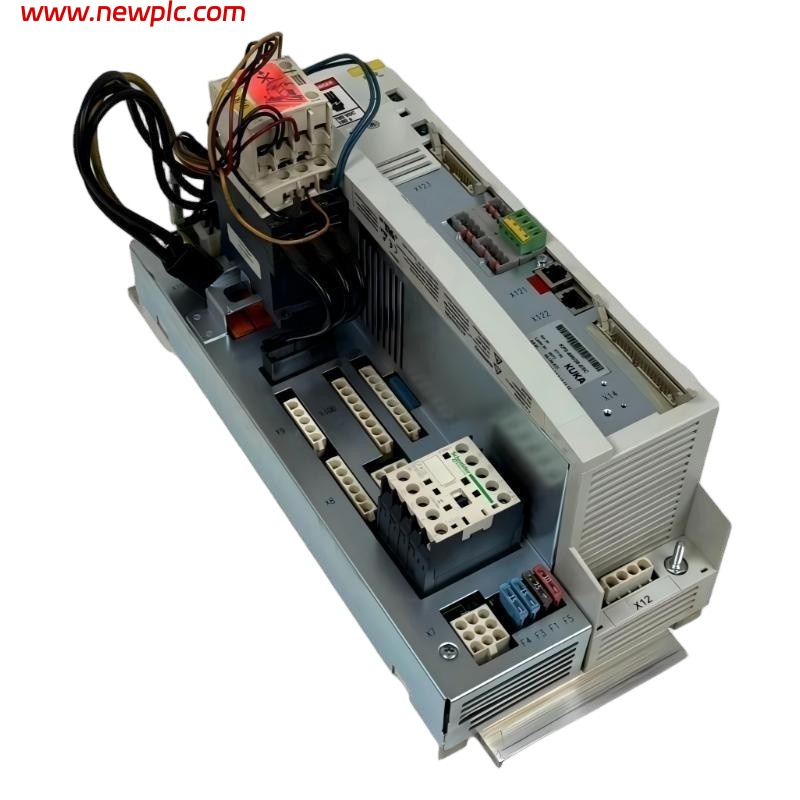

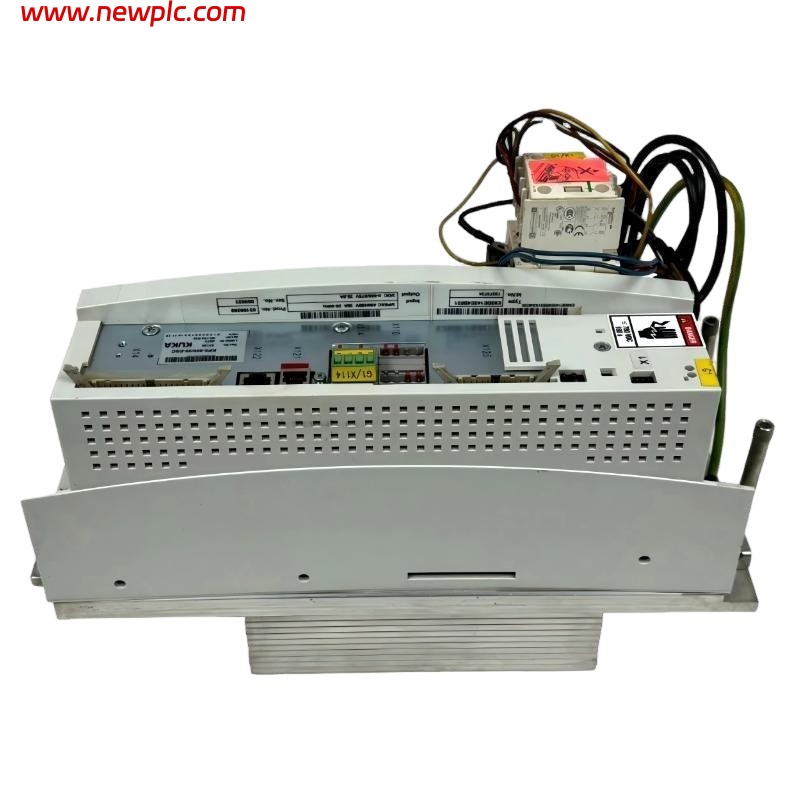

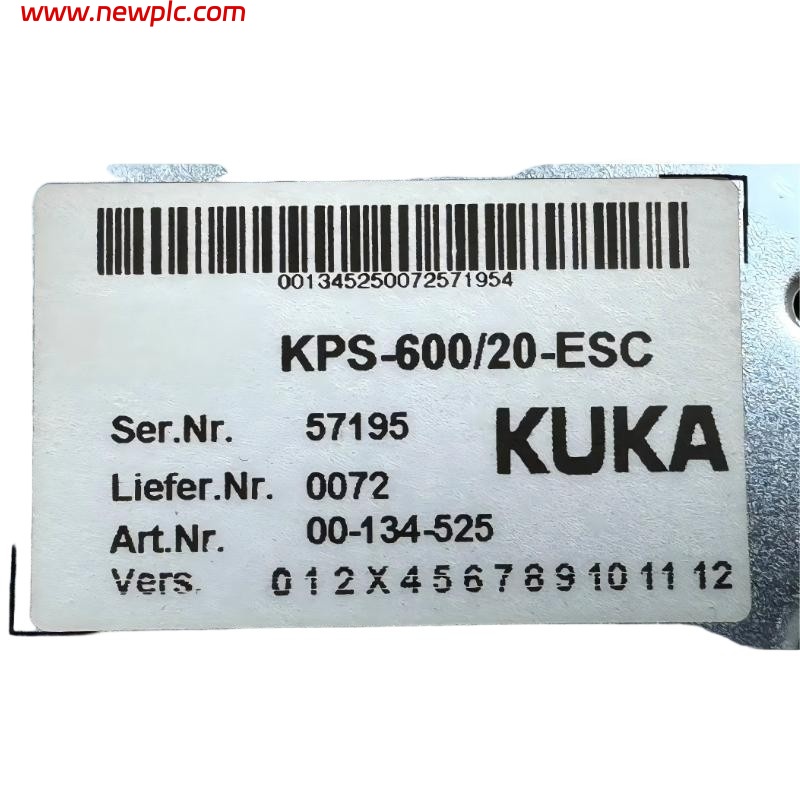

| Product Model | KPS-600/20-ESC |
| Product ID | E93DE143E4B531 / 00-134-525 |
| Product Type | DC Power Supply Unit |
| Manufacturer | Lenze |
| Series | KPS Servo Power Supply Series |
| Input Voltage | 3 × 400 – 480 V AC |
| Input Frequency | 50 / 60 Hz |
| Output Voltage | Approx. 600 V DC (DC bus) |
| Rated Output Current | 20 A |
| Rated Output Power | Approximately 12 kW |
| Function | Supplies DC bus power for servo drives and motion control systems |
| Cooling Method | Forced air cooling with integrated fan |
| Protection Class | IP20 |
| Mounting Type | Panel / cabinet mounting |
| Operating Temperature | 0°C to +40°C (without derating) |
| Storage Temperature | -25°C to +70°C |
| Dimensions (H × W × D) | Approximately 320 × 120 × 220 mm |
| Weight | Approximately 6.5 kg |
| Compliance Standards | CE, UL, RoHS |
FAQ
FAQ
Q1. What is the main function of the KPS-600/20-ESC power supply?
It converts three-phase AC input power into a stable DC bus voltage used to supply multiple servo drives in motion control systems.
Q2. What type of systems typically use this power supply?
It is commonly used in Lenze servo drive systems, especially in automated machinery, packaging equipment, and industrial motion control applications.
Q3. What input voltage does the unit require?
The power supply operates with a three-phase input voltage of 400–480 V AC at 50 or 60 Hz.
Q4. What is the rated output capability of the unit?
It provides approximately 600 V DC on the DC bus with a rated output current of 20 A.
Q5. How is the unit installed in a control cabinet?
The device is designed for panel mounting inside an electrical cabinet, typically alongside compatible servo drives.
Q6. Does the unit require active cooling?
Yes. It includes an integrated fan to provide forced air cooling during operation.
Q7. What protection rating does the device have?
The enclosure has an IP20 protection rating and should be installed inside a protected control cabinet.
Q8. What precautions should be taken during installation?
Ensure that the power supply is completely disconnected from the mains before installation and provide proper grounding and ventilation inside the cabinet.
