Technical Specifications
| Parameter | Description |
|---|---|

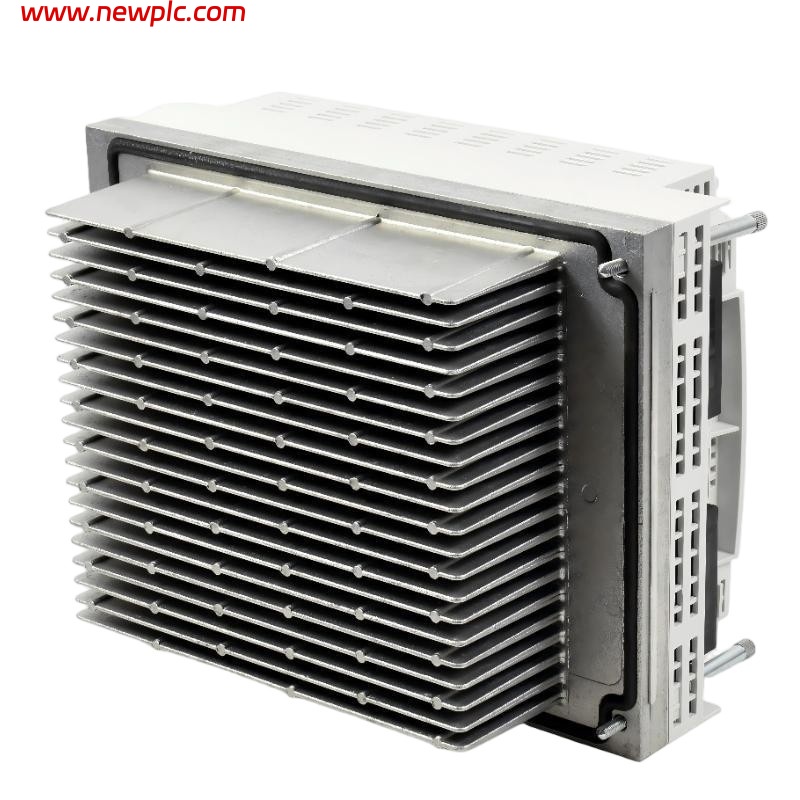

| Product Model | KSP 600‑3×20 ECMAS3D2224BE531 |
| Manufacturer | KUKA |
| Part Number | 00198266 (alternate) |
| Product Type | Servo Drive / Servo Pack Module |
| Application | Three‑axis servo amplifier for industrial robot motion control |
| Compatible Systems | KUKA robot controllers (e.g., KRC4 / KRC series) |
| Function | Converts DC intermediate bus power into controlled three‑phase AC output for servo motors |
| Input Voltage | DC intermediate circuit: approx. 565–675 V DC |
| DC Input Current | ~20 A rating |
| AC Output | 3× three‑phase AC output for servo motors |
| Output Voltage | Up to ~400–480 V AC |
| Output Current | ~20 A per channel (servo drive capacity) |
| Control Features | Multi‑axis amplification with fault protection |
| Cooling Method | Forced/cabinet airflow convection cooling |
| Mounting Type | Installed in robot controller drive rack |
| Protection | Overcurrent, overtemperature, fault monitoring |
| Operating Temperature | Industrial controller environment range |
| Storage Temperature | Standard industrial storage range |
| Humidity | Non‑condensing industrial environments |
| Dimensions | Approx. 241 mm × 330 mm × 203 mm |
| Weight | Approx. 9.1 kg |
| Status | Legacy / discontinued spare part |
FAQ
FAQ
Q1. What is the KSP 600‑3×20 ECMAS3D2224BE531?
It is a three‑axis servo drive pack used in KUKA robot control systems to provide controlled AC power to servo motors.
Q2. Which KUKA controllers use this module?
It is typically used with KUKA KRC4 and other compatible KRC‑series robot controllers.
Q3. What does this servo drive do?
It takes high‑voltage DC from the controller’s intermediate bus and converts it into controlled three‑phase AC for servo motors.
Q4. What input power does the drive require?
The module runs from a DC intermediate bus voltage of around 565–675 V.
Q5. How many servo axes does it support?
It supports three separate servo amplifier outputs within one module.
Q6. What are the approximate dimensions?
The module measures roughly 241 mm × 330 mm × 203 mm.
Q7. How much does it weigh?
The approximate weight is around 9.1 kg.
Q8. Is this part still manufactured?
No, it is generally a legacy spare part and is usually available as refurbished or old stock.
