Technical Specifications
| Parameter Category | Technical Description |
|---|---|

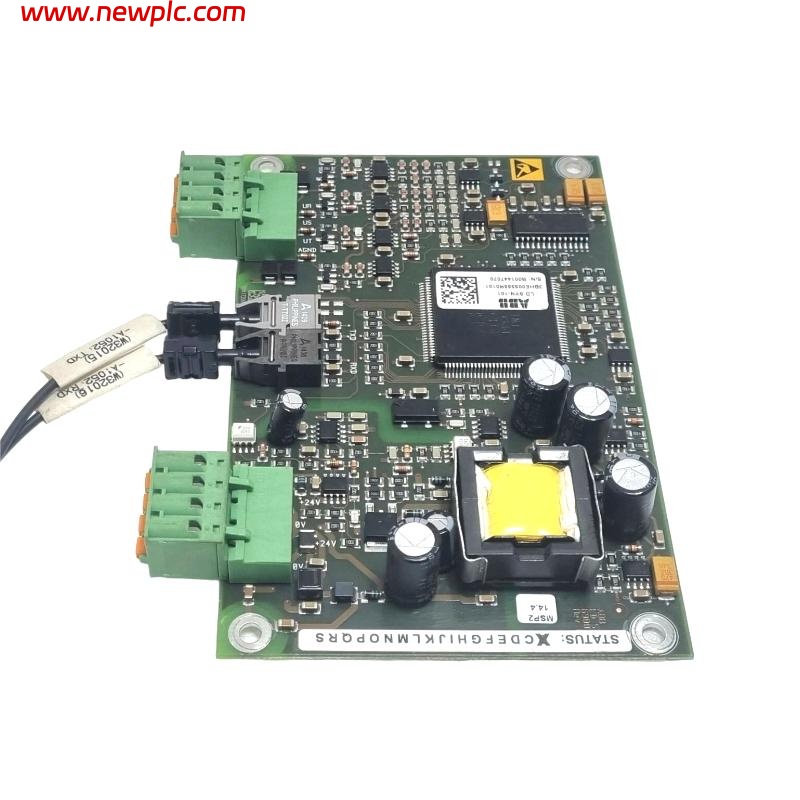

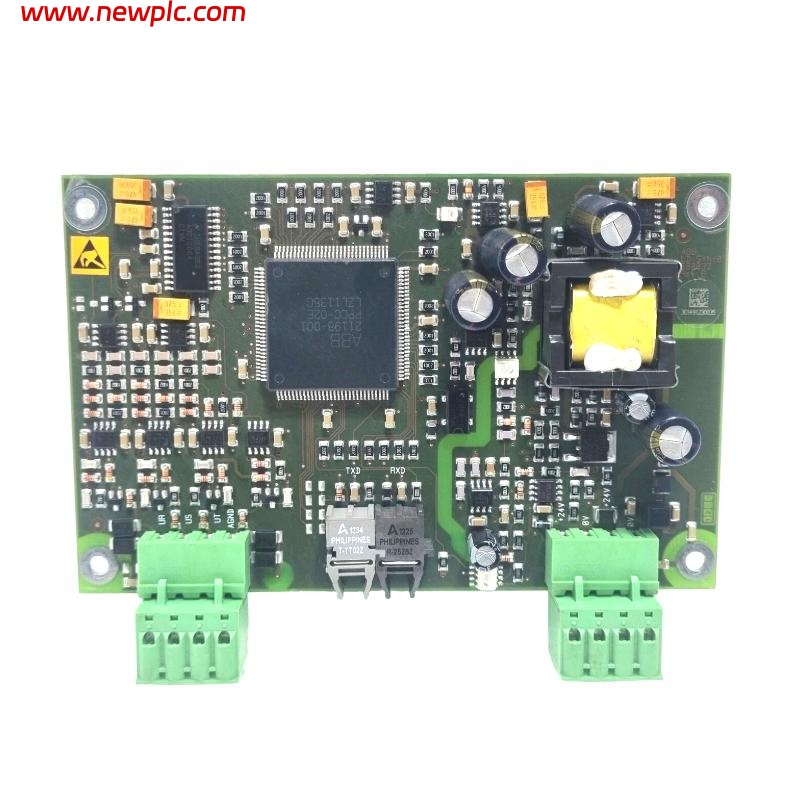

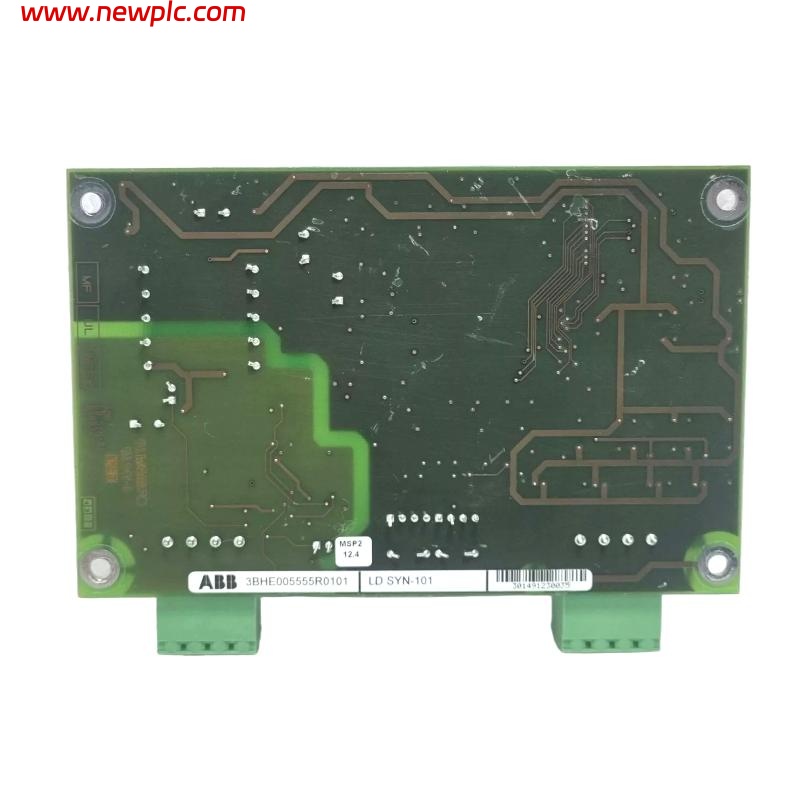

| Product Model | ABB LD SYN-101 3BHE005555R0101 Synchronizing Board |
| Function | Provides voltage, frequency, and phase synchronization for generator grid connection |
| Input Voltage Range | AC 85 ~ 264 V (wide range) |
| Frequency Range | 45 ~ 65 Hz |
| Synchronization Accuracy | Phase difference ≤ ±1°; Frequency difference ≤ ±0.02 Hz; Voltage difference ≤ ±2% |
| Output Signals | Synchronizing lock signal, grid connection permission signal |
| Control Interface | Connects to excitation controller and circuit breaker control system |
| Communication Ports | RS485 interface, supports Modbus RTU protocol |
| Power Requirement | DC 24 V from control system power supply, consumption ≤ 10 W |
| Insulation Level | Complies with IEC 60255 standard, electrical isolation ≥ 2 kV |
| EMC Compliance | Meets IEC/EN 61000 electromagnetic compatibility standards |
| Operating Environment | Operating temperature: -10 ~ +55°C; Storage: -40 ~ +85°C; Humidity: 95% non-condensing |
| Redundancy Support | Can operate in parallel with redundant synchronizing modules |
| Dimensions | 210 × 120 × 30 mm |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: How does the synchronizing board detect voltage and frequency differences?
A1: It uses internal sampling circuits to compare generator and grid voltage/frequency and calculates deviations in real time.
Q2: What is the synchronization phase accuracy?
A2: The module achieves phase synchronization accuracy within ±1°.
Q3: How does the module issue grid connection permission?
A3: When voltage, frequency, and phase differences meet preset thresholds, the module outputs a closing permission signal.
Q4: Does the board support communication interfaces?
A4: Yes, it supports RS485 communication and is compatible with Modbus RTU protocol.
Q5: How is the power supplied?
A5: It is powered by a DC 24V control supply, with maximum consumption around 10W.
Q6: Does the module have EMC immunity?
A6: Yes, it complies with IEC/EN 61000 EMC standards for industrial environments.
Q7: What is the operating temperature range?
A7: The operating range is -10 ~ +55°C, suitable for industrial field applications.
Q8: Does it support redundant operation?
A8: Yes, it can operate in parallel with redundant synchronizing modules to enhance reliability.
