Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |

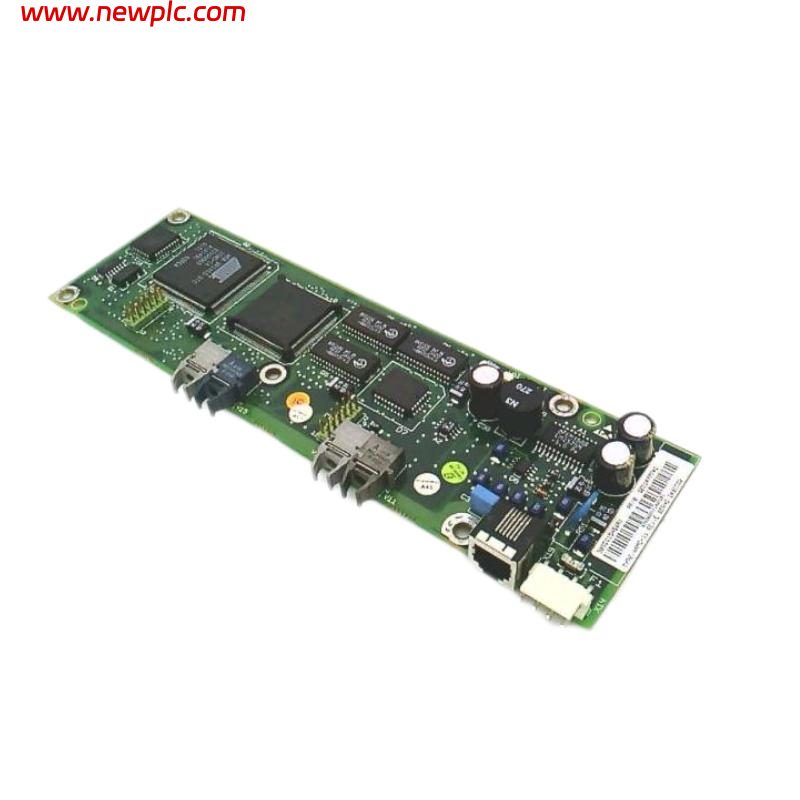

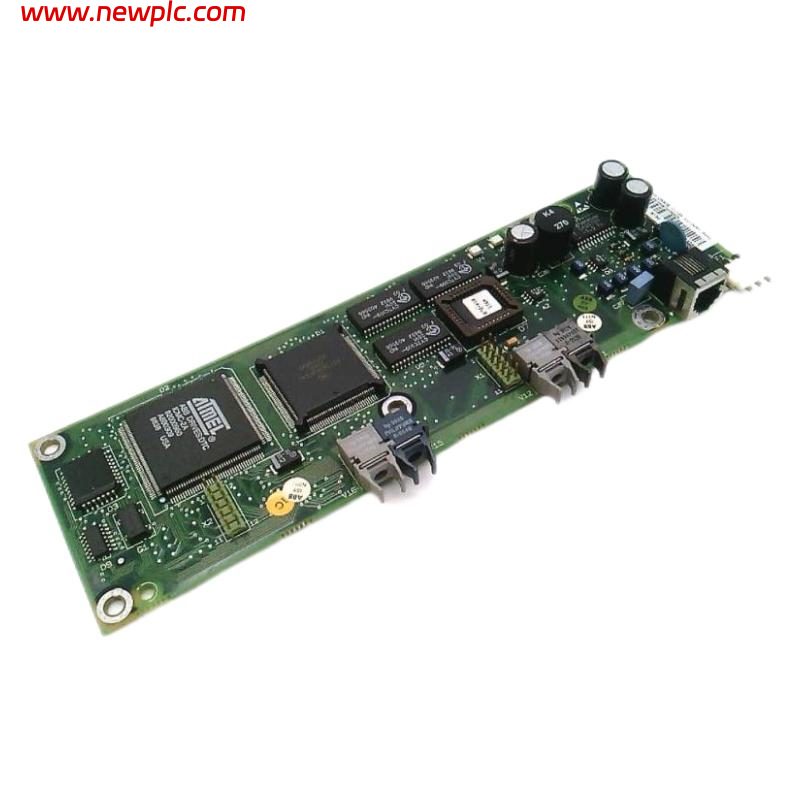

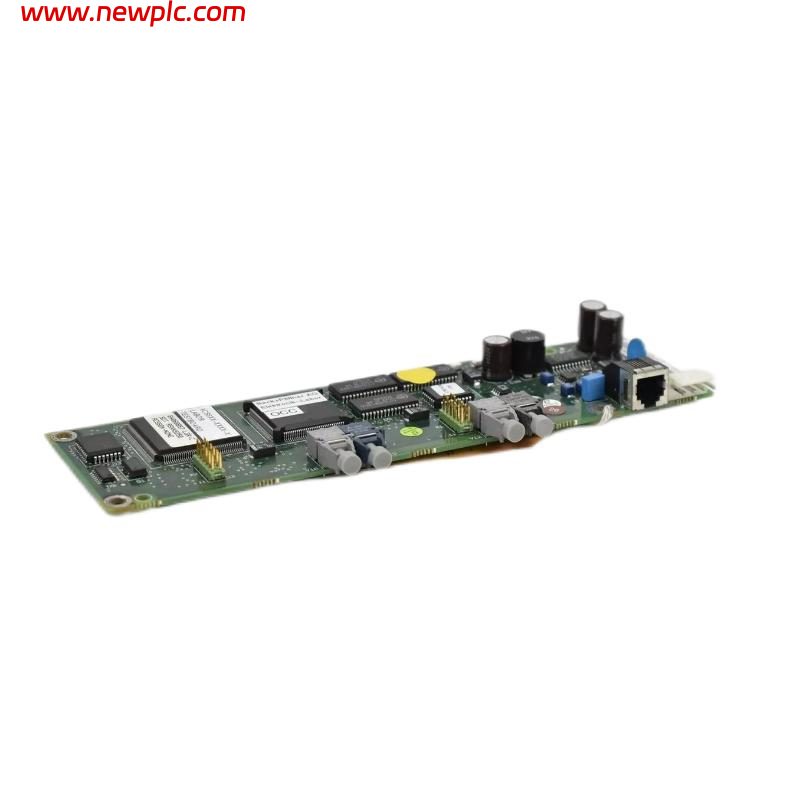

| Model | NAMC-04 |
| Product Type | Application and Motor Control Board |
| Board Function | Drive control, motor control and application processing |
| Application | ABB ACS 600 series frequency converters |
| Communication | DDCS optical communication |
| Control Interface | NIOC interface |
| Control Panel Connection | NIOC X29 |
| Compatible Hardware | ACS 600 / ACx 600 drive systems |
| Typical Application | AC drive control and motor control |
| Installation | Internal drive control assembly |
| Approx. Dimensions | 220 × 150 × 25 mm* |
| Approx. Weight | 0.3–0.5 kg* |
| Product Status | Legacy / replacement component |
FAQ
FAQ
Q1: What is ABB NAMC-04?
A: NAMC-04 is an Application and Motor Control Board used in ABB ACS 600-series drive systems.
Q2: What is the main function of NAMC-04?
A: It performs the main application processing and motor-control functions of the ABB drive.
Q3: Which ABB drives use NAMC-04?
A: It is associated with the ACS 600 / ACx 600 family of ABB frequency converters. ABB documentation explicitly refers to software for NAMC-03/04 control boards.
Q4: Is NAMC-04 a PLC module?
A: No. It is a dedicated ABB drive control board, not a general-purpose PLC CPU or I/O module.
Q5: Does NAMC-04 support DDCS communication?
A: Yes. ABB documentation identifies the DDCS optical communication channel as compatible with NAMC-03/04/11 boards.
Q6: Where is the control panel connected when using NAMC-04?
A: For an NAMC-03/04 configuration, ABB documentation indicates the control panel connection is through the NIOC board, connector X29.
Q7: What are the dimensions and weight?
A: A reliable ABB OEM specification for the standalone NAMC-04 board was not found. For preliminary shipping purposes, approximately 220 × 150 × 25 mm and 0.3–0.5 kg can be used.
Q8: Can NAMC-04 be replaced directly by NAMC-11 or NAMC-51?
A: No, not as a simple plug-and-play replacement. NAMC-04, NAMC-11 and NAMC-51 belong to different hardware generations and have different interfaces/configurations. The complete drive type and control-board revision must be checked before replacement.
