Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | NGDR-02 |
| Part Number | 58908185F |
| Alternate Part Number | 57619091D |

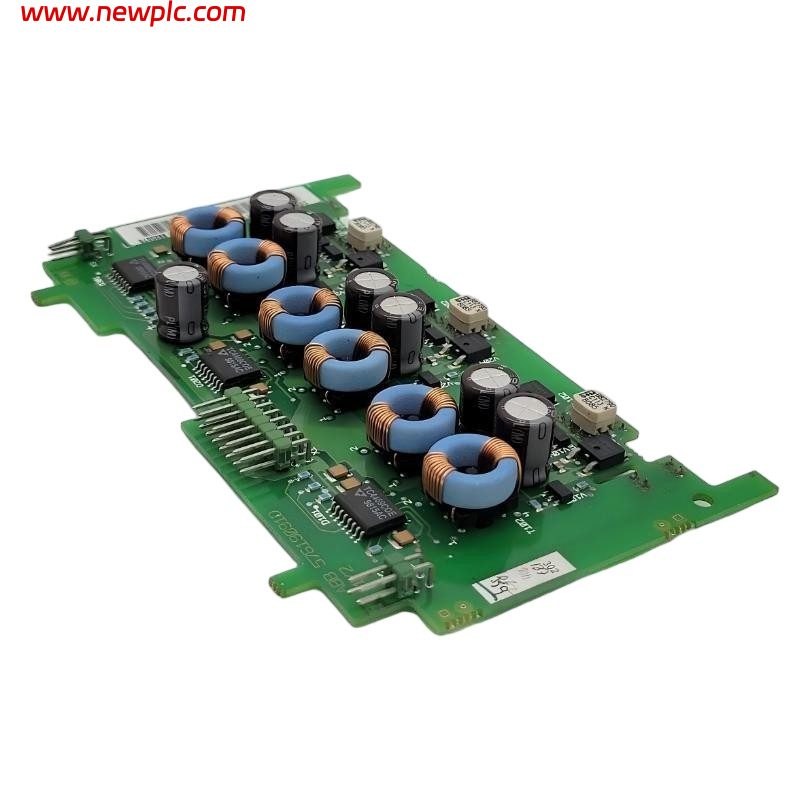

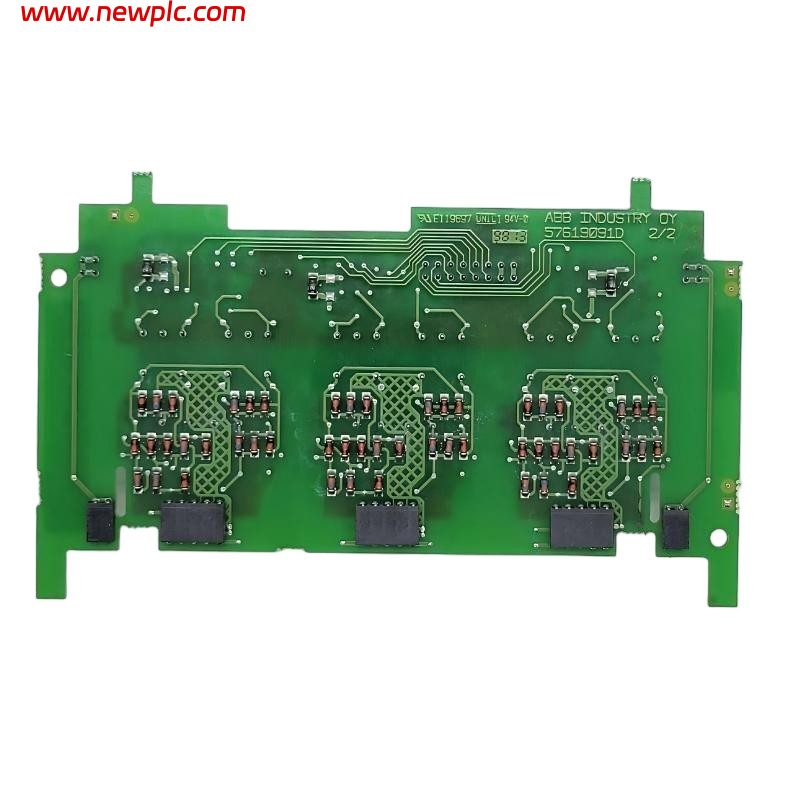

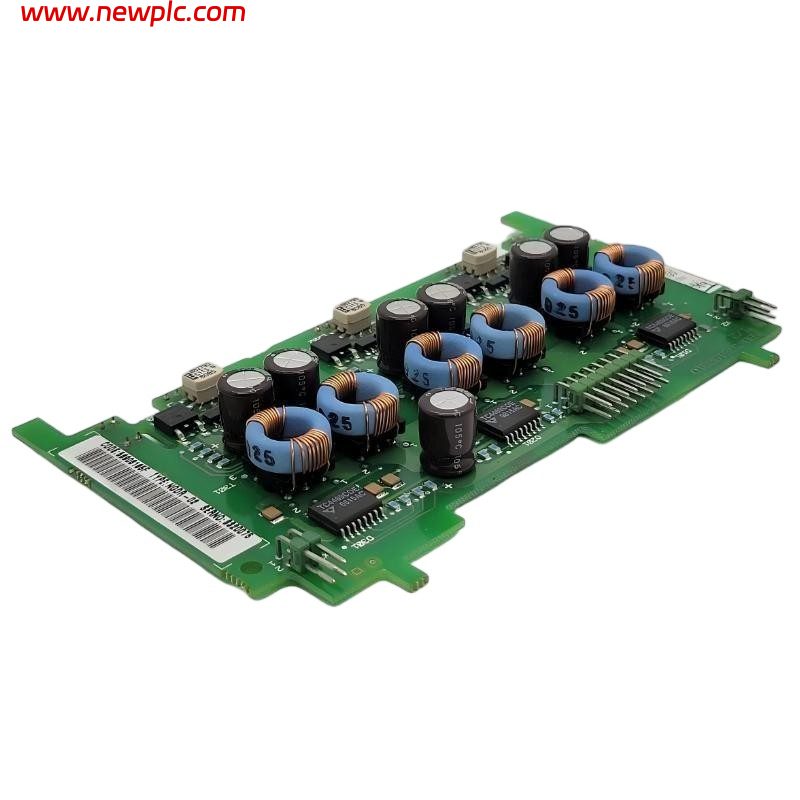

| Product Type | Inverter / Gate Circuit Board |
| Board Type | Drive power / gate interface PCB |
| Application | ABB industrial frequency converters / drives |
| Drive Family | ABB ACS600 series |
| Main Function | IGBT gate-drive / power-stage interface |
| Installation | Internal drive assembly |
| Typical Application | Variable-frequency drive power control |
| Approx. Dimensions | Approx. 260 × 160 × 35 mm* |
| Approx. Weight | 0.3–0.5 kg* |
| Product Status | Industrial drive replacement component |
FAQ
FAQ
Q1: What is ABB NGDR-02?
A: NGDR-02 is an ABB drive circuit board used in the power-control section of compatible ABB frequency converters, particularly ACS600-series drive hardware.
Q2: What are the part numbers for NGDR-02?
A: The commonly associated identifiers are 58908185F and 57619091D. Supplier listings explicitly identify these numbers together with NGDR-02.
Q3: Is NGDR-02 a PLC module?
A: No. It is an internal ABB drive circuit board, not a conventional PLC CPU or I/O module.
Q4: What is the main function of NGDR-02?
A: It functions as part of the drive’s power-stage/gate-control circuitry, providing the interface needed for control of the inverter power devices.
Q5: Which ABB drives use NGDR-02?
A: Available references associate NGDR-02 with ABB ACS600-series frequency converters. Exact compatibility should be checked against the complete drive type code and board revision before replacement.
Q6: Is 58908185F the same as 57619091D?
A: They are commonly listed together for the same NGDR-02 board assembly. The two numbers should not automatically be assumed interchangeable with every NGDR-02 revision without checking the drive configuration.
Q7: What are the dimensions and weight?
A: For preliminary logistics planning, approximately 260 × 160 × 35 mm and 0.3–0.5 kg can be used. Actual dimensions and shipping weight may vary depending on packaging.
Q8: What is ABB NGDR-02 used for?
A: It is used in ABB variable-frequency drives/inverters as part of the internal power-control circuitry, supporting the operation and control of the drive’s IGBT power stage
