Technical Specifications
| Parameter | Specification |
|---|---|

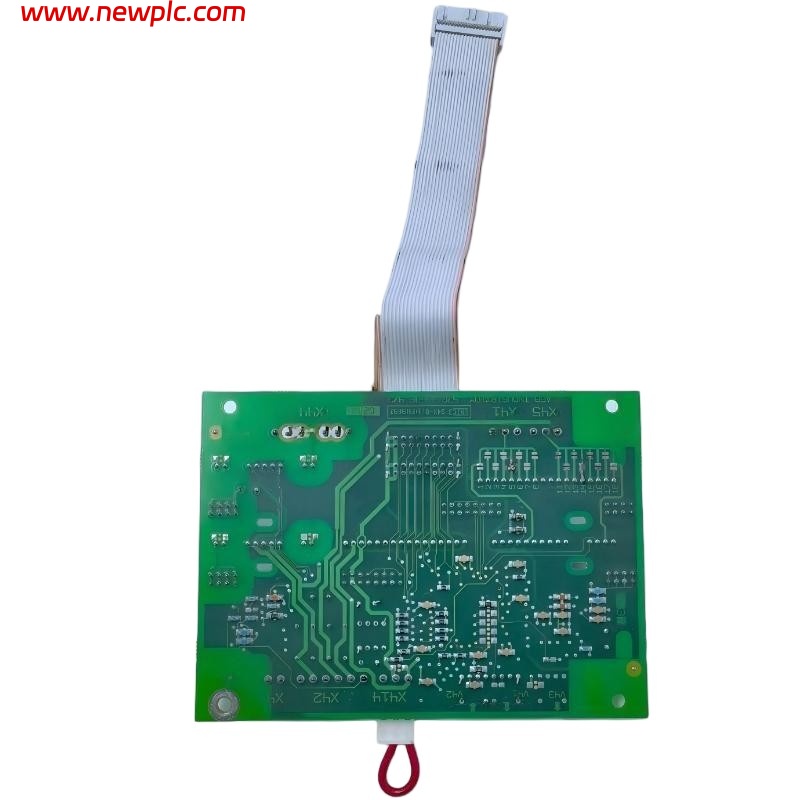

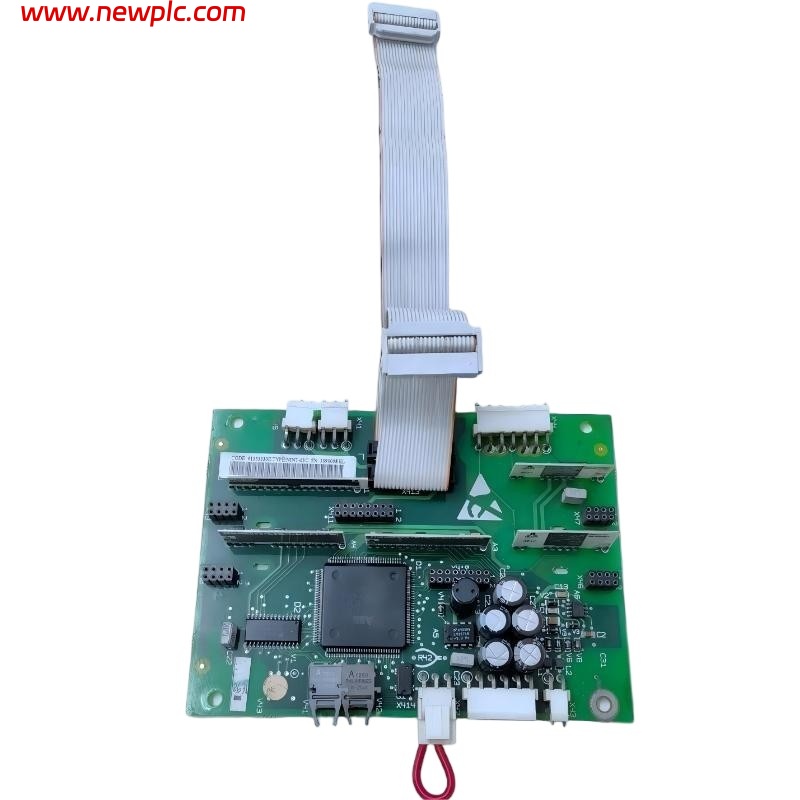

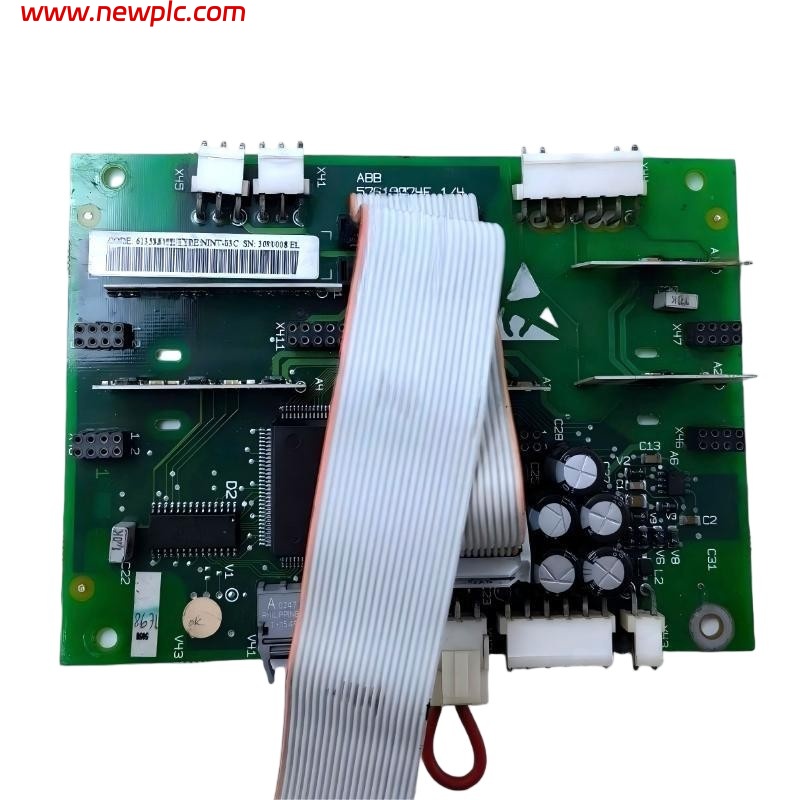

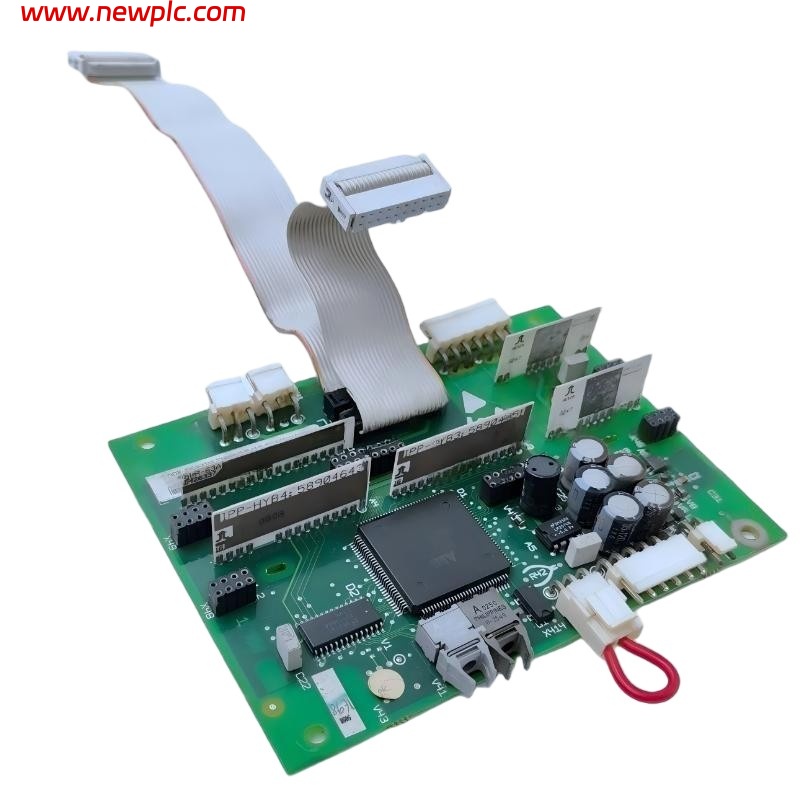

| Product Model | ABB NINT-63C |
| Product ID | 61353330 |
| Product Type | Inverter Amplifier / Main Circuit Interface Board |
| Manufacturer | ABB |
| Compatible Drive Series | ABB ACS600 Variable Frequency Drives |
| Main Function | Amplifies and processes control signals for inverter operation and power conversion |
| Input Signal Type | Analog control signals (0–10 V typical) |
| Output Signal Type | Amplified control signals for inverter control circuits |
| Power Supply | 15–24 V DC (typical 15 V DC) |
| Rated Current | Approximately 50 mA |
| Communication Interface | Internal drive communication interface |
| Installation Type | Plug-in circuit board / panel mounting |
| Cooling Method | Passive cooling via drive enclosure airflow |
| Protection Class | IP20 (depends on enclosure) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | Approximately 110 × 90 × 40 mm |
| Weight | Approximately 0.15–0.20 kg |
| Application | Industrial automation and motor drive systems |
| Compliance Standards | CE, RoHS |
FAQ
FAQ
Q1. What is the main function of the NINT-63C board?
It amplifies and processes control signals used by the inverter in ABB drives to ensure stable motor control and efficient energy conversion.
Q2. Which drive series uses the NINT-63C module?
The board is primarily used in ABB ACS600 series variable frequency drives.
Q3. What type of signals does the board handle?
It handles analog control signals, typically in the 0–10 V range, and outputs amplified signals for inverter control.
Q4. What power supply does the module require?
The board typically operates with a 15–24 V DC supply provided by the drive system.
Q5. Where is the board installed in the drive system?
It is installed inside the drive’s control section as a plug-in circuit board.
Q6. What role does it play in motor drive performance?
The board helps regulate signal processing for the inverter, improving motor speed control, efficiency, and system stability.
Q7. What environmental conditions can the board operate in?
It operates between -20°C and +70°C and can be stored at temperatures from -40°C to +85°C.
Q8. What precautions should be taken when replacing the module?
The drive must be completely powered down, and proper electrostatic discharge protection should be used when handling the board.
