Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |

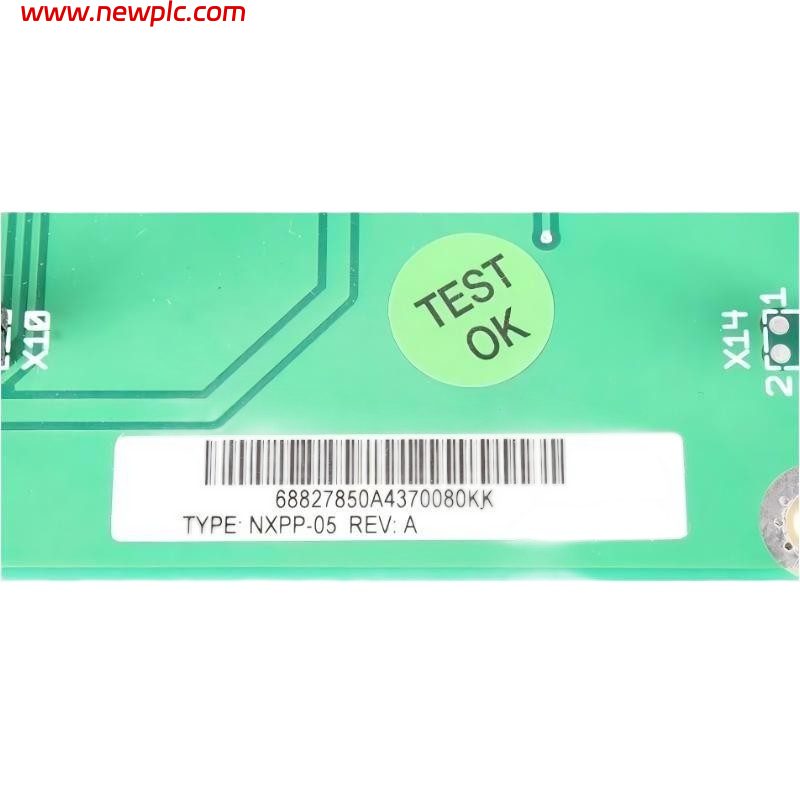

| Model | NXPP-05 |
| Part Number | 68827809 |

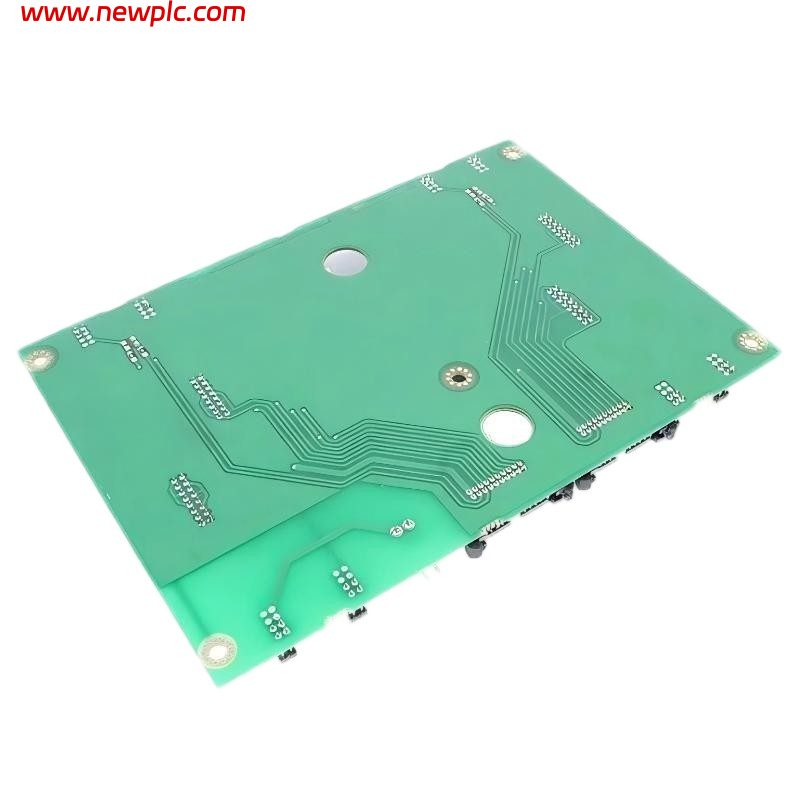

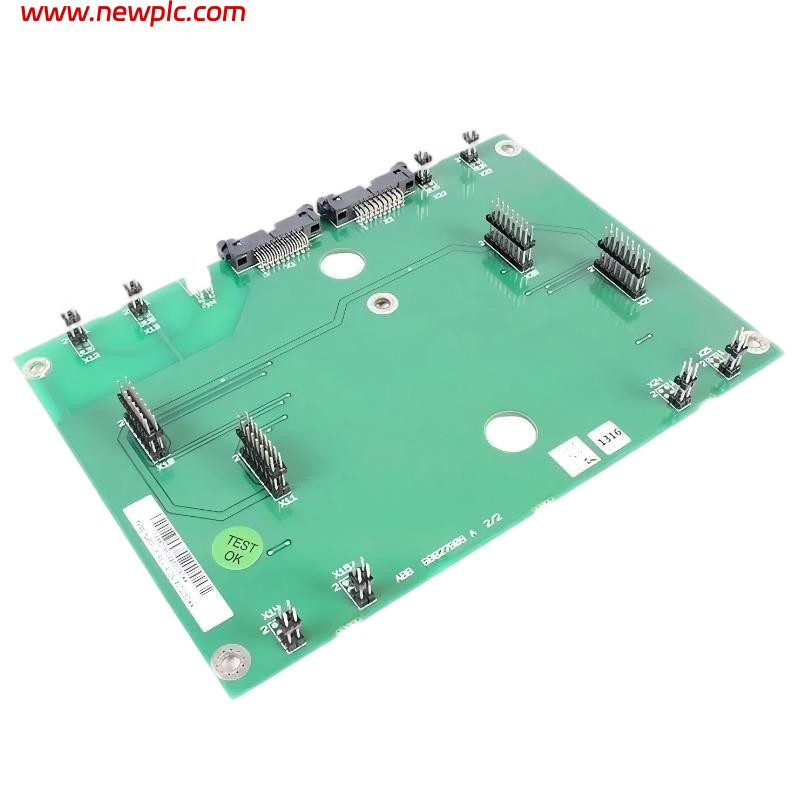

| Product Type | Inverter / Control Power Board |
| Board Function | Inverter power-stage control and interface |
| Application | ABB industrial frequency converters |
| Compatible Drive Family | ABB ACS600-series drive equipment; related listings also associate the NXPP family with ACS800/ACS880 systems |
| Phase / Position | U-phase, left-side NXPP-0X |
| Logic Supply | 24 V DC |
| Isolation | 1500 V DC |
| Power Sequencing | +5 V / ±15 V |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| Approx. Dimensions | 226 × 141 × 10 mm |
| Approx. Net Weight | 0.12 kg |
| Approx. Shipping Weight | 1 kg |
| Country of Origin | Sweden* |
| Product Status | Industrial drive replacement component |
FAQ
FAQ
Q1: What is ABB NXPP-05 68827809?
A: It is an ABB NXPP-05 inverter/control board, identified by part number 68827809, used in ABB industrial drive equipment.
Q2: What is the main function of NXPP-05?
A: It is part of the drive’s inverter power-stage control and interface circuitry, supporting control and signal processing within the inverter.
Q3: Which phase does NXPP-05 correspond to?
A: The available product description identifies it as the U-phase left-side NXPP-0X board.
Q4: What is the logic supply voltage?
A: The specified logic supply is 24 V DC.
Q5: What is the isolation voltage?
A: The published specification gives 1500 V DC isolation.
Q6: What are the operating and storage temperatures?
A: The operating range is approximately 0 to +60 °C, while the storage range is -40 to +85 °C.
Q7: What are the dimensions and weight?
A: The listed dimensions are approximately 226 × 141 × 10 mm, with a net weight of approximately 0.12 kg. For shipping, a packaged weight of around 1 kg is a safer practical reference.
Q8: Is NXPP-05 the same as other NXPP boards?
A: No. NXPP-05, NXPP-03, NXPP-03C, NXPP-02 and other NXPP variants have different configurations and part numbers. The exact ABB part number and drive configuration should be matched before replacement.
