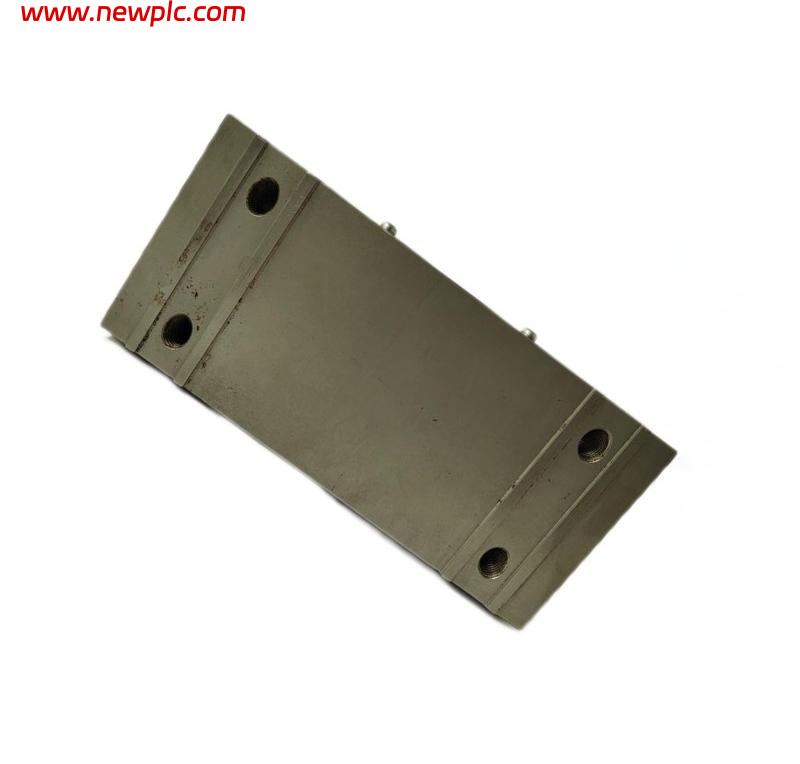

ABB PFTL 101A 3BSE004172R1 Load Cell

FAQ

Q1: What is ABB 3BSE004172R1?
A: It is an ABB PFTL 101A-2.0kN Pressductor load cell used for industrial force and web tension measurement.

Q2: What is the rated load of PFTL 101A 3BSE004172R1?
A: The nominal load is 2.0 kN. ABB lists this exact ordering number for the 2.0 kN PFTL 101A version.

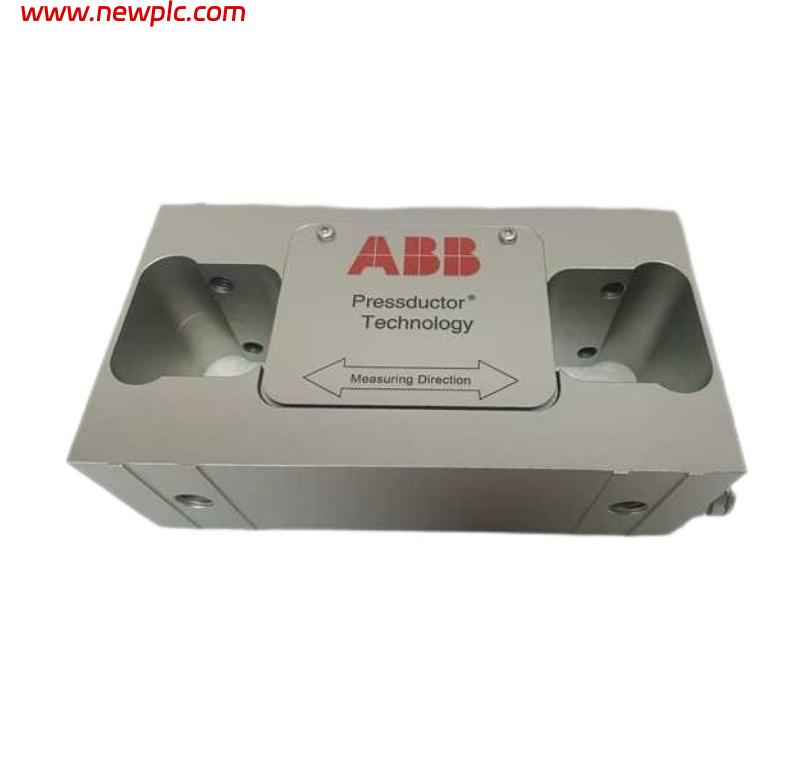

Q3: What is the measurement direction?
A: It is designed for horizontal force measurement, making it suitable for web tension systems where the main force component acts horizontally.

Q4: Where is this load cell commonly used?
A: Typical applications include paper, printing, metal processing and other web-handling systems where accurate tension measurement is required.

Q5: What are the dimensions of the load cell?
A: The PFTL 101A body is approximately 230 × 84 × 125 mm (L × W × H). ABB’s dimension drawing covers the PFTL 101A 0.5–2.0 kN range.

Q6: What is the weight of 3BSE004172R1?
A: The standard technical data lists approximately 10 kg. ABB’s current product information lists 10.5 kg, so 10–10.5 kg is a reasonable reference range.

Q7: Is the PFTL 101A suitable for harsh industrial environments?
A: Yes. The standard PFTL 101A has an IP65 protection rating and a stainless-steel construction. The PFTL family also includes higher environmental-protection versions such as the AE and AER variants.

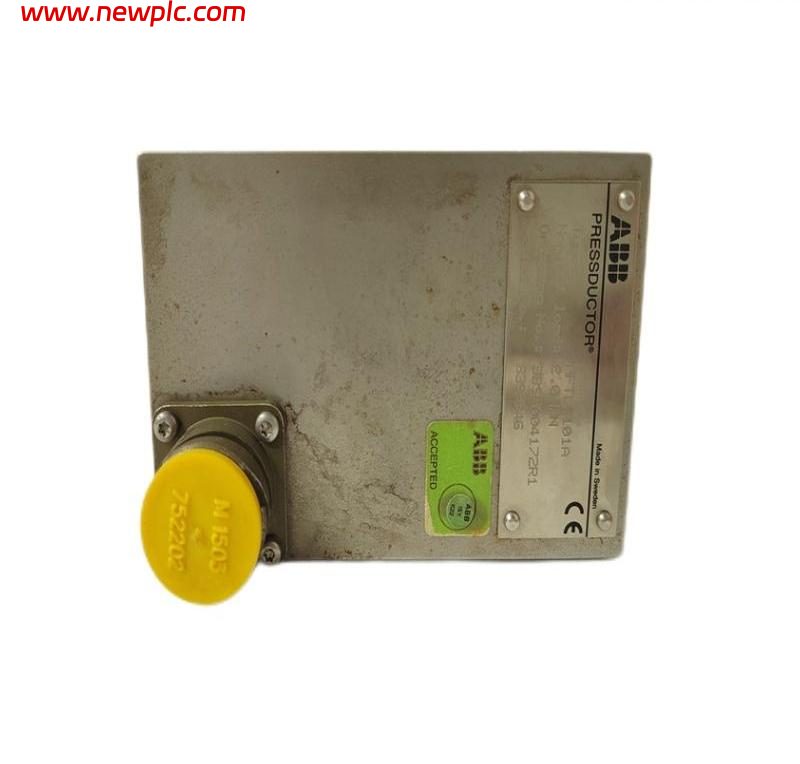

Q8: What cable is compatible with 3BSE004172R1?
A: ABB lists compatible male-plug cables including the 15 m 3BSE018741R15, 30 m 3BSE018741R30, and 50 m 3BSE018741R50 versions.
