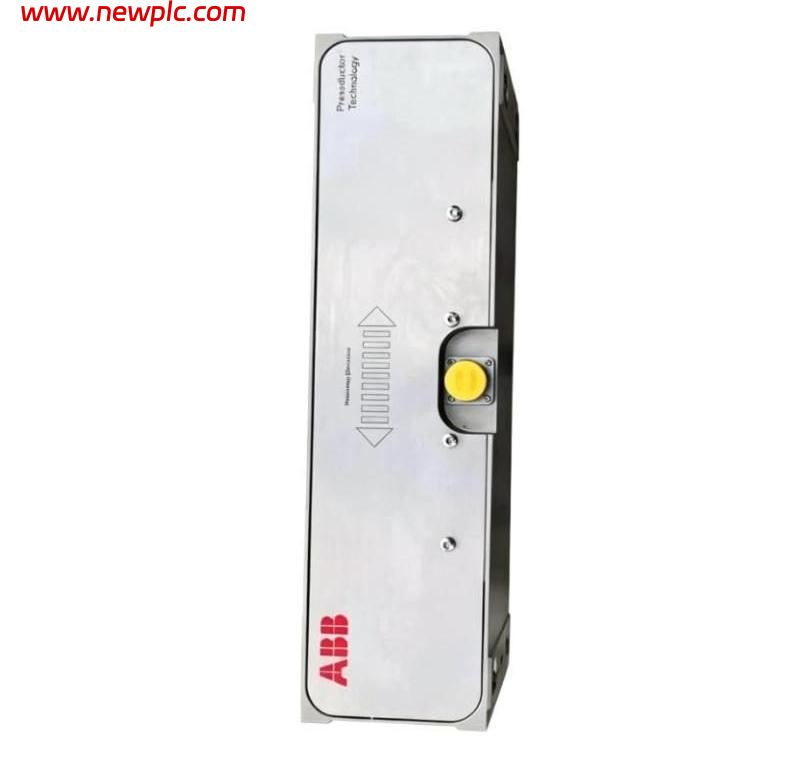

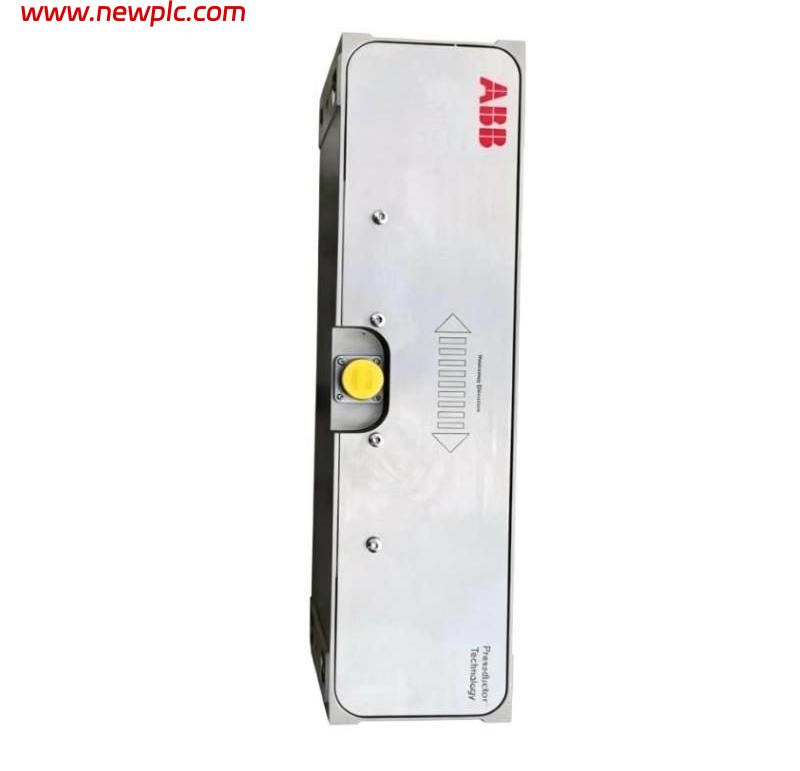

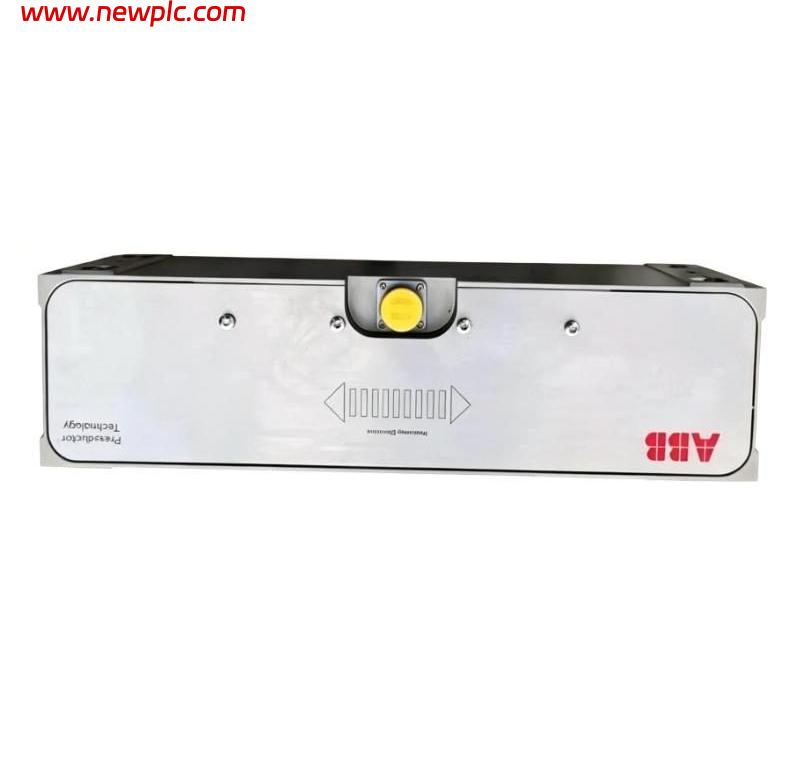

ABB PFTL 201C 3BSE007913R0050 Pressductor PillowBlock Load Cell

FAQ

Q1: What is ABB 3BSE007913R0050?
A: It is an ABB PFTL 201C Pressductor PillowBlock load cell used for horizontal force and strip tension measurement.

Q2: What is the rated load of 3BSE007913R0050?
A: The nominal rated load is 50 kN, with an extended load capability of 75 kN.

Q3: What is the measurement direction?
A: The PFTL 201C measures force in the horizontal direction. This allows the load cell to measure the horizontal component of strip tension without the roll’s tare weight significantly affecting the measurement.

Q4: Where is the PFTL 201C commonly used?
A: It is commonly used in rolling mills, paper machines, metal processing lines and other continuous web or strip-processing equipment where accurate tension measurement is required.

Q5: What are the dimensions of 3BSE007913R0050?
A: The PFTL 201C dimensions are approximately 450 × 110 × 125 mm.

Q6: How much does the PFTL 201C weigh?
A: ABB’s technical data lists the standard PFTL 201C weight at approximately 35 kg.

Q7: What is the overload capacity?
A: For the 50 kN PFTL 201C version, the overload capacity in the measurement direction is 500 kN. This refers to the maximum load without permanent change to the calibrated characteristics.

Q8: Does the PFTL 201C use a strain gauge?
A: No. It uses ABB’s Pressductor electromagnetic measurement principle. The sensor is machined from stainless steel, with the sensing elements integrated directly into the load-cell body.

3BSE007913R0050 ABB PFTL 201C
