Technical Specifications
| Item | Description |
|---|---|

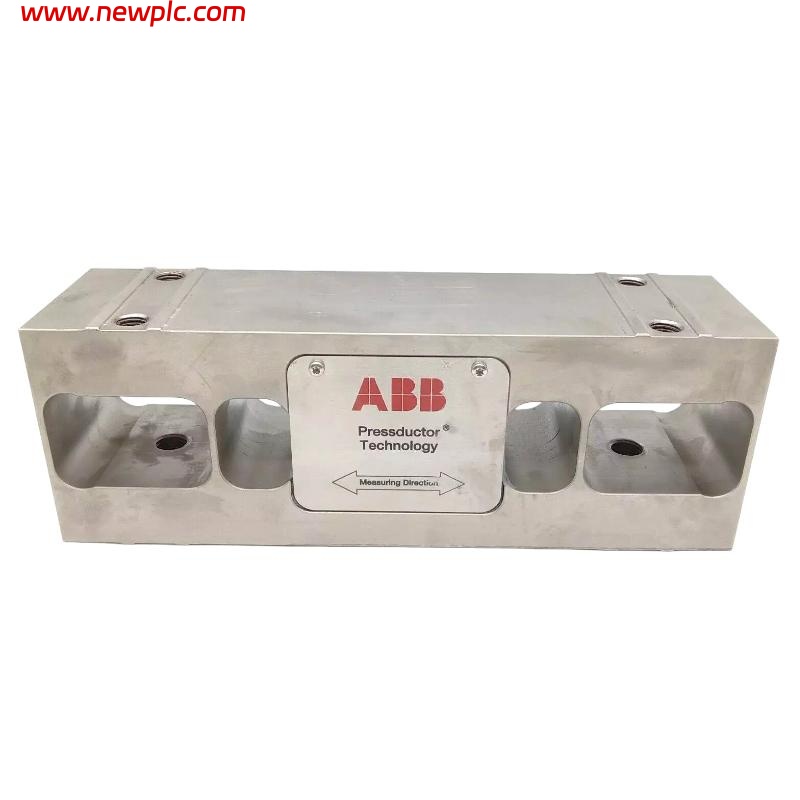

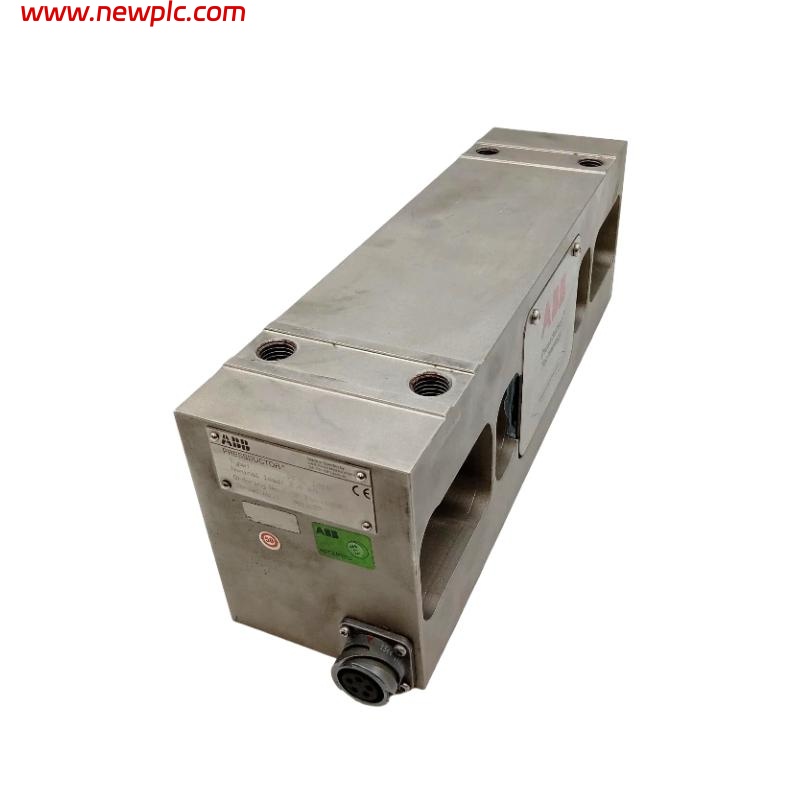

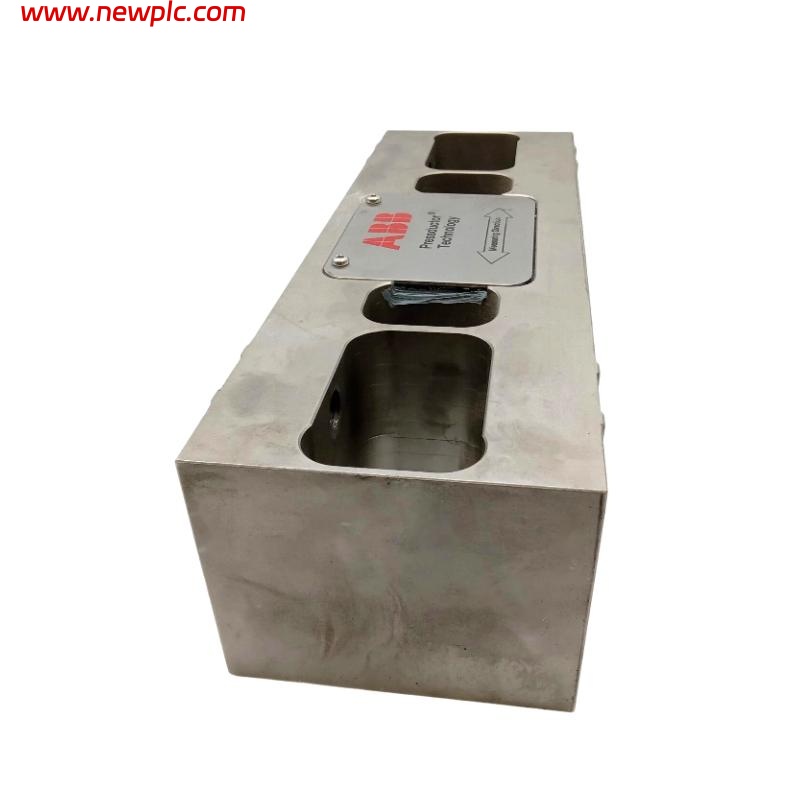

| Product Model | ABB PFVL141C-60MN 3BSX670292D0064 |
| Product Type | Rolling Force Load Cell |
| Manufacturer | ABB |
| Function | Measures rolling force in rolling mills and provides feedback to control systems |
| Measurement Range | 0 – 60 MN |
| Output Signal | Analog voltage or current (depending on configuration) |
| Accuracy | ±0.2% of full scale |
| Excitation Voltage | 10 V DC nominal |
| Overload Capacity | 150% of rated load |
| Environmental Protection | IP65 |
| Operating Temperature | –20 °C to +80 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | Flange or bolt-mounted |
| Compliance | CE, UL |
| Dimensions | 240 × 40 × 120 mm |
| Weight | 1.5 kg |
FAQ
FAQ
Q1: What is the main function of the ABB PFVL141C-60MN load cell?
It measures rolling force in rolling mills and provides feedback to control systems.
Q2: What is the measurement range?
0 – 60 MN.
Q3: What type of output signal does it provide?
Analog voltage or current, depending on configuration.
Q4: What is the accuracy of the load cell?
±0.2% of full scale.
Q5: What is the excitation voltage required?
10 V DC nominal.
Q6: Can it handle overloads?
Yes, up to 150% of the rated load.
Q7: What is the operating temperature range?
–20 °C to +80 °C.
Q8: How is the load cell mounted?
Flange or bolt-mounted.
