Technical Specifications
| Parameter | Specification |
|---|---|

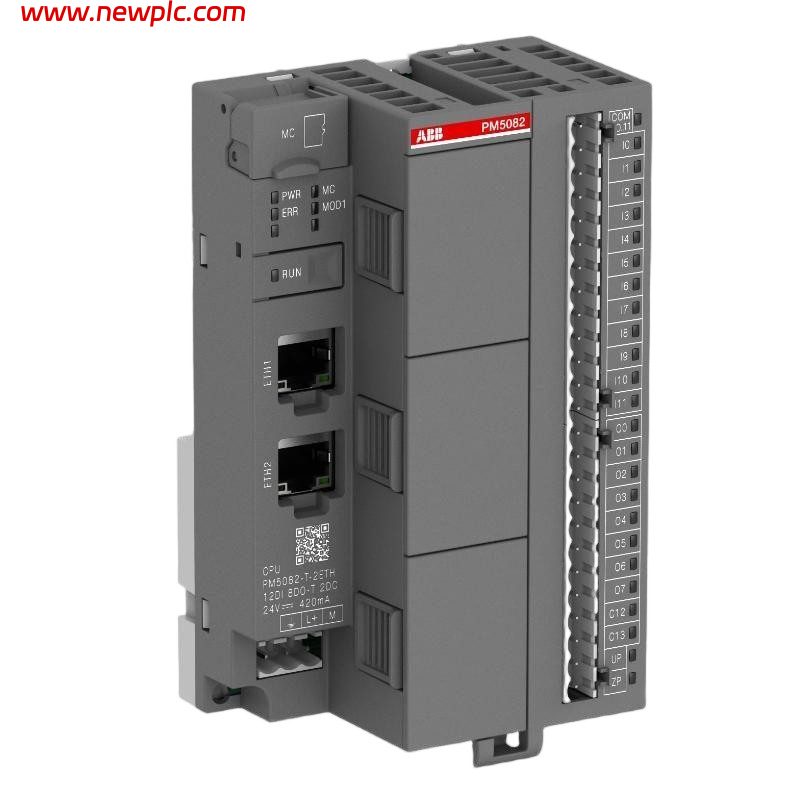

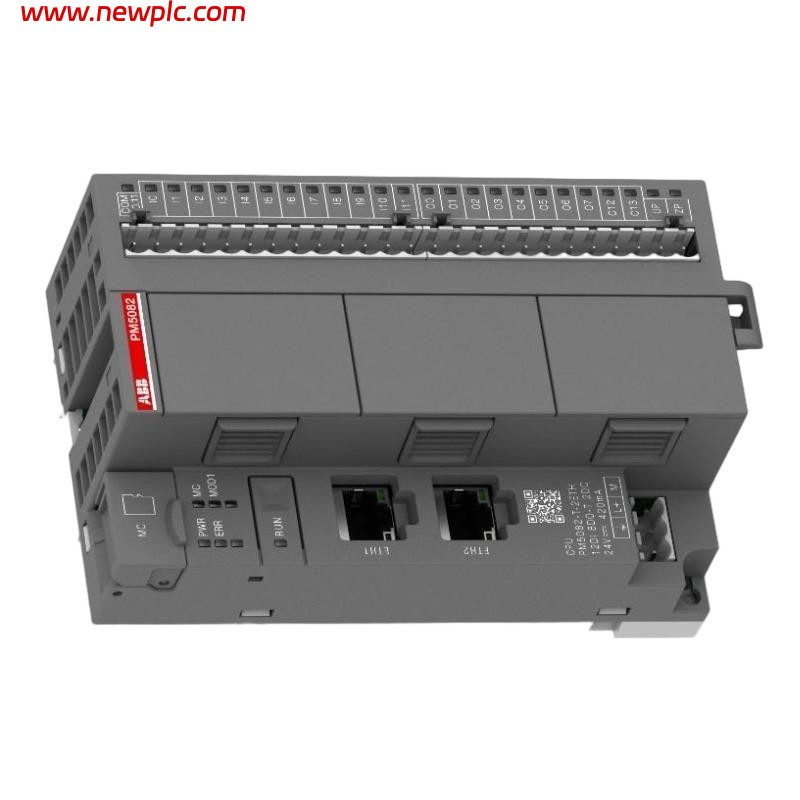

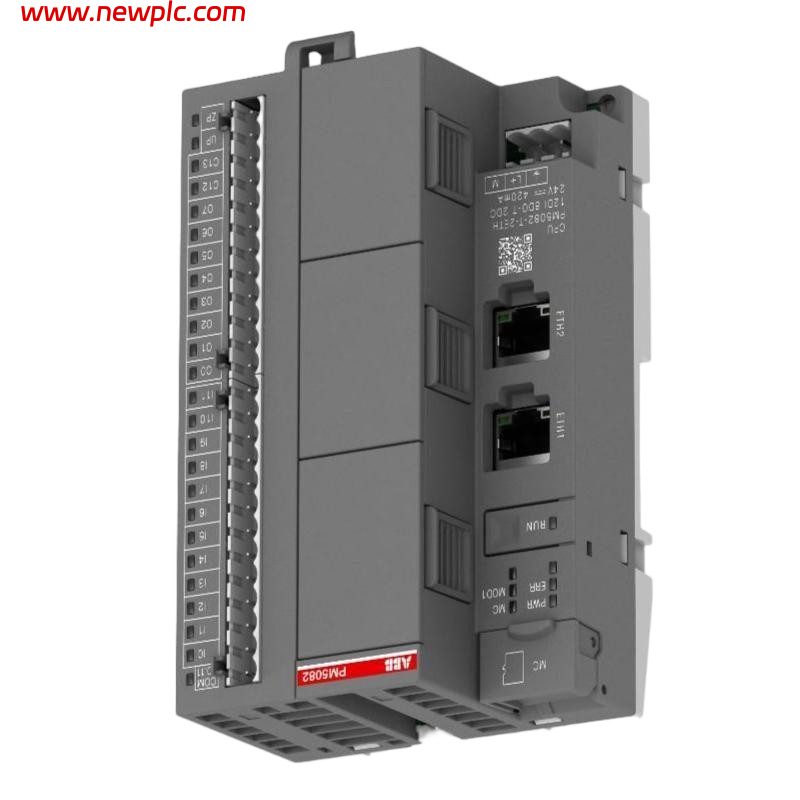

| Product Name | ABB PM5082-T-2ETH |
| Product ID | 1SAP124600R0173 |
| Manufacturer | ABB |
| Product Type | PLC Processor Module (AC500-eCo V3) |
| Series | ABB AC500-eCo |
| Function | High-performance PLC CPU for industrial automation and machine control |
| Memory | 8 MB |
| Memory Type | RAM (user data and program memory) |
| Digital Inputs | 12 × 24 V DC |
| Digital Outputs | 8 × Transistor outputs (24 V DC, 0.5 A) |
| Configurable I/O | 2 × DC 24 V configurable I/Os |
| Ethernet Interfaces | 2 × Integrated Ethernet ports |
| Communication Protocols | Modbus TCP/IP, Ethernet communication |
| Expansion Capability | 3 option slots for I/O and communication modules |
| Supply Voltage | 20.4 – 28.8 V DC |
| Rated Voltage | 24 V DC |
| Programming Software | ABB Automation Builder |
| Protection Rating | IP20 |
| Mounting Type | DIN rail mounting |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% non-condensing |
| Cooling Method | Natural convection |
| Dimensions (H × W × D) | Approx. 135 × 82 × 74 mm |
| Weight | Approx. 0.262 kg |
| Application | Machine automation, packaging systems, conveyors, material handling, industrial process control |
| Country of Origin | Germany / Finland / China (varies by production batch) |
FAQ
FAQ
Q1: What is the ABB PM5082-T-2ETH used for?
It is a PLC processor module used in ABB AC500-eCo systems for industrial automation and machine control applications.
Q2: What is the advantage of having two Ethernet ports?
It allows separation of networks (for example HMI and programming), or integration into redundant/segmented industrial networks.
Q3: How much memory does it have?
It has 8 MB RAM used for program execution and user data storage.
Q4: What type of outputs does it provide?
It provides 8 transistor outputs suitable for high-speed switching applications.
Q5: Can it be expanded with additional modules?
Yes, it supports up to 3 option slots for communication and I/O expansion modules.
Q6: What software is required for programming?
ABB Automation Builder is used for programming, configuration, and diagnostics.
Q7: What is the main difference compared to lower PM50xx models?
PM5082 provides higher performance, more memory, dual Ethernet ports, and greater expansion capability.
Q8: What industries commonly use this PLC?
It is commonly used in packaging machinery, conveyor systems, factory automation, robotics, and general industrial control applications.
