Technical Specifications
| Parameter | Specification |
|---|---|

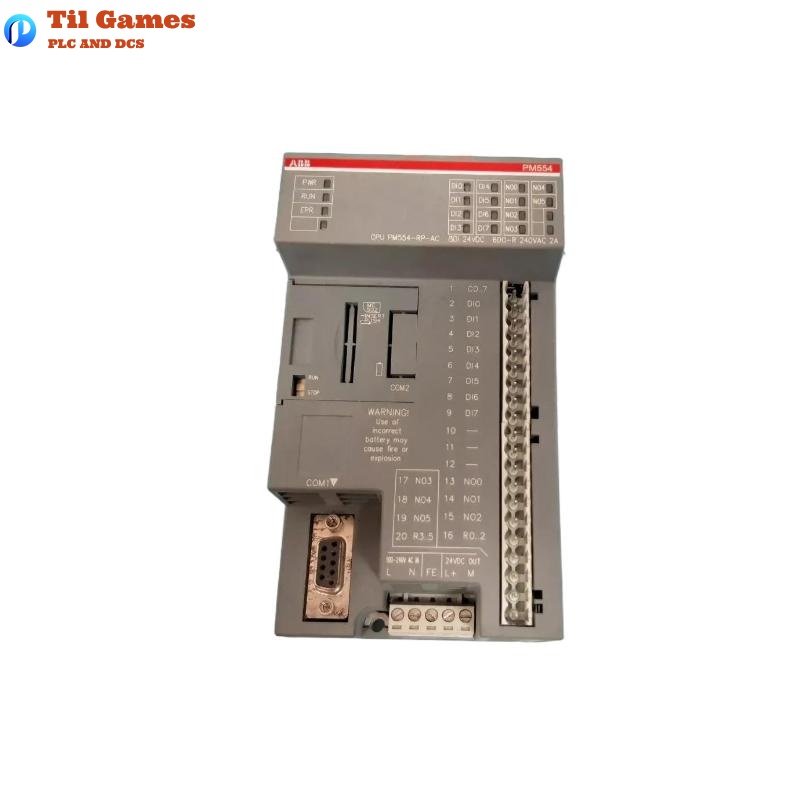

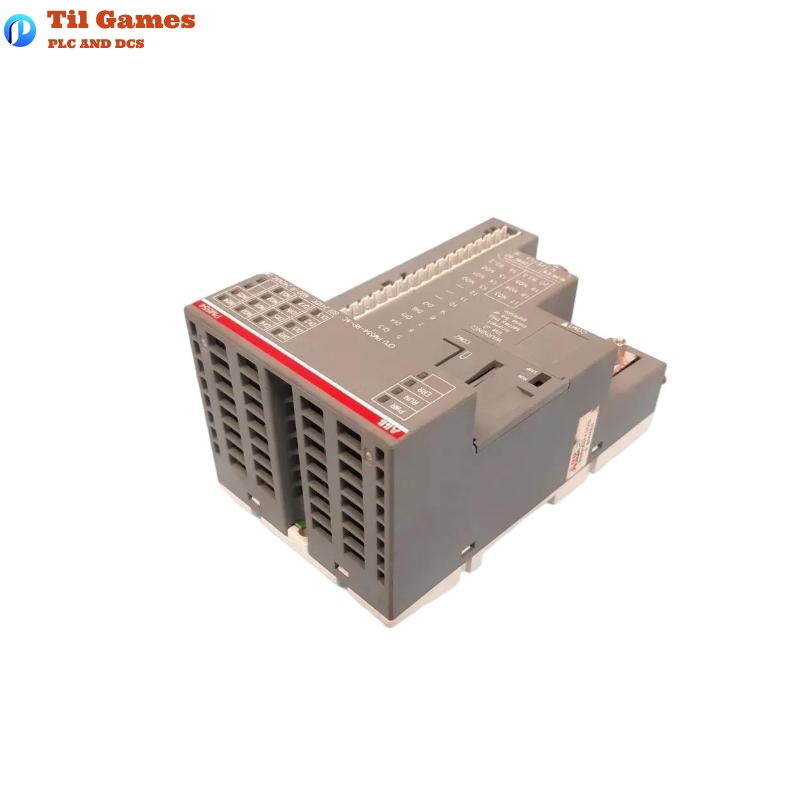

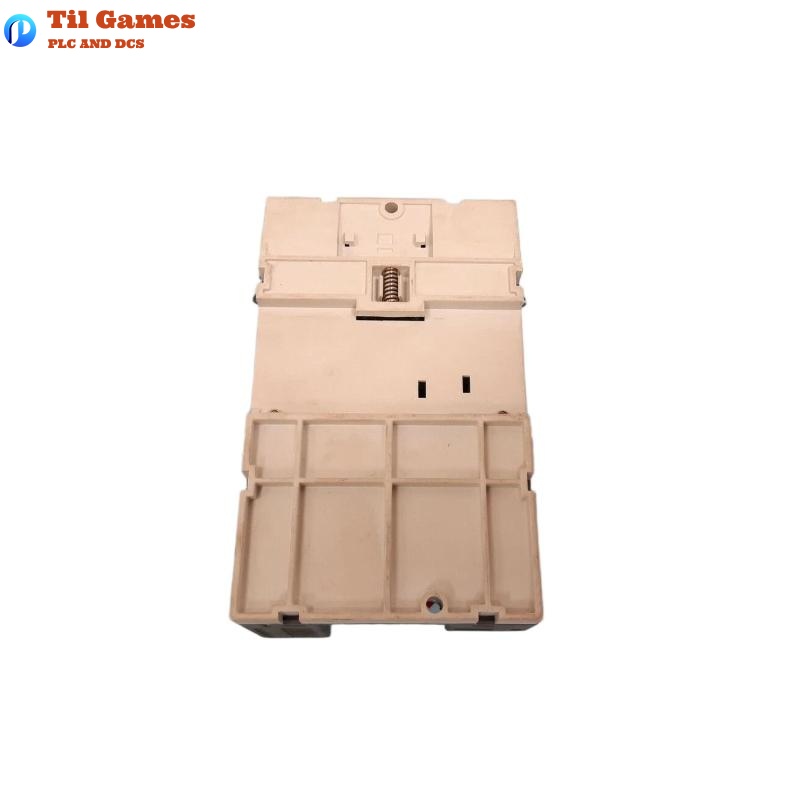

| Model Number | PM554-RP-AC |
| Part Number | 1SAP120800R0001 |
| Product Type | AC500-eCo Processor Module |
| Processor Type | Freescale ARM 32-bit |
| Processor Clock Speed | 50 MHz |
| Program Memory | 128 kB Flash EPROM |
| Data Memory (VAR) | 10 kB |
| Data Memory (VAR_RETAIN) | 1 kB (buffered in flash) |
| Data Memory (%RB, persistent) | 1 kB (configurable) |
| Data Memory (%MB) | 2 kB |
| Power Supply Input | 100–240 V AC |
| Power Consumption (typical) | 20 mA @ 100 V AC, 12 mA @ 240 V AC |
| Power Consumption (max.) | 200 mA @ 100 V AC, 110 mA @ 240 V AC |
| Inrush Current | Typical 0.3 A²s |
| Max. Power Dissipation | 4.8 W |
| Onboard I/Os | 8 DI (Digital Inputs), 6 DO-R (Relay Outputs) |
| Max. I/O Modules Supported | 10 |
| Serial Interface COM1 | RS-485, 9-pin D-sub (no galvanic isolation) |
| Programming Languages | IL, FBD, LD, SFC, ST, CFC |
| Execution Time (1000 instr.) | Binary: 0.08 ms; Word: 0.1 ms; Float: 1.2 ms |
| Mounting | Horizontal or Vertical |
| Operating Temperature | 0°C to +60°C (horizontal), 0°C to +40°C (vertical) |
| Storage/Transport Temperature | -40°C to +70°C |
| Humidity | Max. 95% non-condensing |
| Protection Class | IP20 |
| Dimensions | 137 x 35.6 x 137.16 mm |
| Weight | 0.397 kg (397 g) |
FAQ
FAQ
Q1: What is the supported power supply voltage range?
A1: The module supports a wide input voltage range from 100 V AC to 240 V AC.
Q2: What programming languages are available for this module?
A2: It supports IL, FBD, LD, SFC, ST, and CFC according to IEC 61131-3.
Q3: What communication interfaces does the module provide?
A3: It offers an RS-485 serial interface (COM1) with a 9-pin D-sub connector, supporting Modbus, ASCII, and CS31.
Q4: Is real-time clock (RTC) functionality available?
A4: Yes, RTC is available as an optional feature using the TA561-RTC accessory.
Q5: What is the maximum power dissipation of the module?
A5: The maximum power dissipation is 4.8 W.
Q6: How many digital I/Os are included onboard?
A6: The module includes 8 digital inputs and 6 relay outputs.
Q7: How many I/O expansion modules can be added?
A7: Up to 10 I/O modules can be connected.
Q8: Are there any restrictions on the installation orientation?
A8: The module supports both horizontal and vertical installation. In vertical installations, the output load per group must be reduced to 50%.
