Technical Specifications
| Parameter | Value |
|---|---|

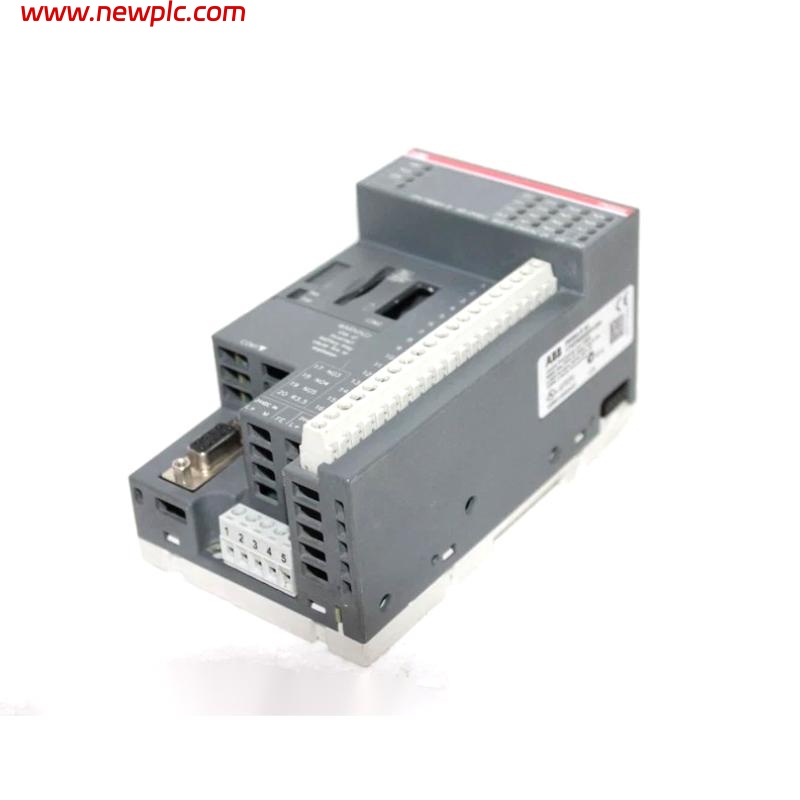

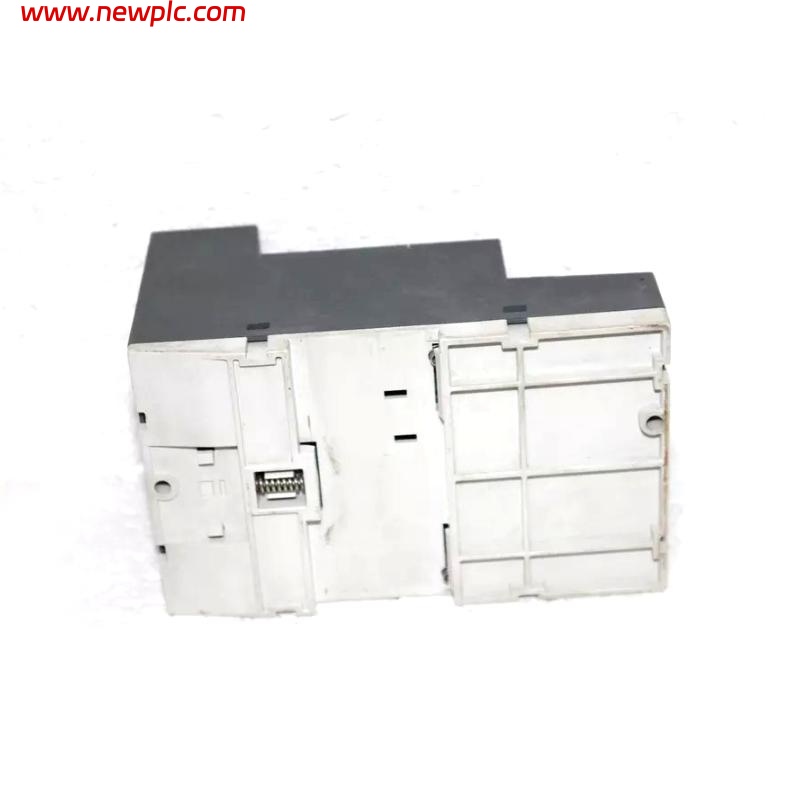

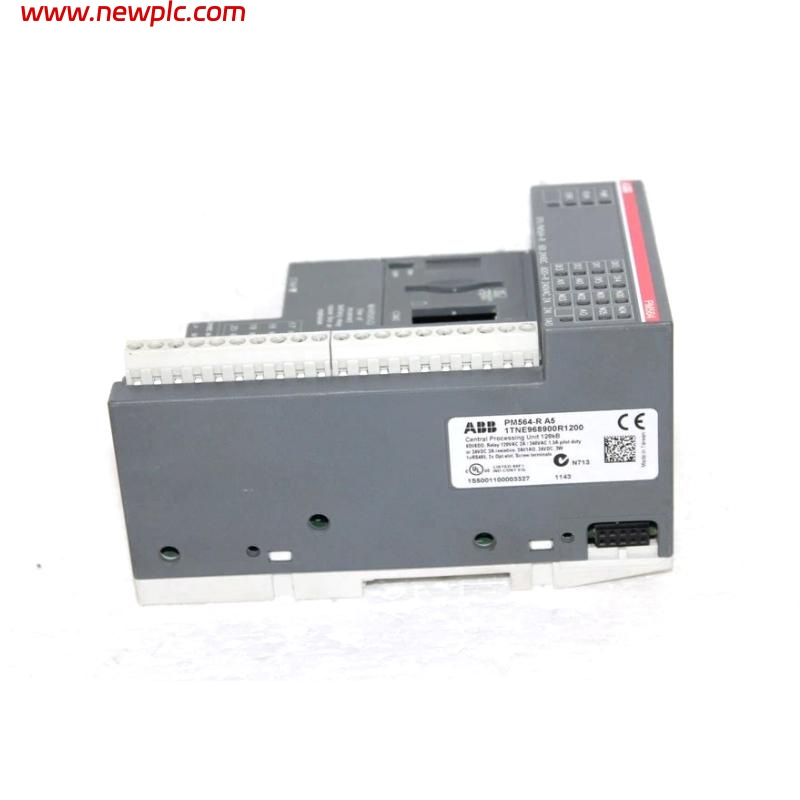

| Product Model | ABB PM564-R 1TNE968900R1200 AC500 PLC Processor Module |
| Power Supply | 100–240 V AC |
| Memory | 128 kB Flash EPROM |
| Digital Inputs (DI) | 6 |
| Digital Outputs (DO) | 6 (Relay type) |
| Analog Inputs (AI) | 2 |
| Analog Outputs (AO) | 1 |
| Processor Type | 32-bit Freescale ARM Processor |
| Processor Clock Speed | 50 MHz |
| Programming Languages | IL, FBD, LD, SFC, ST, CFC |
| Program Memory | 128 kB Flash EPROM |
| Data Memory (VAR) | 10 kB |
| Data Buffering | Flash memory |
| Cycle Time (Binary/Word/Floating Point) | 0.08 ms / 0.1 ms / 1.2 ms |
| Interfaces | I/O Bus, COM1 (RS-485), COM2 (optional) |
| Mounting | Horizontal or Vertical |
| Operating Temperature | 0 °C to +60 °C (horizontal) / +40 °C (vertical) |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | Max. 95%, non-condensing |
| Degree of Protection | IP20 |
| Dimensions | 74 × 135 × 82 mm |
| Weight | 0.23 kg |
FAQ
FAQ
Q1: What is the power supply voltage range for the PM564-R module?
A1: The power supply voltage range is 100–240 V AC.
Q2: How many digital inputs and outputs does the PM564-R have?
A2: It has 6 digital inputs and 6 digital outputs, with relay-type outputs.
Q3: Does the PM564-R support analog inputs and outputs?
A3: Yes, it supports 2 analog inputs and 1 analog output.
Q4: What processor does this module use?
A4: It uses a 32-bit Freescale ARM processor running at 50 MHz.
Q5: What is the operating temperature range of the PM564-R?
A5: The operating temperature range is 0–60 °C when mounted horizontally, or 0–40 °C when mounted vertically.
Q6: Does the module include a real-time clock?
A6: The real-time clock is optional and can be added with an accessory.
Q7: What is the program memory size of the PM564-R?
A7: The program memory is 128 kB Flash EPROM, with 10 kB data memory.
Q8: What is the protection level and mounting method of the module?
A8: The protection level is IP20, and it supports both horizontal and vertical mounting.
