Technical Specifications
| Parameter | Description |
|---|---|

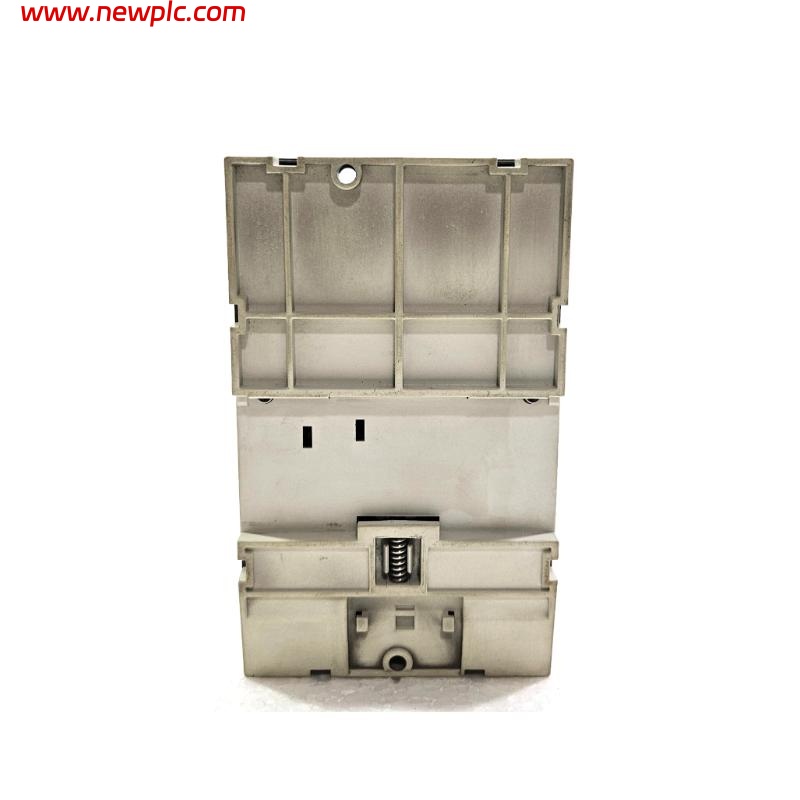

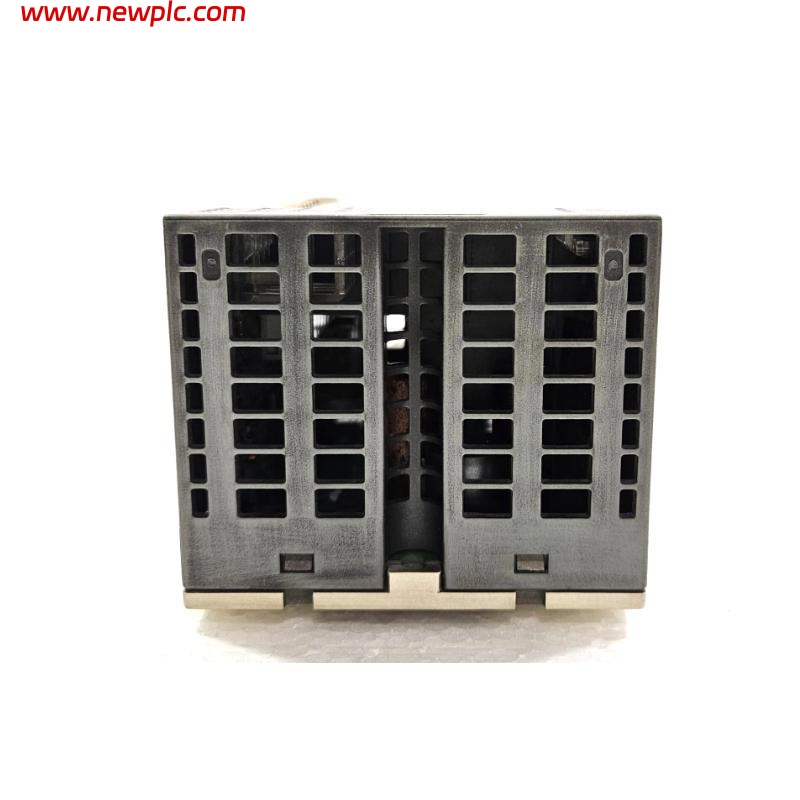

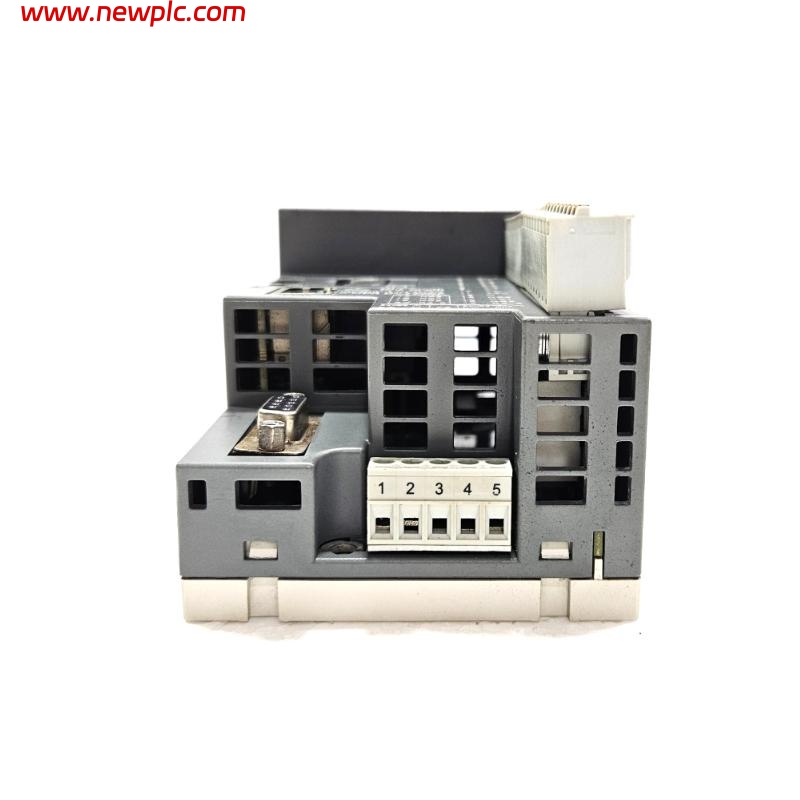

| Product Name | ABB PM564-RP-ETH |
| Product Code | 1SAP121000R0071 |
| Product Series | AC500 |
| Type | Programmable Logic Controller (PLC) |
| CPU Performance | 1 MB user program memory, 1 MB data memory |
| Communication Interfaces | 1x Ethernet, 1x RS485/RS232 (selectable), USB |
| Digital Inputs/Outputs | 14 DI / 10 DO |
| Power Supply Voltage | 24 V DC |
| Program Execution Time | 0.02 μs per instruction |
| Expandability | Up to 10 modules (via S500 I/O modules) |
| Real-Time Clock | Integrated |
| Protection Class | IP20 |
| Mounting Type | DIN rail mounting |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -40°C to +70°C |
| Certifications | CE, UL, cUL, RoHS |
| Dimensions (W × H × D) | 74 × 135 × 82 mm |
| Weight | 0.295 kg |
FAQ
FAQ
Q1: What communication interfaces does the ABB PM564-RP-ETH support?
A1: It provides one Ethernet port, one selectable RS485/RS232 serial port, and one USB port.
Q2: What is the program execution time for this PLC?
A2: The average execution time is 0.02 microseconds per instruction.
Q3: Does it include a real-time clock?
A3: Yes, it has an integrated real-time clock.
Q4: How many expansion modules can it support?
A4: It supports up to 10 expansion modules using the S500 I/O series.
Q5: How is the unit mounted?
A5: It is mounted using a standard DIN rail.
Q6: What is the operating temperature range?
A6: It operates in environments from -10°C to +60°C.
Q7: Does the unit comply with international certifications?
A7: Yes, it meets CE, UL, cUL, and RoHS certification standards.
Q8: What are the dimensions and weight of the unit?
A8: The dimensions are 74 × 135 × 82 mm, and the weight is 0.295 kg.
